- Place of Origin:
- Zhejiang, China
- Brand Name:
- CMP
- Model Number:
- MP12P/BJ
- Protection Level:
- IP65/IP67
- Max. Current:
- 2A
- Max. Voltage:
- 36V
- Installation diameter:
- 12mm push button switch
- Operation Type:
- Momentary or Latching
- Color of the head:
- Red, White,Green, Blue ,Black,Yellow
- Vibration Resistance:
- 10 to 55HZ,amplitude 1.2mm P-P
- Degree ofProtection:
- >10g
- Electrical Life:
- 200000 operations minimum (at full rated load)
- Mechanical Life:
- Maintained:1000000 Momentary:1000000 Selector:250000
- Soldering Temperature:
- 20W/5 second or 260℃/3 seconds
- Contact configuration:
- 1NO
- Terminal type:
- pin terminal
- Supply Ability:
- 100000 Piece/Pieces per Week push button switch
- Packaging Details
- 1: Neutral packing : plastcic bag for goods +inner box bubble+ inner box+carton
2: Upon customers' request ,but the price is different with neutral packig
3: Carton spec: 29*23*31
4: 50 pcs/box,10box/carton
push button switch
- Port
- Ningbo/Shanghai

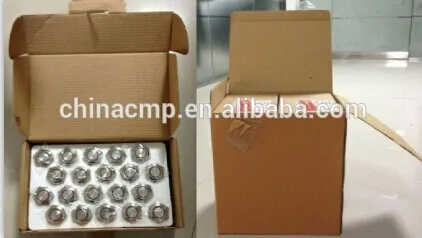

- Picture Example:
![package-img]()
Product Description:
Product | Push Button switch |
Item | MP12P/BJ |
Thread Diameter: | 12mm |
Operation type | Momentary |
| |
Housing material | Plastic or metal |
Contact configuration | 1NO (spst switch) |
Switch rating | 2A/36V AC/DC |
Terminal type | 2 soldering pin |
Contact terminal material | silver plated gold |
Contact | silver plated/silver plated gold (made to order) |
Button type | domed button |
Button color | red,green,white,blue,yellow,orange,black |
LED color | - |
LED voltage | - |
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥1000MΩ |
Dielectrical Intensity | 2000VAC |
Vibration Resistance | 10~55HZ, amplitude 1.2mm p-p |
Mechanical life: | ≥500,000 cycles |
Electrical Life: | ≥200,000 cycles |
Operating Temp | -20ºC~+55ºC |
Torque | 5-14Nm |
Operation Pressure | 5N |
Operation Travel | About 2.5mm |
Protection Level | IP65/IP67 IK10 |
Soldering Temperature | 20W/5 seconds or 260 °C/3 seconds |
Certificate | CE,TUV,Rohs |
