- Place of Origin:
- Zhejiang, China
- Brand Name:
- CMP
- Model Number:
- MP022S/F11
- Protection Level:
- IP67,IK10
- Max. Current:
- 5A
- Max. Voltage:
- 250V AC/DC
- Installation diameter:
- 22mm ( 16mm 19mm 22mm 25mm 28mm 30mm)12v waterproof push button switch
- Body Material:
- Stainless steel
- Electrical Life:
- 200,000 operation minimum(at full rated load)
- Mechanical Life:
- Maintained:100,0000 Momentary:100,0000 Selector/Keylock:250000
- Contact Material:
- Silver Plated
- Operation type:
- Momentary or Latching
- Contact configuration:
- 1NO 1NC
- The front shape:
- ball,high,flat
- Terminal type:
- pin terminal
- IP degree:
- IP67,IK10
- Supply Ability:
- 100000 Piece/Pieces per Week 12v waterproof push button switch

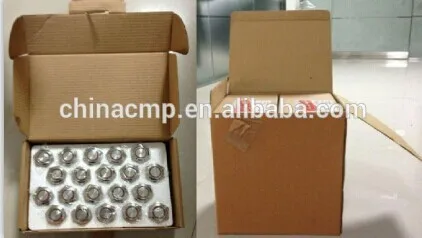

- Packaging Details
- 1: Neutral packing : plastcic bag for goods +inner box bubble+ inner box+carton
2: Upon customers' request ,but the price is different with neutral packig
3: Carton spec: 29*23*31
4: 20 pcs/box,10box/carton
12v waterproof push button switch
- Port
- Ningbo/Shanghai
- Picture Example:
![package-img]()
CMP 22mm vandal resistant stainless steel momentary or latching 12v waterproof push button switch
Product Description:
Product | Push Button switch |
Item | MP22S/F11-E |
Thread Diameter: | 22mm |
Operation type | Momentary |
| Latching |
Housing material | Stainless steel/Chromium plated brass,Aluminum,Nickel plated brass |
Contact configuration | 1NO1NC (spdt switch) |
Switch rating | 5A/250V AC/DC |
Terminal type | 6 soldering pin |
Contact terminal material | silver plated gold |
Contact | silver plated/silver plated gold (made to order) |
Button type | flat button with ring light |
Button color | silver or made to order |
LED color | red,green,white,blue,yellow,orange,bi-color |
LED voltage | 2V/6V/12V/24V/220V (made to order) |
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥1000MΩ |
Dielectrical Intensity | 2000VAC |
Vibration Resistance | 10~55HZ, amplitude 1.2mm p-p |
Mechanical life: | ≥500,000 cycles |
Electrical Life: | ≥200,000 cycles |
Operating Temp | -20ºC~+55ºC |
Torque | 5-14Nm |
Operation Pressure | 5.5N |
Operation Travel | About 2.5mm |
Protection Level | IP65/IP67 IK10 |
Soldering Temperature | 20W/5 seconds or 260 °C/3 seconds |
Certificate | CE,TUV,Rohs |
Length :momentary 38.5mm, latching 43mm
(1) Our factory is specialized in the production of switch buttons made of stainless steel or copper plated chromium or plastic.
(2) And our products are exported to Europe, the USA, the Middle East, Asia, etc. Our products have passed TUV,CE. We also offer OEM and ODM services.
(3) Our products are widely used in varies types of control desks, control boxes (cabinets), power distribution boxes (cabinets), meter boxes (cabinets), household appliances, security systems, etc.
(4) You can customize the laser marking and body color.
