- Place of Origin:
- Zhejiang, China
- Brand Name:
- CMP
- Model Number:
- MP19S/H20
- Protection Level:
- IP68,IK10
- Max. Current:
- 5A
- Max. Voltage:
- 250V AC/DC
- Installation diameter:
- 19mm ip68 switch
- The Body Material:
- Stainless steel
- Electrical Life:
- 200,000cycles
- Mechanical Life:
- 100,0000 cycles
- Contact Material:
- Silver Plated Gold
- The front shape:
- ball,high,flat
- Contact configuration:
- 1NO
- Terminal type:
- wiring terminal
- Operation type:
- momentary
- IP degree:
- IP68,IK10
- Supply Ability:
- 60000 Piece/Pieces per Week ip68 switch

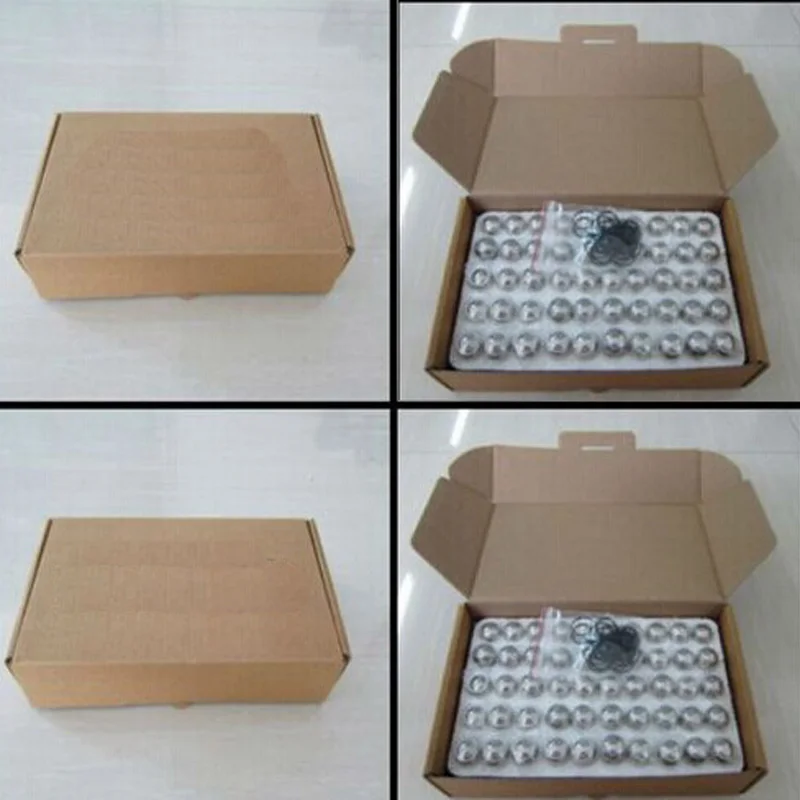

- Packaging Details
- Stand Exported Packing:
inner bubble box--- inner box---carton (or by your request.)
Size of CTN: 29*23*31 cm
400PCS/CTN
ip68 switch
- Port
- Ningbo/Shanghai
- Picture Example:
ip68 switch
Product Description:
Product | Push Button switch |
Item | MP19S/H20 |
Thread Diameter: | 19mm |
Operation type | Momentary |
|
|
Housing material | Stainless steel/chromium plated brass |
Contact configuration | 1NO (spst switch) |
Switch rating | 5A/250V AC/DC |
Terminal type | 2 screw or soldering pin |
Contact terminal material | silver plated gold |
Contact | silver plated/silver plated gold (made to order) |
Button type | Flat,or Domed,High |
Button color | silver |
LED color | -- |
LED voltage | -- |
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥1000MΩ |
Dielectrical Intensity | 2000VAC |
Vibration Resistance | 10~55HZ, amplitude 1.2mm p-p |
Mechanical life: | ≥500,000 cycles |
Electrical Life: | ≥200,000 cycles |
Operating Temp | -20ºC~+55ºC |
Torque | 5-14Nm |
Operation Pressure | 2.5-4N |
Operation Travel | About 1.8mm |
Protection Level | IP68 IK10 |
Soldering Temperature | 20W/5 seconds or 260 °C/3 seconds |
Certificate | CE,TUV,Rohs |
19mm CMP 1NO momentary stainless steel waterproof ip68 switch(passed TUV,CE,SGS,RoHS)
You can customize the body colour and laser marking.
For example:
We strive to provide excellent customer service. All emails will be answered within 24 hours. If you have any questions, please feel free to contact me.
