- Place of Origin:
- Zhejiang, China
- Brand Name:
- CMP
- Model Number:
- MP016S/F11
- Protection Level:
- IP65/IP67
- Max. Current:
- 3A
- Max. Voltage:
- 250VAC
- Termninal type:
- pin terminal(2*0.5mm)
- Operation type:
- momentary,latching
- Contact configuration:
- 1NO 1NC (SPDT)
- Lamp type:
- power luminous signs,ring led,dot,led
- The front shape:
- flat,high,domed
- IP degree:
- IP65/IP67,IK10
- The crust material:
- stainless steel,chromium/nickel plated brass
- Mechanical life:
- 500000cycles
- Electrical life:
- 200000cycles
- Supply Ability:
- 1000 Piece/Pieces per Day vandal resistant illuminated switch
- Packaging Details
- 1: Neutral packing : plastcic bag for goods +inner box bubble+ inner box+carton
2: Upon customers' request ,but the price is different with neutral packig
3: Carton spec: 29*23*31
4: 40 pcs/box,10box/carton
vandal resistant illuminated switch
- Port
- shanghai/ningbo

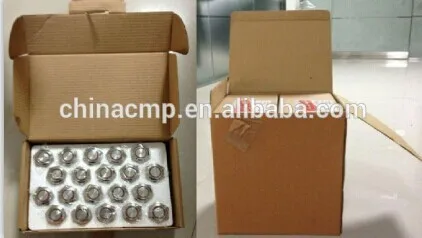

- Picture Example:
![package-img]()
vandal resistant illuminate
16mm waterproof IP67 metal 1NO 1NC power vandal resistant illuminated switch
Product Description:
Product | Push Button switch |
Item | MP16S/F11-EDY |
Thread Diameter: | 16mm |
Operation type | Momentary |
| Latching |
Housing material | Stainless steel/Chromium,nickel plated brass, aluminum,plastic |
Contact configuration | 1NO1NC (spdt switch) |
Switch rating | 3A/250V AC/DC |
Terminal type | 5 soldering pin |
Contact terminal material | silver plated gold |
Contact | silver plated/silver plated gold (made to order) |
Button type | flat or high button with power&ring light |
Button color | silver , black,made to order |
LED color | red,green,white,blue,yellow,orange,bi-color |
LED voltage | 2V/6V/12V/24V/220V (made to order) |
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥1000MΩ |
Dielectrical Intensity | 2000VAC |
Vibration Resistance | 10~55HZ, amplitude 1.2mm p-p |
Mechanical life: | ≥500,000 cycles |
Electrical Life: | ≥200,000 cycles |
Operating Temp | -20ºC~+55ºC |
Torque | 5-14Nm |
Operation Pressure | 2.5-4N |
Operation Travel | About 2.8mm |
Protection Level | IP65/IP67 IK10 |
Soldering Temperature | 20W/5 seconds or 260 °C/3 seconds |
Certificate | CE,TUV,Rohs |
vandal resistant illuminated switch
1: Neutral packing : plastcic bag for goods +inner box bubble+ inner box+carton
2: Upon customers" request ,but the price is different with neutral packig
3: Carton spec: 29*23*31
4: 40 pcs/box,10box/carton vandal resistant illuminated switch
vandal resistant illuminated switch
This is CMP electrical CO.,LTD,is a Science and Technology Industry,we always dedicated to supply the best service to domestic andinternational famous relay company.The factory own arond 3000 squarmeter,there are more than 150 workers,30%of them are thechnical engineer who work for new product R&D and ooling making.Our major product Metal Waterproof Push Button Switch,Metal Waterproof Signal Lamp,Explosion Proof Switch and accessories
