- Place of Origin:
- Zhejiang, China
- Brand Name:
- CMP
- Model Number:
- MP12S/BJ
- Protection Level:
- IP67
- Max. Current:
- 2A
- Max. Voltage:
- 36v
- Diameter:
- 12mm waterproof push button
- Terminal type:
- pin terminal(2*0.8mm),wiring terminal
- Contact configuration:
- 1NO(normally open)
- Operation type:
- momentary
- IP degree:
- IP67,IK10
- Button and Body(mateial):
- stainless steel,copper plating
- Mechanical life:
- 1,000,000cycles
- Electrical life:
- 200,000cycles
- Contact(material):
- silver alloy
- Base(material):
- PBT
- Supply Ability:
- 1000 Piece/Pieces per Day waterproof push button
- Packaging Details
- 1: Neutral packing : plastcic bag for goods +inner box bubble+ inner box+carton
2: Upon customers' request ,but the price is different with neutral packig
3: Carton spec: 29*23*31
4: 50 pcs/box,10box/carton
waterproof push button
- Port
- shanghai/ningbo

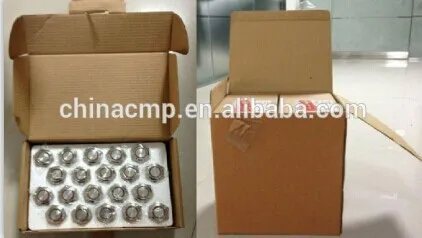

- Picture Example:
![package-img]()
Product Description:
Product | Push Button switch |
Item | MP12S/B10 |
Thread Diameter: | 12mm |
Operation type | Momentary |
|
|
Housing material | Stainless steel/Chromium plated brass,Aluminum,plastic |
Contact configuration | 1NO (spst switch) |
Switch rating | 2A/36V AC/DC |
Terminal type | 2 screw or 2 soldering pin |
Contact terminal material | silver plated gold |
Contact | silver plated/silver plated gold (made to order) |
Button type | domed button |
Button color | silver or plastic red,green,white,blue,yellow,orange,black |
LED color | - |
LED voltage | - |
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥1000MΩ |
Dielectrical Intensity | 2000VAC |
Vibration Resistance | 10~55HZ, amplitude 1.2mm p-p |
Mechanical life: | ≥500,000 cycles |
Electrical Life: | ≥200,000 cycles |
Operating Temp | -20ºC~+55ºC |
Torque | 5-14Nm |
Operation Pressure | 2.5-4N |
Operation Travel | About 2.5mm |
Protection Level | IP65/IP67 IK10 |
Soldering Temperature | 20W/5 seconds or 260 °C/3 seconds |
Certificate | CE,TUV,Rohs |
All product are widely used for electric appliance,machine and industrial auto-mation equipment,Military field. waterproof push button
1: Neutral packing : plastcic bag for goods +inner box bubble+ inner box+carton
2: Upon customers" request ,but the price is different with neutral packig
3: Carton spec: 29*23*31
4: 50 pcs/box,10box/carton waterproof push button
This is CMP electrical CO.,LTD,is a Science and Technology Industry,we always dedicated to supply the best service to domestic andinternational famous relay company.The factory own arond 3000 squarmeter,there are more than 150 workers,30%of them are thechnical engineer who work for new product R&D and ooling making.Our major product Metal Waterproof Push Button Switch,Metal Waterproof Signal Lamp,Explosion Proof Switch and accessories
