- Place of Origin:
- Zhejiang, China
- Brand Name:
- CMP
- Model Number:
- MP030S/F11
- Protection Level:
- IP67,IK10
- Max. Current:
- 5A
- Max. Voltage:
- 250V
- Installation diameter:
- 30mm push button
- The Body Material:
- Stainless steel
- IP Degree:
- IP67,IK10
- Electrical Life:
- 50,000cycle
- Mechanical Life:
- Maintained:100,0000 Momentary:100,0000 Selector/Keylock:250000
- Contact Material:
- Silver Plated Gold
- The front shape:
- high,flat,ball
- Contact configuration:
- 1NO 1NC or 2NO 2NC
- Operation type:
- momentary or latching
- Terminal type:
- pin terminal
- Supply Ability:
- 60000 Piece/Pieces per Week spst push button
- Packaging Details
- 1: Neutral packing : plastcic bag for goods +inner box bubble+ inner box+carton
2: Upon customers' request ,but the price is different with neutral packig
3: Carton spec: 29*23*31
4: 8 pcs/box,10box/carton
30mm push button
- Port
- Ningbo/Shanghai

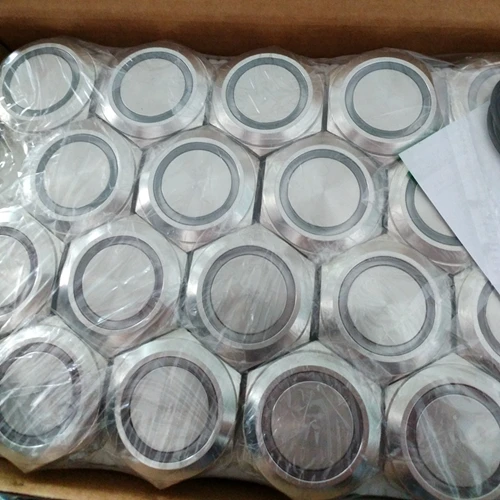

- Picture Example:
![package-img]()
Product Description:
CMP 30mm waterproof momentary or latching stainless steel SPDT or DPDT push button switch
30mm Push Button Switch
| Thread Diameter: | 30mm |
| Button Diameter: | 24.5mm |
| Operation type: | momentary (also have latching type) |
| Housing material: | Stainless steel (or other, contact me) |
| Terminal type: | soldering pin,(or solder with wires,socket) |
| Head type: | High head,Flat head, with LED or not |
| LED color: | red,green,white,blue,yellow,orange,bi-color, |
| LED voltage: | LED 3V/6V/12V/24V/48V/110V/220V (made to order) |
| Contact configuration: | 2NO2NC (DPDT switch) or 1NO1NC |
| Switch rating: | 5A/250V |
| Mechanical life: | 500,000 Cycles |
| Electrical Life: | 200,000 Cycles |
| Operating Temp: | -20ºC~+55ºC |
(1) Our company is specialized in the production of switch buttons made of stainless steel ,copper plated chromium or plastic.
(2) And our products are exported to Europe, the USA, the Middle East, Asia, etc. Our products have passed TUV,CE. We also offer OEM and ODM services.
(3) You can customize the laser marking and body color.
How to order samples and smaller order ?
1.neutral packing:Plastic bag for goods ,inner bubble box, inner box, carton,Or by your request.
2.shipping: DHL,EMS,TNT,FEDEX,(we will offer international express with discount freight ) .
3. delivery time: Samples and small order ,delivery time within 3-7 days.Big order 10-15days.
4.payment term: As we known paypal is fast way for payment .T/T & western union payment are as same as paypal. A
5.feedback: If you have any questions, please feel free to contact me.
spst push button
We strive to provide excellent customer service. All emails will be answered within 24 hours. If you have any questions, please feel free to contact me.
