- Bucket capacity:
- 0.025m3
- Operating Weight:
- 800kg
- Rated Speed:
- 2km/h
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support, Online support, Free spare parts
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Condition:
- New
- Moving Type:
- Crawler Excavator
- Maximum Digging Height:
- 2490mm
- Maximum Digging Depth:
- 1400mm
- Certification:
- ISO
- Engine Capacity:
- 0.499L
- Maximum gradeability:
- 25°
- Working device type:
- backhoe
- Rated output power/Rotating speed:
- 8.6kw/r/3600min
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 285X90X150 cm
- Single gross weight:
- 910.0 kg
- Package Type:
- Standard exported package 12 sets in 20GP container
- Picture Example:
- Lead Time:
Quantity(Set) 1 - 1 2 - 3 4 - 10 >10 Est. Time(days) 3 5 15 To be negotiated

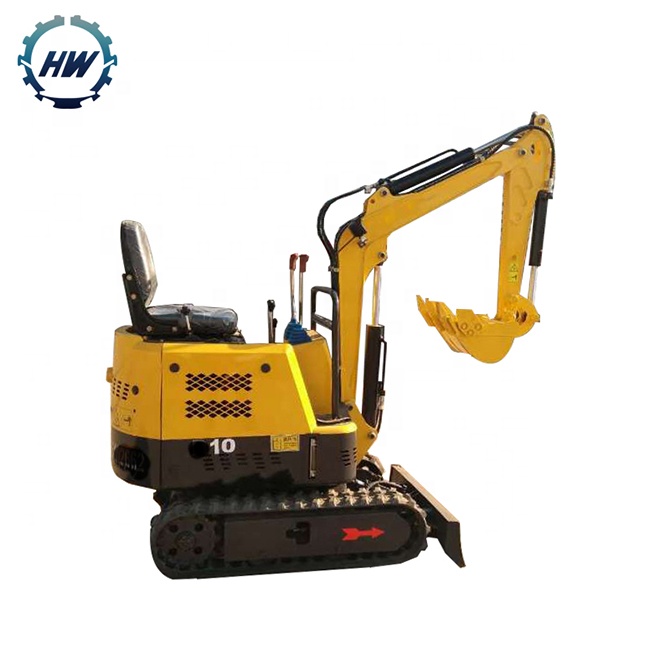

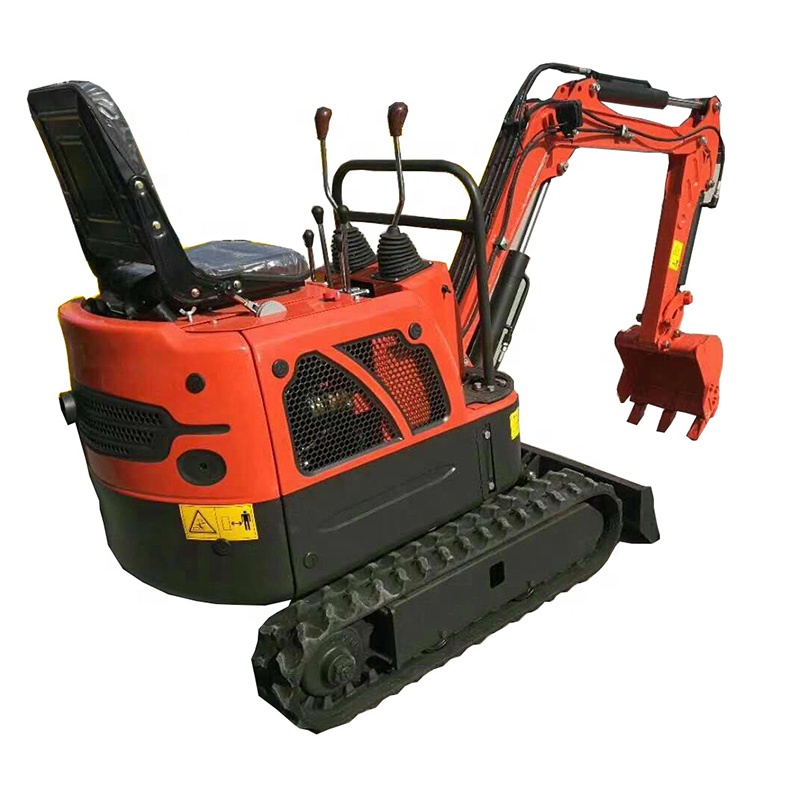

China excavator price mini crawler excavator
Suitable for vegetable shed loose land, the municipal department of landscaping, orchard nursery trees digging, crushing of concrete pavement,sand and gravel mixing, small space construction operations, the use of quick replacement joints, optional rotary drilling, hammer, Loading bucket,grab and other accessories, reduce maintenance and operating costs, improve the degree of mechanization, small investment and high return.
Machine flexible and practical, economical environmental protection and energy saving, is a good helper for farmers, vegetable farmers, garden municipal workers.
1, With excellent work efficiency and excellent cost performance;
2, Standard bulldozers can be flat site, earthwork backfill, increase machine stability;
3, Simple operation, small and flexible, easy to transport, can work in a small venue, especially suitable for in the orchards such as kiwi, vineyards,oranges, navel orange species value, trenching, fertilization, weeding;
4, With digging, crushing, hook clearance, drilling, multi-purpose earthmoving, quick replacement of accessories, machine utilization greatly increased;
5, Boom sideshifter: The front of the machine is equipped with boom sideshift device. The boom can be tilted 90 degrees to the left and 50 degrees to the right so as to realize the direct digging work similar to the wall-root zone without frequent movement of the fuselage. More suitable for small site operations.
Application: | Universal excavator | Rated power: | 20kw |
Model: | HW08 | Total Weight: | 910kg |
Scraper bucket: | Shovel excavator | Maximum mining depth: | 1400mm |
Way of walking: | Crawler excavators | Maximum vertical mining depth: | 1375mm |
Bucket capacity: | Standard | Maximum mining width: | 2400mm |
Displacement: | 6.8ML/R | Maximum ground mining radius: | 2400mm |
Track Height: | 320mm | Maximum unload height: | 1750mm |
Track width: | 170mm | Maximum mining height: | 2490mm |
Gyration speed: | 1190mm | Minimum radius of revolution: | 1190mm |
Transmission mode: | Hydraulic pressure | Maximum digging depth of earth shovel: | 175mm |
Climbing ability: | 36degree | Maximum lift height of earth shovel: | 325mm |
Revolving radius of the tail end of the platform: | 733mm | Bucket capcity: | 0.025m3 |
Tread: | 770mm | Platform clearance: | 380mm |
Chassis width: | 896mm | In stock: | Yes |
dimension | 2770*896*1490mm |
