- Dimension(Long * Breadth * High):
- 5300*1780*2700
- Warranty:
- 1 Year
- After-sales Service Provided:
- Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
- Condition:
- New
- Brand Name:
- HW
- Place of Origin:
- Shandong, China
- Type:
- Front Loader
- Moving Type:
- Wheel Loader
- Certification:
- CE ISO
- Moving type:
- wheel loader
- Rated load capacity:
- 1800kg
- Dump distance:
- 750mm
- Wheel base:
- 2600mm
- Dump height:
- 2900mm
- turning angle:
- 35+_1
- Capacity of load bucket:
- 0.55M3
- Minimum turning radius:
- 4400
- Engine model:
- L28M
- Rated speed (r/min):
- 2300
- Supply Ability:
- 50 Set/Sets per Month wheels loader
- Packaging Details
- Standard export package or as your requirement ,for New Mini loader machine
- Port
- Qingdao Dalian Shanghai Tianjin
- Lead Time:
Quantity(Sets) 1 - 1 >1 Est. Time(days) 3 To be negotiated

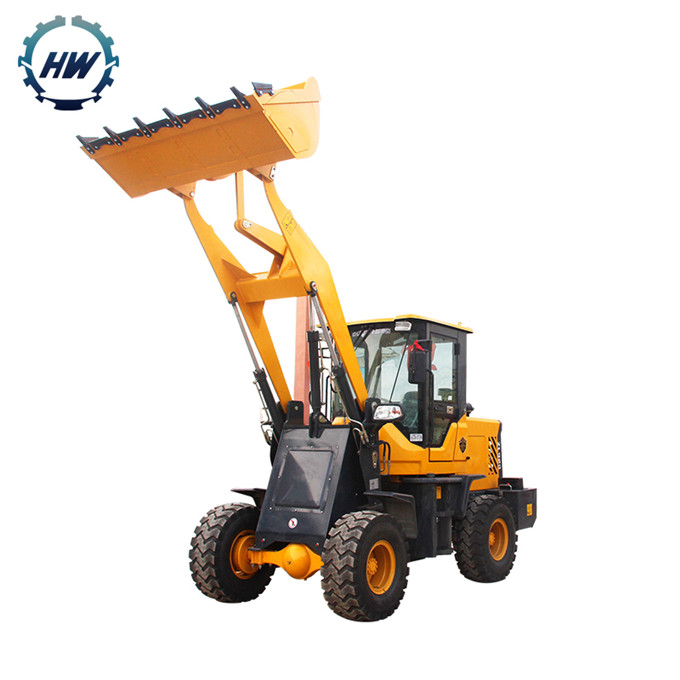

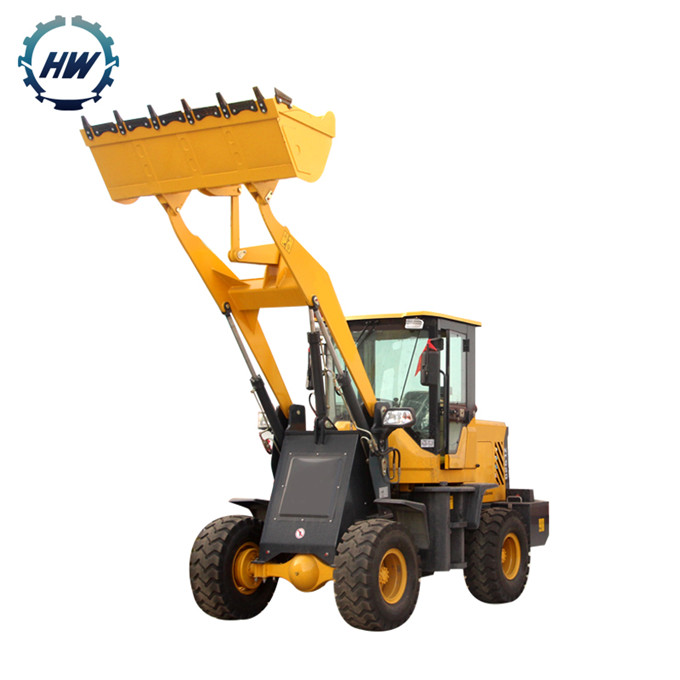

The loader machine adopts the complete machine is rationally distributed and compact; it is comfortable and convenient to handle,the turning radius is small and the cost performance is high. It is widely used in municipal administration, the construction of projects such as the building, the oil field, water conservancy,the forest farm, the military project, and so on.
It also can be used in carrying and leveling and can carry on the flexible and swift homework to scarp heap and waste residue of the large and medium-sized enterprise.
Match with high quality engine, low, low blow off of noise, driving force forceful, twist from when reserve is big. The driving force loader special use fixing an axis changes the gear speed change box, structure is compact, drive is efficient, structure stiffness is big, life-span is long.
The dyadic center equidistance hinge joint fleet of carriage, makes turn the radius is small, the expedient function is good.The drive"s cab, wide vision, air-conditioning, operation environment sealing off subtraction vibrating, allocating are comfortable, safe. Various machines and tools such as may select and use for –in-one bucket, breaking a hammer to pieces, the function are especially all in readiness.
SPECIFICATIONS FOR WHEEL LOADER | |||
Model | HW-928 | Total time | 12s |
Rated capacity | 0.7m3 | Max. walking speed | 36km |
Rated load | 1800kg | Max. climbing angle | 29o |
Overall size | 5300*1780*2700mm | Turning angle | 35o |
Dump height | 3000mm | Min. clearance ground | 255mm |
Dump distance | 800mm | Engine power | 38kw/rpm |
Wheel base | 1400mm | Tyre size | 205-16 |
Tread | 2210mm | Total machine weight | 3000kg |
Max.breakout force | 36KN |
