Home > Products > Earthmoving machinery 800kg excavator Crawler Excavator mini excavator
Earthmoving machinery 800kg excavator Crawler Excavator mini excavator
Click on the image to view the original image
Product: views:6Earthmoving machinery 800kg excavator Crawler Excavator mini excavator
Branch: HW
Size: 3X1X2 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-17 05:30
  Negotiated
Product Details
Overview
Quick Details
Bucket capacity:
0.025cbm/120kg
Operating Weight:
800kg
Rated Speed:
0-30km/h
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts, Engineers available to service machinery overseas
Applicable Industries:
Farms, Home Use, Construction works
Place of Origin:
Shandong, China
Brand Name:
HW
Condition:
New
Moving Type:
Crawler Excavator
Maximum Digging Height:
2600mm
Maximum Digging Depth:
1800mm
Max Digging Radius:
3915mm
Certification:
CE ISO
Hydraulic Cylinder Brand:
Parker
Hydraulic Pump Brand:
Parker
Hydraulic Valve Brand:
Eaton
Engine Brand:
YANMAR
Product name::
China mini micro excavator prices for sale
Application::
Building Bridge
Operating weight::
800kg
Capacity of digger bucket::
0.025cbm/120kg
System working pressure ::
20mpa
Engine::
8.2kw/1800r/min
Displacement:
6.8ml/r
Chassis width:
896 mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
3X1X2 cm
Single gross weight:
1.0 kg
Package Type:
Wooden case
Picture Example:
package-img
package-img
Lead Time:
Quantity(Set)1 - 1>1
Est. Time(days)5To be negotiated
Product Description

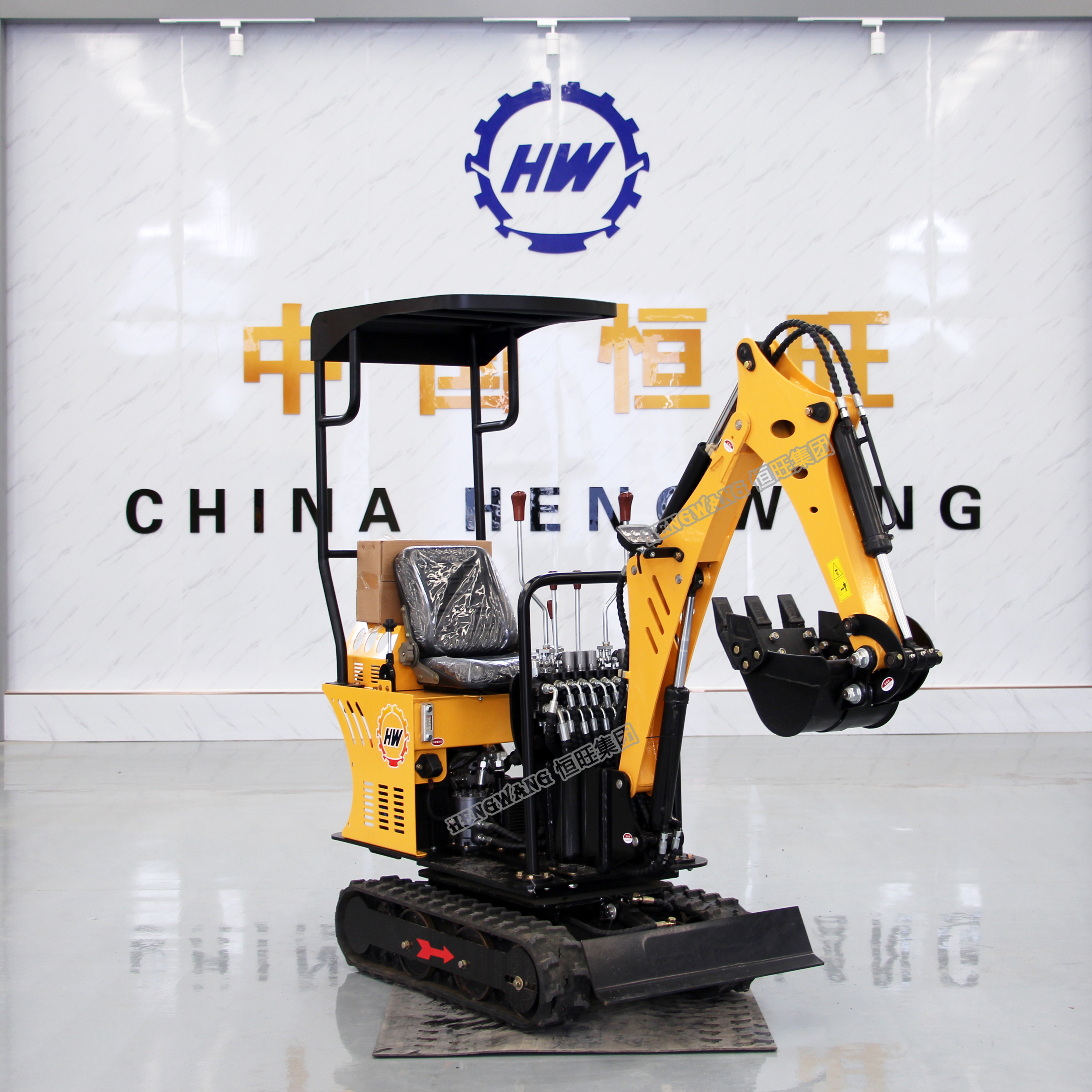

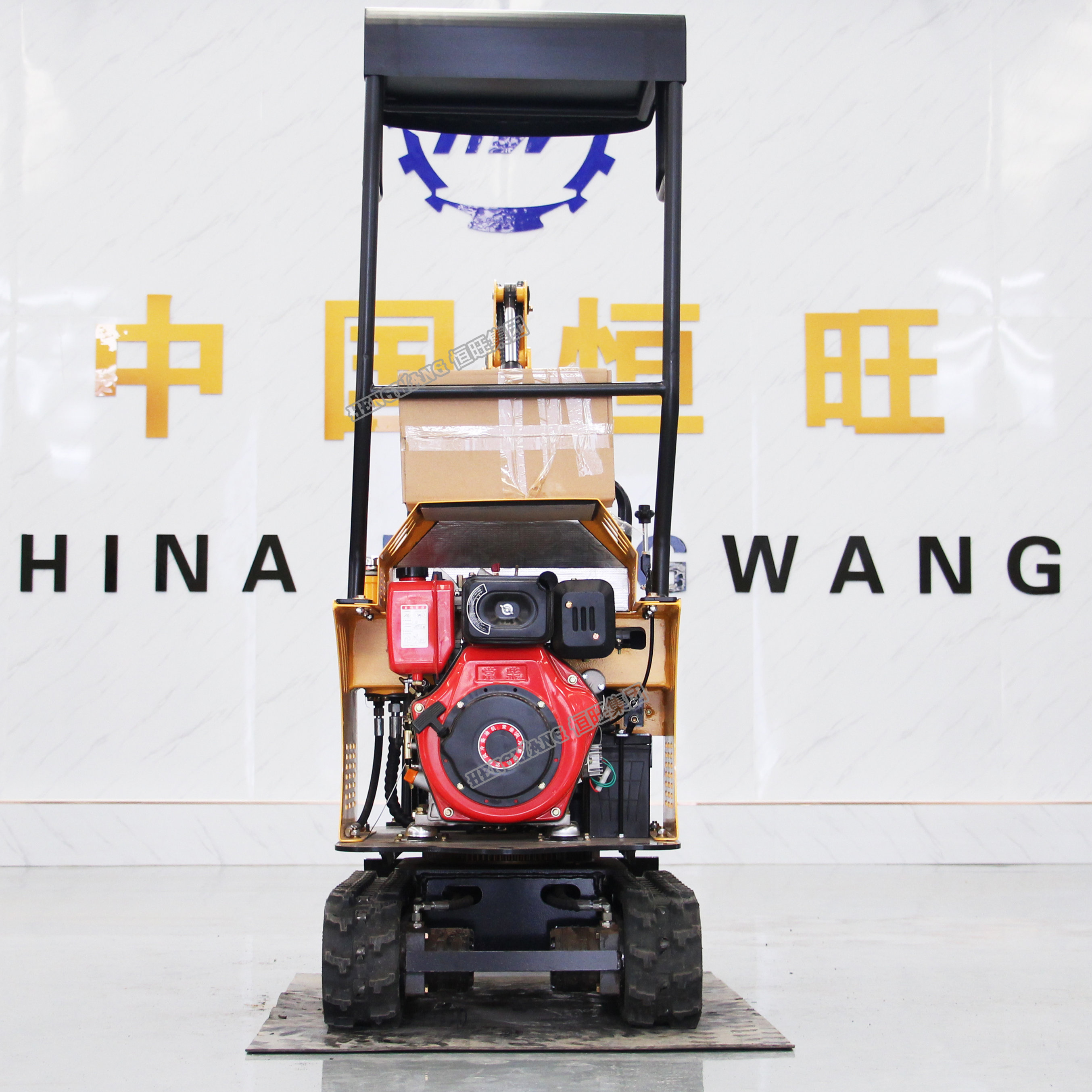

HW 0.8T MINI EXCAVATOR (HW-W08)

FEATURES:

This mini excavator has the advantages of flexible and practical, high configuration, high performance, low oil consumption, beautiful appearance and wide application.Suitable for vegetable greenhouses loose,landscaping of municipal departments, orchard nursery tree digging, concrete pavement broken, sand and stone material mixing and small space construction operations,reducing maintenance and operating costs, improving the degree of mechanization.

Note: HW-W08 is the First from left in the picture below

HW-W08"S  PARAMETERS
Operating Weight
800kg
Bucket Capacity
0.025 m³
Bucket Width
400 mm
Travel Speed
1.5 km/h
Engine Power
8.2 kw
Engine Rated Speed
3600 rpm
Engine Details
Diesel, 1-Cylinder, 4-Stroke, Air Cooling, Direct Injection
Broke * Stroke
92*75 mm
Track Height
320 mm
Displacement
0.499 L
Max. Dig Radius at Groundline
2850 mm
Fuel Consumption
≤280 g / kw.h
Max. Dig Depth
1650 mm
Dimensions
2770 * 896 * 1490 mm
Max. Vertical Straight Dig Depth
1375 mm
Wheel Tread
910 mm
Max. Dig Height
2510 mm
Track Length
1230 mm
Max. Dump Height
1750 mm
Upper Structure Ground Cleatance
380 mm
Backfill Blade Rise above Ground
345 mm
Tail Swing Radius
784 mm
Backfill Blade Max. Dig Depth
255 mm
Underpan Width
896 mm
Min. Turn Radius
1230 mm
Detailed Images


HW Excavator Family

HW-W08

Operating Weight:800KG

Bucket Capacity:0.02CBM

Engine Power:8.2KW

Max. Dig Depth:1550mm

Max. Dump Height:1750mm

Min. Turn Radius:1100mm

HW-W10

Operating Weight:1300Kg

Engine Power:8.6KW
Bucket Capacity:0.025CBM
Max. Dig Depth:1650mm
Max. Dump Height:1850mm

Min. Turn Radius:1330mm

HW-W13

Operating Weight:1300Kg
Engine Power:13KW
Bucket Capacity:0.03CBM
Max. Dig Depth:1850mm
Max. Dump Height:1950mm
Min. Turn Radius:1450mm

HW-W16

Operating Weight:1600Kg
Engine Power:16KW
Bucket Capacity:0.04cbm
Max. Dig Depth:2150mm
Max. Dump Height:1950mm
Min. Turn Radius:1450mm

HW-W20

Operating Weight:2000KG
Engine Power: 20KW
Bucket Capacity:0.05CBM
Max. Dig Depth:2500mm
Max. Dump Height:2150mm
Min. Turn Radius:1560mm
