Home > Products > Hand hydraulic pressure forklift/innolift stacker

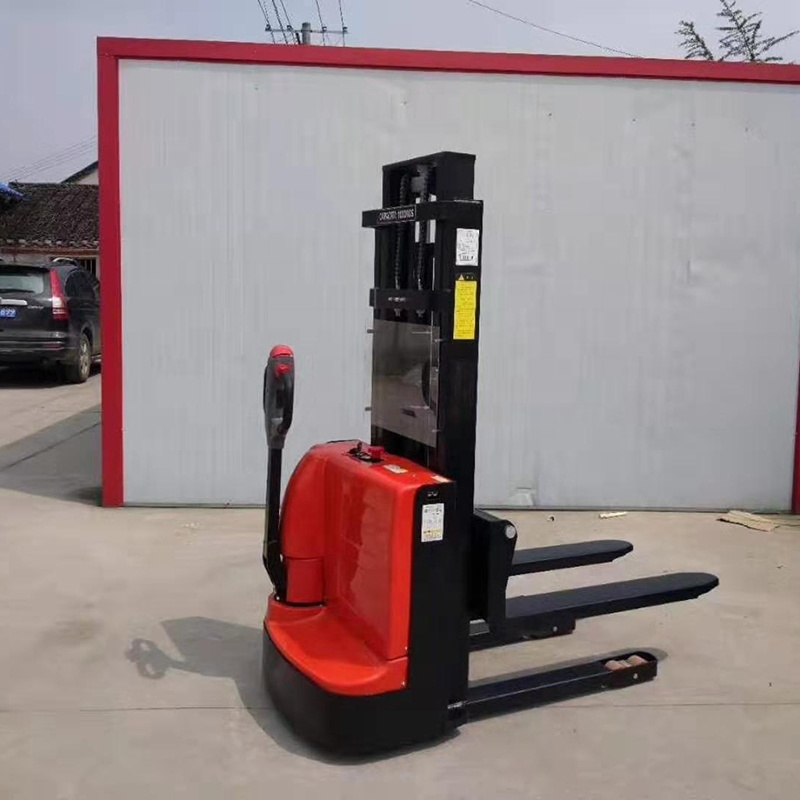

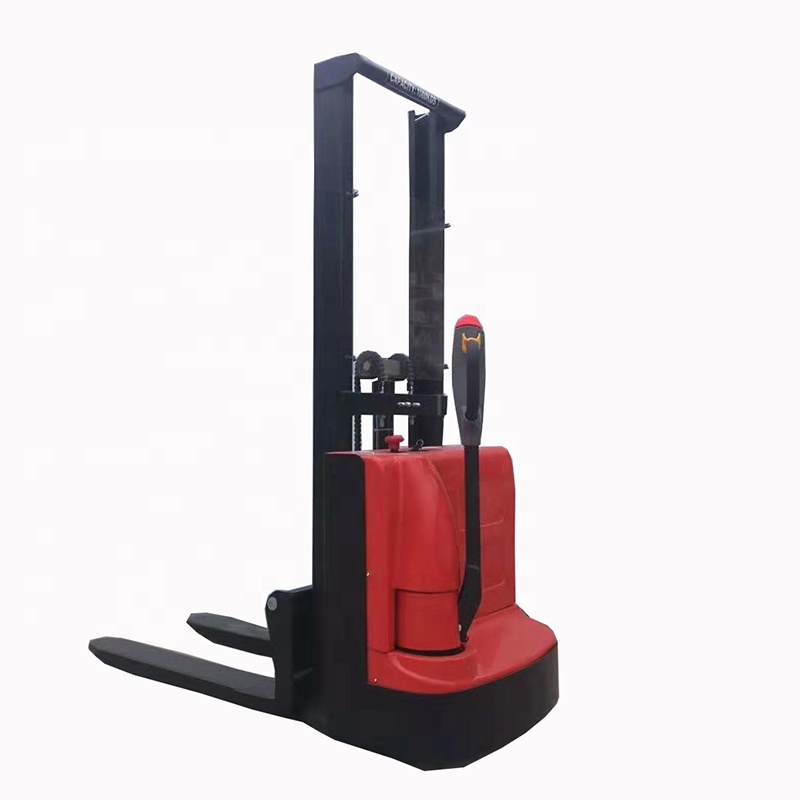

Hand hydraulic pressure forklift/innolift stacker
Click on the image to view the original image
Product： views：6Hand hydraulic pressure forklift/innolift stacker
Branch： HW
Type： Powered Pallet Truck
Size： 55X45X30 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:30
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Farms, Home Use, Construction works , Advertising Company
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HW
Type:
Powered Pallet Truck
Power Souce:
DC Motor
Max. Lifting Height:
1600mm
Min. Lifting Height:
85mm
Fork Length:
1150mm
Fork Width:
175mm
Overall Dimensions:
2045mm*1270mm*1800mm
Certification:
CE/ISO9001
Warranty:
1 Year
After-sales Service Provided:
Online support, Overseas third-party support available
Hoisting height:
1.6m~5m
Battery:
24V/210Ah

Packaging & Delivery

Selling Units:
Single item
Single package size:
55X45X30 cm
Single gross weight:
68.0 kg
Package Type:
Packing in standard wooden box.
Lead Time:
Quantity(Unit)1 - 30>30
Est. Time(days)7To be negotiated
Video Description
Product Description

We have electric pallet truck,electric stacker,counterbalanced electric stacker,electric stacker with wide legs,electric reach stacker,electric reach forklift truck stand-on,electric reach forklift truck seated,
The following type is the description forfull electric forklift truck , full electric stacker,etc.

1.All electric forklift stacker refers to electricity for homework, most are battery to work.
2.And the battery is one of the battery, its role is to be able to keep the limited electricity used in the right place.
3.Its working principle is to convert chemical energy into electricity.
4.All electric forklift battery built-in also is this kind of battery.Hand hydraulic pressure forklift/innolift stacker

SPECIFICATIONS FOR  HYDRAULIC FORKLIFT
MODEL
HW20-16A
HW20-30A
HW20-45A
HW20-50A
Max loading capacity
                                                                                       2000Kg
Capacity on the top
1500kg
1000kg
200kg
100-200kg
Max lifting height
1600mm
3000mm
4500mm
5000mm
Fork Length
                                                                                       1150mm
Lowest height
                                                                                        86mm
Fix leg length
875mm
Turning radius
1460mm
Battery
24V/210Ah
24V/240Ah
Controller
24V/200A
Charger
24V/30A
Lifting pump station
Power: 3kw Lifting speed :Empty/Full:150/105mm/s
Descending speed :Empty/Full:95/100mm/s
Driving motor
Power: 1.2-1.5kw.
Speed: Empty/Full:5.5/5.2km/h
Charged working time
5h
Weight
809kg
901kg
924kg
943kg
