Home > Products > Trailer Mounted Hydraulic Mast Portable LED Light Tower
Trailer Mounted Hydraulic Mast Portable LED Light Tower
Click on the image to view the original image
Product: views:6Trailer Mounted Hydraulic Mast Portable LED Light Tower
Branch: HW
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-17 05:30
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shandong, China
Light Source:
LED
Input Voltage(V):
220v/380v
Lamp Luminous Flux(lm):
300
CRI (Ra>):
3
Working Temperature(℃):
13 Hours
IP Rating:
IP65
Certification:
RoHS, FCC, ETL
Warranty(Year):
1
Brand Name:
HW
Model Number:
HW-140
Application:
Sports Stadiums, Lighting Controller, IOT, Voltage Controller, Filament, HOTEL, Garden, Residential, Thermal Controller, Collector Controller, Off-Grid Solar System, Wind Controller, Pelletizing, Electrocar, LANDSCAPE, ROAD
Power Supply:
DC, Electric, AC
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case or according to customers' requirements
Port
Qingdao or any port in China
Lead Time:
Quantity(Sets)1 - 1 >1
Est. Time(days)5To be negotiated
Product Description

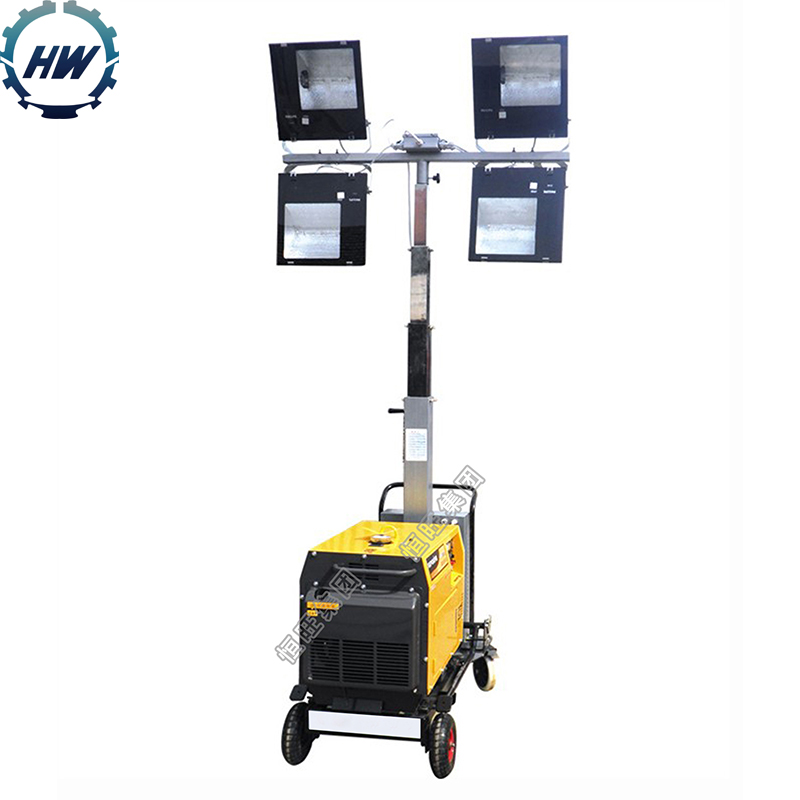

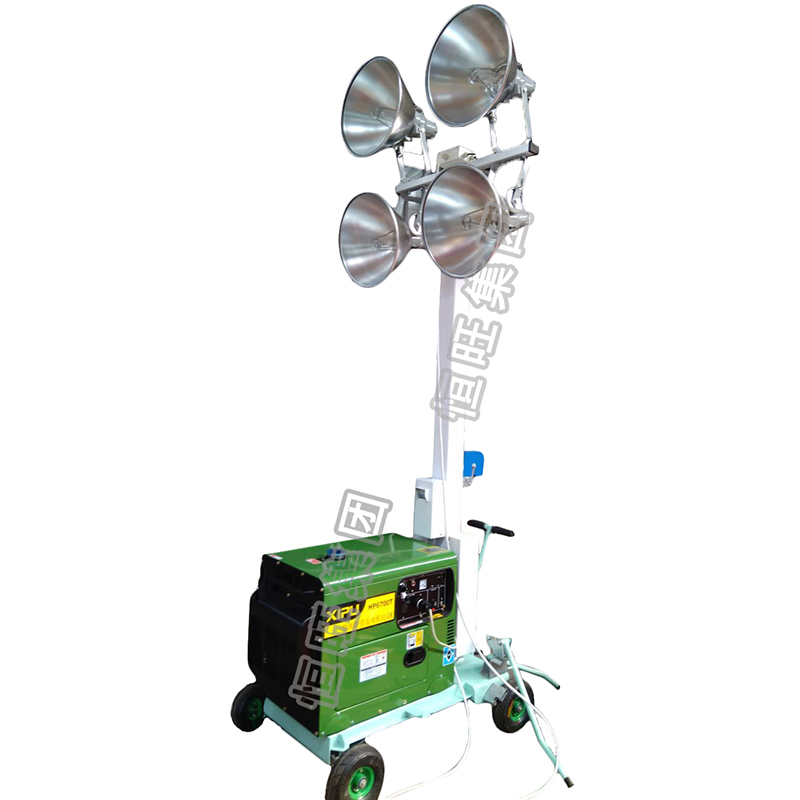

HW LIGHT TOWER

Vehicle mounted light tower is mainly used in outdoor operations, emergency rescue, road maintenance, and emergency lighting. Lifting methods are divided into three categories: pneumatic lift, hydraulic lift, and hand lift. Lighting angles are divided into: remote control of the transport platform up and down, left and right 270 degrees of rotation, and hand-controlled lighting up and down, left and right illumination angle. Move mode: mainly install a base plate under the generator and then fix the four wheels, which is easy to carry and move.

This vehicle mounted light tower applicable to a variety of indoor and outdoor workplaces. China"s coal industry, PetroChina, Sinopec, CNOOC, power, metallurgy, railways, iron and steel, ships, aerospace, public security fire, chemical, government departments and large corporate lighting needs. Portable mobile led light tower has two power,you can choose diesel engine or gasoline.

SPECIFICATIONS FOR HW LIGHT TOWER
Model
HW-400A
HW-400B
HW-1000A
HW-1000B

Generator
EC2500CX/
EC4000CX/
EC4000CX/
EC6500CX/
3GF-LED
3GF-LED
3GF-LED
5GF-LED
Type
Air cooled, 4stroke, OHV gasoline engine
Air cooled, 4stroke, single cylinder direct injection type diesel engine
Generator Types
Single-phase alternator
Rated Power
2.0kw
3.0kw
3.0kw
5.0kw
Rated Voltage
220V
Continuous working time (hour)

13hr

9hr
Oil Tank
15L/12.5L
25L/12.5L
25L/12.5L
25L/16L
Power*lamp
400W*2
400W*4
1000W*2
1000W*4
Stanchion Lamp frame
3 sections
4 sections
4 sections
4 sections
Elevating height
1800-3800mm
1800-4600mm
1800-4600
2000-5600mm
Anti-slope
<10°
Anti-wind
<6
Walk type
Hand push type
Total luminouness
72000Lm
144000Lm
220000Lm
440000Lm
Lamp
Metal halide lamp
Elevating mode
By hand-operated
Net weight(kg)
95/165kg
120/175kg
110/210kg
140/230kg
Detailed Images

Machine Parts

Name: Mobile Light Tower

Brand: HW

Original: China

400-1000 watt metal halide light fixture, high brightness, long service life

Main Features

Name: Mobile Light Tower
Brand: HW
Original: China
Powered by Honda petrol generator/ Mitsubishi petrol generator/ Kipor diesel generator.
Weatherproof switch/control box – ensures the use safely in the rain day.

Machine Parts

Name: Mobile Light Tower
Brand: HW
Original: China
Manual lifting mechnaism, lifting flexible, any height, automatic lock.
Lamp Frame 4 sections elevating.

Main Features

Name: Mobile Light Tower
Brand: HW
Original: China

Certifications
Our Service
Packing & Delivery
Packaging
Size
1100 (L) * 900(W) * 1800 (D)
Weight
230kg



Packaging Details
The normal package is wooden box(Size: L*W*H).
