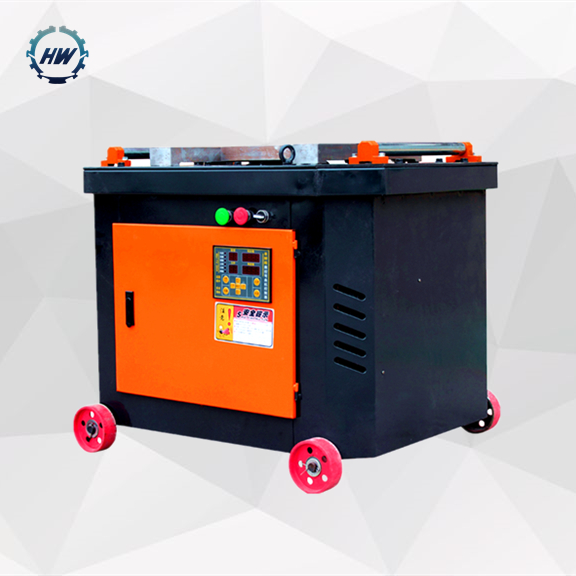

HengWang Bar Bending Machine
The working mechanism of steel bar bending machine is a horizontal working disc rotating on the vertical axis. The steel bar is placed on the dotted line in the figure, the supporting shaft is fixed on the machine tool, and the center pin shaft and bending pin shaft are installed on the working disc. When the disc rotates, the steel bar will be bent.In order to bend the steel bars of various diameters, there are several holes in the working disc for inserting the bending pin shaft, and the center pin shaft of different diameters can be replaced accordingly.
This machine is an improvement on the structure of steel bar bending machine.The utility model comprises a reducer, a big gear, a pinion, and a curved disk.Secondary deceleration between pinion gear and big gear;The big gear always drives the curved disk surface to rotate;A center axle hole and a number of bending axle holes are arranged on the curved disk surface;A number of positioning shaft holes are arranged on the positioning square bar of the workbench surface.Because the double-stage brake motor and reducer are directly connected to decelerate the first step, the input and output revolution ratio is accurate, the bending speed is stable and accurate, and the electric automatic control can be used to change the speed, the brake can ensure the bending Angle.Using the positive and negative rotation of the motor, the steel bar is bent in both directions.The center shaft can be replaced for easy maintenance.
Bend the reinforcement at an Angle
Motor Power: 2.2KW
HPB: 6mm - 20mm
HRB: 6mm - 16mm
Weight: 87KG
Motor Power: 2.2KW
Weight: 90KG
CNC Control
Motor Power: 2.2KW
Weight: 90KG
Single Phase
CNC Control
Single Phase
Bend the steel bar in an arc
CNC Control
CNC Control
Gear
-The whole gear steel die-casting, six times quenching forging, more durable, gear shaving process to reduce the working noise
Principal axis
-The use of bevel tooth spindle, bevel teeth greatly increased the power of the machine, spindle shaving process, effectively reduce the working noise
Travel switch
-Genuine delixi travel switch, precise bending Angle, long life of the switch is not easy to damage, improve work efficiency
Gear Box
-The heavy and thick cast steel plate is made by sand removal process, which has longer service life
