Home > Products > HW 511KW air compressor for factory price

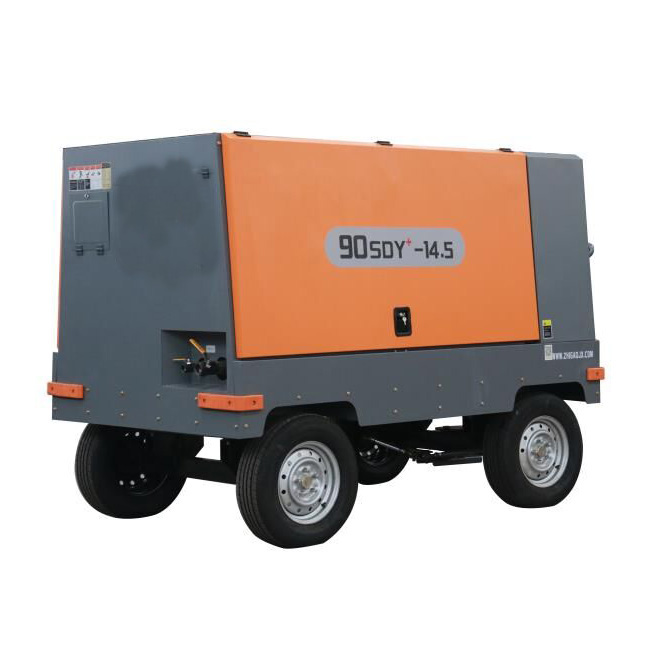

HW 511KW air compressor for factory price
Click on the image to view the original image
Product: views:5HW 511KW air compressor for factory price
Branch: HW
Type: SCREW
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-17 05:31
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
Construction works
Condition:
New
Type:
SCREW
Configuration:
Portable
Power Source:
Diesel
Lubrication Style:
Oil-free
Mute:
Yes
Place of Origin:
Shandong, China
Brand Name:
HW
Voltage:
24V
Dimension(L*W*H):
5000*2200*2900mm
Weight:
7200kg
Certification:
ISO
Warranty:
1 Year
After-sales Service Provided:
Online support
Product name:
Portable Air Compressor
Air delivery:
39 m3/min
Working pressure:
2.5Mpa
Rotary Speed:
1800rpm
Compressor oil:
140L
Displacement:
19L
Rated Power:
511kw
Rated rotary speed:
1800r/min
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export packing
Port
Qingdao or any port in China
Lead Time:
Quantity(Sets)1 - 1 >1
Est. Time(days)5To be negotiated
Product Description

HW air compressor machines

1.Full series product optimized for stronger frame and better towing protection and safety;stronger roof loading capabilities to meet customer load carry needs with rubber protection strips.
2.All pressure pipes are connected with steel tubes, it has excellent sealing and protect rubber from prevent aging, never wear and has attractive appearance.
3.With Patent designed safety air filter unit and stainless steel air inlet pipes for guaranteed dust filter ability and better protection against dirty air due to rubber hose damage.
4.All new designed cooler with independent modular unit and secured by structural component with cushion pad without any pressure points, effectively eliminating cooler damage by shroud deformation; independent damaged unit replacement made easy without removing the cooler assembly.
5.Diesel portable compressors all with international brand name controller with optimized interface for only 3 switches to operate, power, on and off. Automatic preheating, loading and unloading process, pressure control and engine fuel injection, eliminating high pressure stop and oil outburst.
Controller with water and moisture proof.

6.Easy access to all maintenance parts with document and tool box for better management of tools, records and safer for machine operation.
7.Electrical portable machine with breaker and power switch easy to access and protected for convenience and safety.

SPECIFICATIONS FOR SCREW AIR COMPRESSOR
Model
Rated FAD
Rated Pressure
Engine
Air End

Weight
Type
40SCY-7
4.5m3/min
7 bar
37kW
Single Siage Compression
860kg
2 wheel
110SCY-8
13m2/min
8 bar
110kW
Single Siage Compression
2,450kg
4 wheel
110SCY-10
12.5m3/min
10 bar
110kW
Single Siage Compression
2,450kg
4 wheel
110SCY-14.5
11m3/min
14.5 bar
110kW
Single Siage Compression
2,450kg
2/4 wheel
118SCY-15
12m3/min
15 bar
110kW
Rate flow
2,550kg
4 wheel
Certifications
Detailed Images
Our Service
Packing & Delivery
Packaging
Size
500 (L) * 220 (W) * 290 (D)
Weight
7.2 T



Packaging Details
There will be a layer of wax on the machine to prevent from rust.

And will be fixed in the container.
