Home > Products > 4.2 tons wheeled truck excavator can be excavated Truck mounted excavator

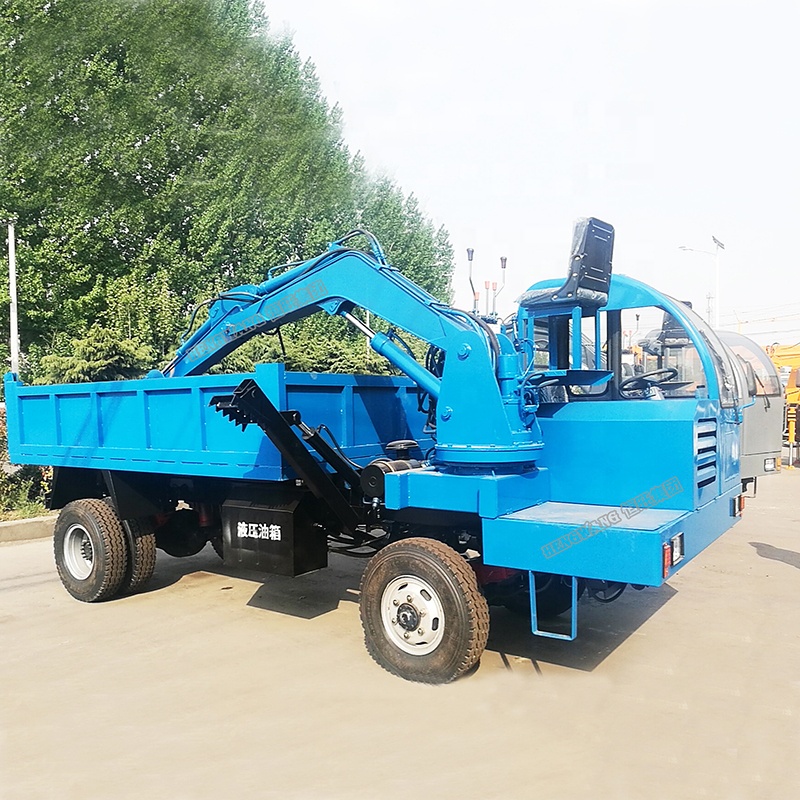

4.2 tons wheeled truck excavator can be excavated Truck mounted excavator
Click on the image to view the original image
Product: views:54.2 tons wheeled truck excavator can be excavated Truck mounted excavator
Branch: HW
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-17 05:31
  Negotiated
Product Details
Overview
Quick Details
Bucket capacity:
0.4m3
Operating Weight:
4200kg
Rated Speed:
5.5km/h
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts, No after-sales service
Applicable Industries:
Manufacturing Plant, Farms, Home Use, Construction works
Place of Origin:
Shandong, China
Brand Name:
HW
Condition:
New
Moving Type:
Wheel Excavator
Maximum Digging Height:
5320mm
Maximum Digging Depth:
3600mm
Max Digging Radius:
5810mm
Certification:
CE ISO
Hydraulic Cylinder Brand:
Liyuan
Hydraulic Pump Brand:
MOOG
Hydraulic Valve Brand:
Kawasaki
Engine Brand:
YUCHAI
power:
65kw
Length of digger arm:
4m/5m
Supply Ability
Supply Ability:
100 Set/Sets per Week
Packaging & Delivery
Packaging Details
Standard export package
Port
Qingdao/Shanghai/Dalian/Ningbo/Tianjin
Lead Time:
Quantity(Sets)1 - 100 >100
Est. Time(days)10To be negotiated
Video Description
Product Description

Truck mounted excavator

The mini truck with excavator can also pull soil and sand chassis is four unlike dump truck chassis, excavator part is the same as crawler excavator, can carry out 360 degrees arbitrary loading, in earthwork and sand loading and unloading is very convenient.
1.Simple operation, wide vision, safety and efficiency
The operation part is located behind the driver"s vehicle, which is conducive to safe operation,The digging arm can be lengthened. The digging effect is also very good.
2.Full-equipped, customized
Full-equipped, with single-cylinder and four-cylinder models, with rear-drive and four-drive, according to the different goods transported, excavator models support the customization of the whole vehicle, customization scope includes size, accessories, use and so on

SPECIFICATIONS FOR TRUCK MOUNTED EXCAVATOR
Model
5T
10T
Whole machine weight
3500kgs
4500kgs
Max. loading capacity
5000kgs
10ton
Max. traveling speed
60km/h
80km/h
Maximum gradeability
32 degree
32 degree
Engine model
490
4102 engine (turbocharged)
Max. power
85HP
110HP
Front and rear axle
Dongfeng 1061 axle
Dongfeng 1080 axle
Tire
750-16
825-20
Bucket capacity
Customized(3m*2m*0.7m)
Customized(3m*2m*0.8m)
Gear box
145 Dongfeng 6 speed with high slow speed
Electric System
24V rated voltage
Bucket capacity
0.25CBM
0.3-0.4CBM
Digging width
500mm(can customize)
700mm
Arm length
3m(Special pipe hydraulic system for big digger)
5m(Special pipe hydraulic system for big digger)

Our advantages:

1. An engineering vehicle that integrates excavation/digging, loading and transportation etc.
2. Self-loading and unloading, widely used in sand field and earthwork.
3. Four-wheel drive 4X4 drive, with high horsepower. also produce 4x2 drive
4. Amazing efficiency, especially in the sand field, sand, earth transport, garbage transfer, etc
5. Double top dump; unload the goods backward; unload goods on either side

Certifications
Detailed Images

Digging bucket and digging arm

Brand: HW
Length can be 5m, strong and 360° rotary, very convenient
It can be changed to crane for lifting goods.

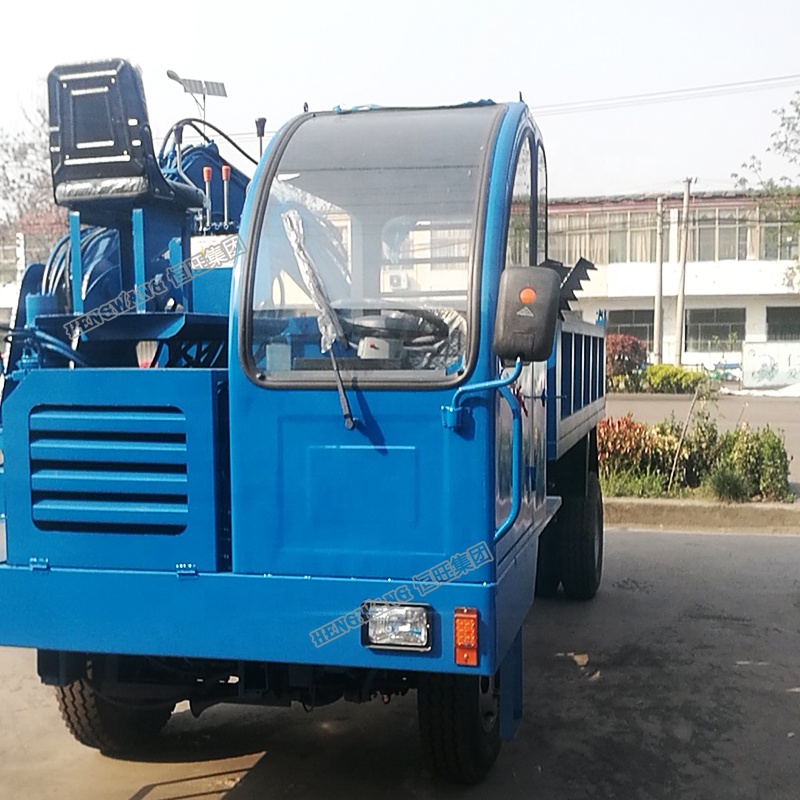

Cab

Independent Independent steel structure, more protection, also can without the cab
Powerful engineering hydraulic truck mounted dig and dump excavator

Foundation support

Brand: HW
Very stable and strong with long service life for the truck with excavator
Superior waterproof performance, high-speed waterproof sealing treatment for vehicle lines and electrical appliances, effectively avoiding leakage due to rainwater
