- Applicable Industries:
- Construction works
- Condition:
- New
- Type:
- Rotary Drilling Rig
- Power Type:
- Diesel
- Place of Origin:
- Shandong, China
- Brand Name:
- Zega
- Usage:
- Ore
- Voltage:
- 380V
- Dimension(L*W*H):
- 2500*1000*1300MM
- Weight:
- 5.5T
- Certification:
- ISO9001;CE
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
- MODEL:
- 420
- Drilling dia.:
- 130-245mm
- Drilling depth:
- 30m
- One time advance length of the drill:
- 1500mm
- Eletric motor power:
- 55KW
- Drill swing speed:
- 38-80rpm
- Air Pressure:
- 1.45-2.5Mpa
- Air consumption:
- 15-27CBM/min
- Color:
- Customised
- Supply Ability:
- 100 Set/Sets per Month
- Packaging Details
- 20GP
- Port
- Qingdao
- Picture Example:
- Lead Time:
Quantity(Sets) 1 - 5 >5 Est. Time(days) 15 To be negotiated

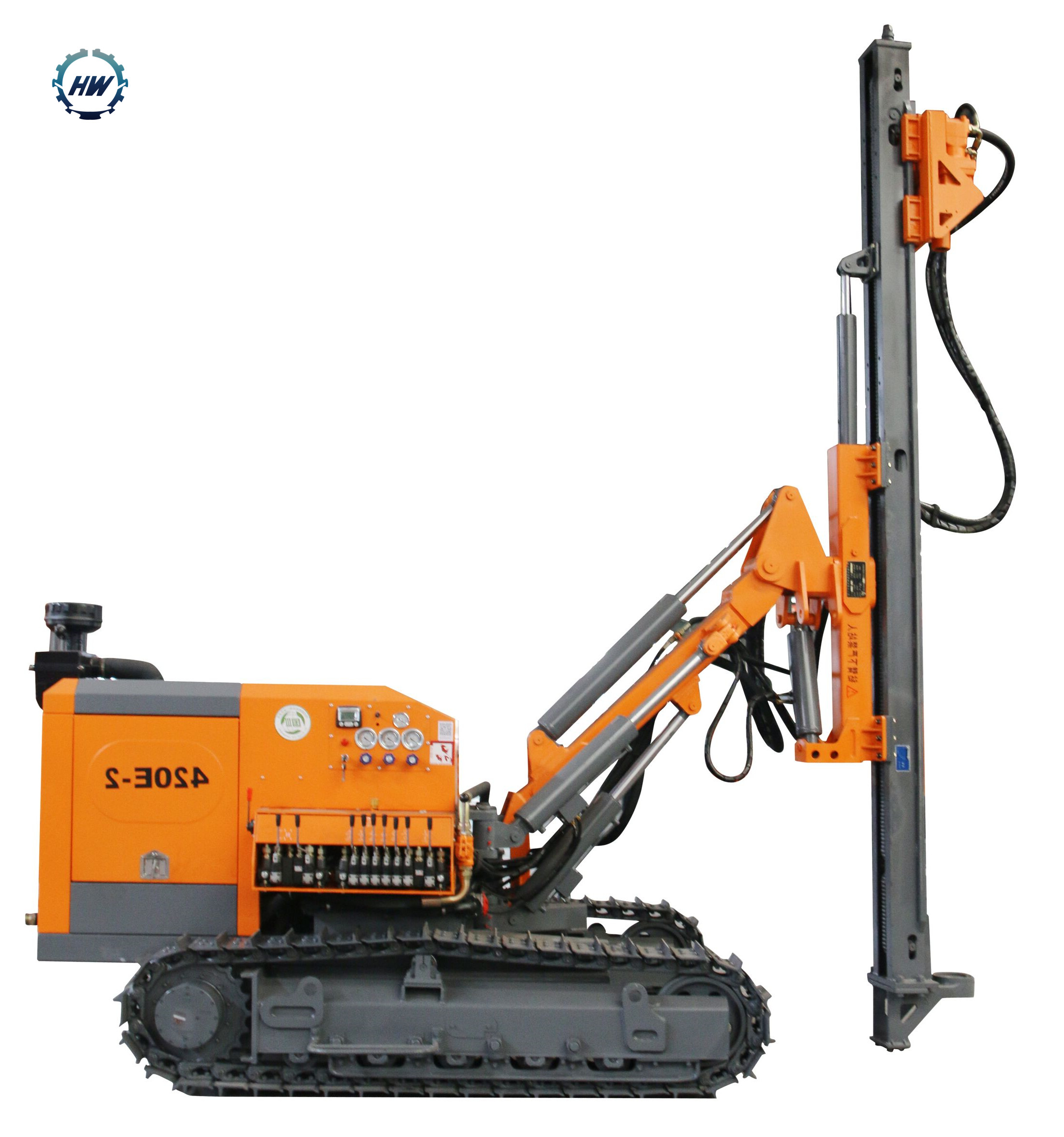

HWZG-420/420-1/420D
Sparated DTH Surface Drilling Rig
Features:
1. The supporting power standard for this type of drilling rig is Yuchai four-cylinder YC4D80 and electric motor 45KW. The standard configuration of 76mm diameter three-meter drill pipe or a variety of twist drill pipe, is a dual-use diesel and electric models, can be switched at any time.
2, the use of high-torque double cycloidal motor to drive the turret, reducing the failure rate of the original steel ball motor and bulky volume. The rig"s torque (up to 4600N.m) has been greatly enhanced, making it a larger range of rock drilling apertures, which can be widely applied to pit foundation anchoring, heel pipe, and large-diameter twist drill pipe operations.
3, self-developed high-performance wet air filter, with dry air filter, to form a three-stage air filtration system, more perfect protection of the diesel engine.
4, rotary two-speed switching valve is easy to operate, to meet the needs of different torque and speed operations.
5, standard assembly plunger travel motor, climbing more powerful, more reliable quality.
Power | |
HWZG-420 | 58KW Diesel Engine |
HWZG-420-1(dust-extraction unit) | 73.5KW Diesel Engine |
HWZG-420D | 45KW Motor |
General Specifications | |
Hole Depth | 30M |
Drill Pipe Sizes | 76mm*3,000mm |
Hole Diameter | 110mm-138mm |
Hammer | 4""/5"" |
Rotation Torque (Max.) | 2500 N.m |
Rotation Speed | 0-100 rpm |
Working Pressure | 0.7- 2.5 Mpa |
F.A.D | 8- 20 cbm/min |
Feed Force | 20KN |
Pull up force | 45KN |
Feed Type | Chain/Cylinder |
Tramming Speed (Max.) | 3km/h |
Gradinet | 25° |
Total Weight | 5.5T |
Transportation Dimensions | 5100*2260*2500mm |
Dry Dust Collector | Option |
Packing | 20" FCL/40" FCL |
Delivery | Goods will get ready within 5 days after received the payment. |
To protect your benefit!
1. Unconditionally refunding your money, in 7 days after paying.
2. Unconditionally refunding your money, if you are not satisfied with quality after receiving goods.
3. Alibaba Trade Assurance Order online is supported and welcomed, your money will be in safety.
3 YEAR WARRANTY , If any parts break down within warranty we will send you free part !!!
Although out of the WARRANTY, we can offer you the part in cost price !!!
