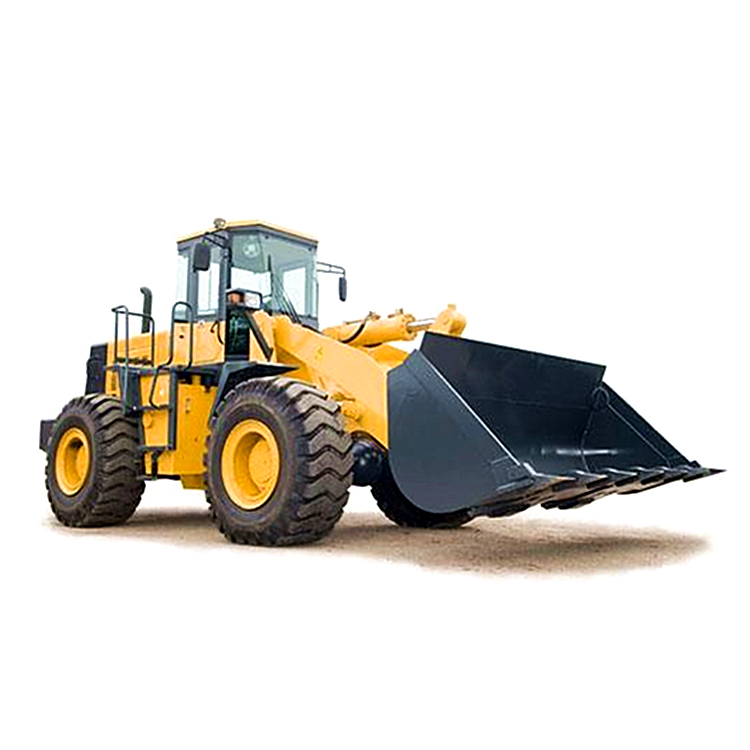

Click on the image to view the original image
Advantage:
- Reliable and durable: heavy-duty frame, mature fixed-axis transmission system, overhaul period of heavy-duty conditions
- Efficient operation: high and low speed combined operation with high level automatic leveling work device, greatly improved shovel loading efficiency
- Economical and energy saving: high speed engine, large displacement double pump combined hydraulic system, high efficiency and energy saving
- Comfortable operation: mold-forming panoramic cab, pilot handle, large seat, low noise
Efficient hydraulic system
Three-position four-way valve with floating function, good micro-motion performance, high precision operation
Pilot oil high pressure filter, eliminate the valve
Powerful power system
162kW 2000rpm
Newly designed engine shock absorber
Three power curves are available 93 desert filter
Spacious and comfortable cab
Patented damping system ensures less indoor noise
Mechanically adjustable high back suspension seat for added comfort
Side door with sliding window for easy ventilation; optional with fresh air function
The parallel bar shift control valve adds versatility. The operating mechanism not only satisfies the horizontal bar operation, but also retains the function of the original parallel bar shift control valve, which is convenient for different customers.
Integrated inductive instrument
The instrument panel has adjustable air outlet direction for easy defrost.
Reliable drive system
Fixed-axis gearbox with simple structure, optimized design of key components, higher reliability and longer life
The first insertion force is large, the second gear operation speed is fast, and the 1/2-speed joint work is more efficient.
Work on the slope, the work on the slope is smoother and safer.
The optimized torque converter is more reasonable and more efficient in matching the engine; the single-stage three-element structure is simple, the core components are enhanced, and the reliability is higher.
Equipped with a drive axle with a load capacity of 28 tons, with high bearing capacity, high reliability and long service life
Convenient maintenance
Gearbox torque converter is installed separately, which is more convenient for disassembly and overhaul
Fixed-axis gearbox is simple and reliable in design, easy to maintain and low maintenance cost
Hydraulic system and brake system with pressure tap for pressure detection
The water tank protection net can be opened for easy cleaning of the cooling module
Safety
ab noise standard <85dBA
Environmentally friendly brake pads, environmentally friendly vehicle paint technology, environmentally friendly
Three-point contact design ensures passengers get on and off safely
Maintenance free battery, reliable guarantee
Left and right escalator floor design, in line with ergonomic requirements
One unit packing in a 20"GP container. Three unit in a 40"HQ container. We will use iron wire fixed on container. It"s very stable.
