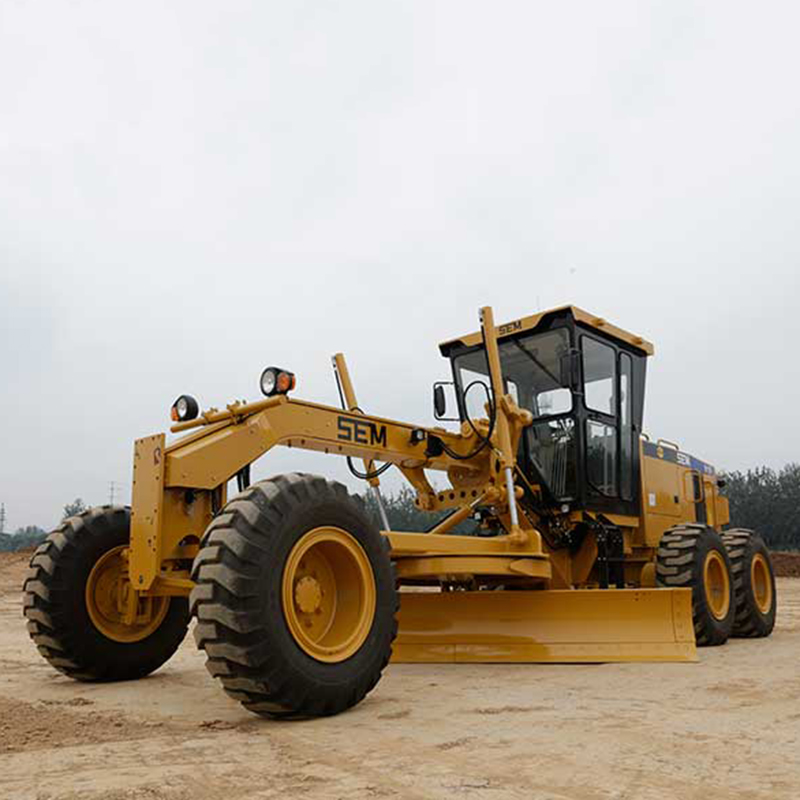

SEM921 Motor Grader
Advantages:
High Productivity: Load sensing hydraulic system provides consistent and precise blade movement
High Reliability: A-frame designed drawbar provides strength in all blade positions
Lower Operation Cost: Optimized power train match with ECO model and VHP function contributes less fuel consumption
SEM Tandem Axle
Improved bearing layout and optimized load distribution with 4 planetary gears final drive
Less down time and reduced labor and service cost for maintenance and repairing
Longer service interval for lubrication oil change
Leading in class manufacturing and quality control level, mandatory performance testing before delivering to MG assembly line
Control System
7 position link bar with electric over hydraulic control allows ease of operation from within the cab
Optimum blade reach capability, quick DCM re-positioning for greater reach for better working on high bank side slope
The link bar is essential for extending reach capability when cutting a bank slope or back slope of a ditch
Replaceable bushings reduce service time and cost
Optional
1.Front shovel
2.Rear ripper
3.Snow wing
Operation Weight (Base Machine)kg 15,930
Overall Dimensions (L*W*H)mm 8,854*2,630*3,360
Blade Length (L*W*H)mm 4,279*25*607
Max. Lifting Heightmm 475
Max. Depth of Cutmm 715
Max. DrawbarkN ≥85
Wheelbasemm 6,140
Frame Articulation Angle° 20
Min. Turning Radiusm 7.8
Engine Brand SDEC SC9DK220G3
Rated power kW162
Transmission Type Hangchi 6WG180
Travel Speed (Forward/Rear)km/h 40/25 Rear Axle/Tandem SEM ST22
Service brake Outboard disc with brake caliper,Air to oil Control
Oscillation (Front up/Rear up)° 15/25
Max. Oscillation Angle° ±16
Steering Angle (Left/Right)° 47.5
Max. Lean Angle of Front Wheels° 18
Hydraulic System Load sensing,PPPC
Fuel Tank L 320
Engine Oil L 22
Coolant L 65
TransmissionL 28
Rear Axle (Main Reducer & Tandem)L 157
Circle Drive (Standard)L 2
Circle Drive (with Slip Clutch)L 7
Hydraulic Oil TankL 55
