- Power(W):
- 9hp/13hp
- Travel Speed:
- 0-8km/h
- After-sales Service Provided:
- Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
- Warranty:
- 1 Year
- Applicable Industries:
- Construction works
- Condition:
- New
- Type:
- Double Drum Roller
- Grade Ability:
- 30%
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Dimension(L*W*H):
- 2100*860*1580mm
- Weight:
- 970kg
- Certification:
- ISO
- Hydraulic Pump Brand:
- Kawasaki
- Hydraulic Valve Brand:
- SAUER-DANFOSS
- Engine Brand:
- CHANGFA
- UNIQUE SELLING POINT:
- High power engine
- Efficient:
- 9hp/13hp
- Steel wheel size:
- 700x530mmx2
- Starting mode:
- Electric Starting
- Driver mode:
- Hydraulic drive(two wheel driver)
- Vibration control:
- Electromagnetic Control ( Front Wheel Vibration)
- Vibrational frequency:
- 75hz
- Hydraulic tank capacity:
- 60L
- Tank capacity:
- 70L
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 210X86X158 cm
- Single gross weight:
- 970.0 kg
- Package Type:
- standard packing
- Picture Example:
- Lead Time:
Quantity(Set) 1 - 1 >1 Est. Time(days) 5 To be negotiated

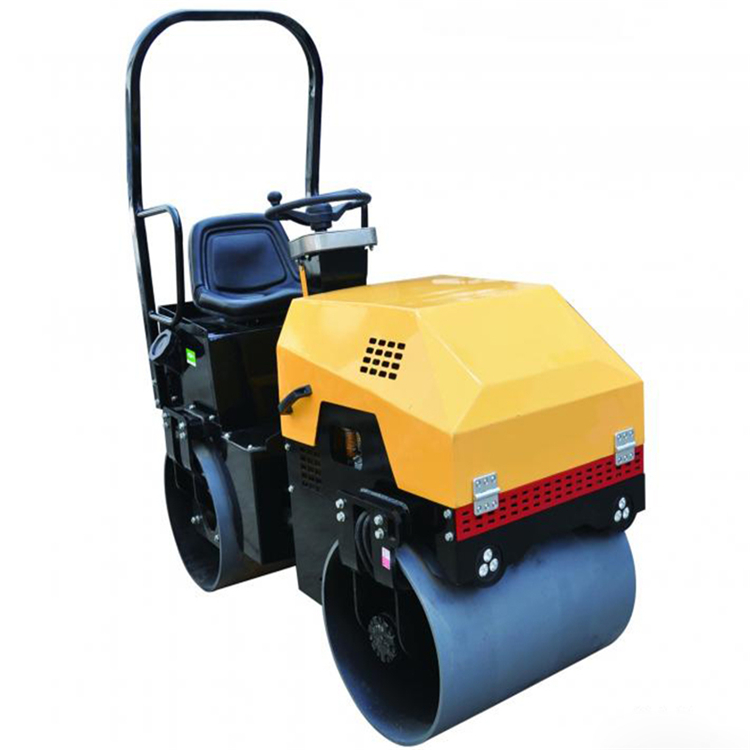

HW-700 1T Hydraulic Road Roller
It is mainly used for the compaction and leveling of ditch foundations, roads and stadiums. It can also be used for the compaction of asphalt surface.
The operation radius is small, it can work in smaller area, and is suitable for trench backfill.
Equipped with international famous brand or excellent diesel engine, its performance is superior and easy to start.
Adopt international famous brand hydraulic drive import unit, stepless speed change, front and rear walking, hydraulic steering.
Start mechanical and electrical start, hydraulic vibration, operation easier and more convenient.
Install luxurious seats, adjust conveniently and work comfortably.
The internationally famous bearing ensures the working performance of the machine.
Surface sprayed, beautiful face, rust and corrosion resistance.
SPECIFICATIONS FOR 1 TON HYDRAULIC ROAD ROLLER | |||
Model | HW-700 | Climbing ability | 30% |
Walking speed | 0-8km/h | Driver mode | Hydraulic driver(2 wheel) |
Engine | GX390 | Vibration control | Electromagnetic clutch |
Steel wheel size | 700mm*530*2 | Vibrational frequency | 75hz |
Start-up mode | Electronic Startup | Exciting force | 30kn |
Hydraulic tank capacity | 60L | Tank capacity | 70L |
Size | 2100*860*1580 | Weight | 970kg |
Hand type single wheel roller
Model:HW-YL600 Engine:Diesel or Gasoline
Steel wheel size:600mm*450 Walking speed:0-6km/h
Climbing ability:25%
Drive mode:Hydraulic pump,motor drive
Vibration mode:Automatic vibration
Vibration frequency:75hz Exciting force:20kn
Outline size:1500*780*1050mm
Weight:320/350kg
Walking type double wheel roller
Model:HW-YLS600 Engine:Diesel or Gasoline
Steel wheel size:600mm*450*2
Walking speed:0-6km/h Climbing ability:30%
Drive mode:Hydraulic pump,motor drive,double wheel vibration
Vibration mode:Automatic vibration and double wheel vibration Vibration frequency:75hz
Exciting force:20kn Outline size:2450*780*1050mm
Weight:530/550/590kg
Walking type full hydraulic roller
Model:HW-YLD635 Engine:Diesel engine
Steel wheel size:600mm*450
Start-up mode:Electronic startup
Walking speed:0-6km/h Climbing ability:30%
Drive mode:Variable displacement pump,quantitative motor Vibration mode:Hydraulic steering
Vibration frequency:75hz Exciting force:20kn
Outline size:2450*680*1800mm
Weight:800kg Hydraulic tank capacity:80L
1.5 Ton full hydraulic roller
Model:HW-JS800 Engine:Diesel engine
Steel wheel size:800mm*530*2 Walking speed:0-8km/h
Climbing ability:30% Efficiency:11hp/13hp
Start-up mode:Electronic startup
Drive mode:Hydraulic drive(two wheel drive)
Vibration control:Hydraulic control(front wheel vibration)
Vibration frequency:75hz Exciting force:30kn
Hydraulic tank capacity:70L Tank capacity:80L
Outline size:2200*920*1620mm Weight:1380kg
2 Ton full hydraulic roller
Model:HW-JS900/HW-JS1000 Efficiency:11hp/13hp Steel wheel size:900/1000mm*610*2
Start-up mode:Electronic startup Engine:Diesel engine
Walking speed:0-12km/h Climbing ability:30%
Drive mode:Hydraulic drive(two wheel drive)
Vibration control:Hydraulic control(front wheel vibration/double wheel vibration)
Vibration frequency:75hz Exciting force:30kn
Hydraulic tank capacity:60L Tank capacity:100L
Outline size:2300*1020/1120*1750mm
Weight:1800kg/1980kg
3 Ton full hydraulic roller
Model:HW-JS1200 Efficiency:39hp Steel wheel size:1200mm*710*2 Engine:Diesel engine
Start-up mode:Electronic startup
Walking speed:0-12km/h Climbing ability:30%
Drive mode:Hydraulic drive(two wheel drive)
Vibration control:Hydraulic control(double wheel vibration)
Vibration frequency:75hz Exciting force:35kn
Hydraulic tank capacity:70L Tank capacity:200L
Outline size:2700*1320*2000mm Weight:3140kg
3.5Ton single steer wheel roller
Model:HW-JS3500 Engine:Diesel engine
Efficiency:28.5kw Steel wheel width:1200mm
Start-up mode:Electronic startup
Walking speed:0-12km/h Climbing ability:30%
Wheelbase:1686mm
Minimum turning radius:4600mm
Vibration control:Hydraulic control
Vibration frequency:60hz Exciting force:55kn
Hydraulic tank capacity:80L Weight:3500kg
Outline size:3800*1390*2300mm
