Home > Products > Ride on road roller compactor roller with double drum

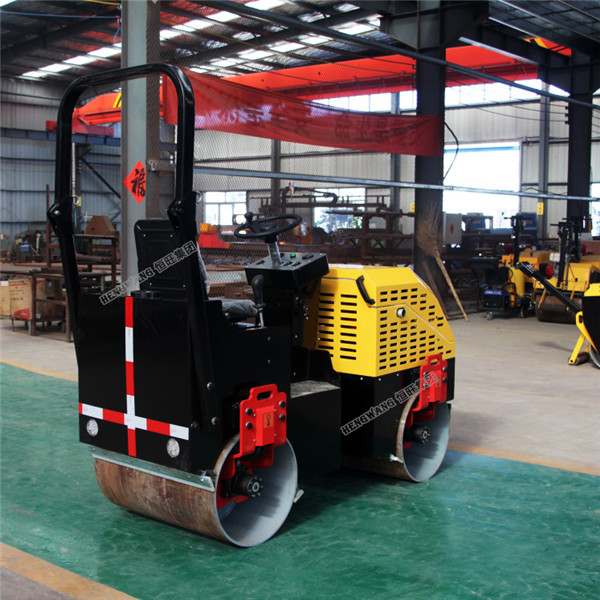

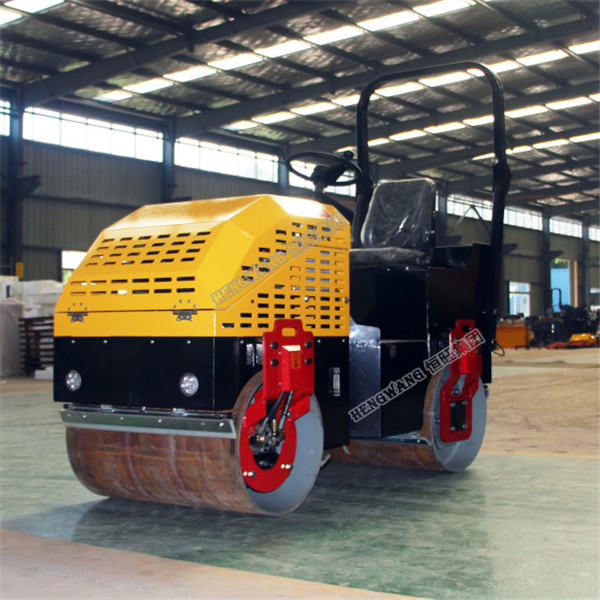

Ride on road roller compactor roller with double drum

Click on the image to view the original image

Product：	views：4Ride on road roller compactor roller with double drum
Branch：	Hw
Type：	Double Drum Roller
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:32

Product Details

Overview

Quick Details

Power(W):: 8.0HP

Travel Speed:: 0-4km/h

After-sales Service Provided:: Free spare parts, Video technical support, Online support

Warranty:: 1 Year

Applicable Industries:: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

Condition:: New

Type:: Double Drum Roller

Grade Ability:: 30%

Place of Origin:: Shandong, China

Brand Name:: Hw

Dimension(L*W*H):: 2050x950x1550mm

Weight:: 1000KG

Certification:: ISO

Hydraulic Pump Brand:: Kawasaki

Hydraulic Valve Brand:: Changjiang

Engine Brand:: CHANGCHAI

Product name:: 1 Ton Road Roller

Drive Type:: Hydraulic Station

Vibration frequency:: 70 Hz

Steel Wheel Size:: 700*530mm

Engine type:: Air Cooled Diesel Engine

Starting mode:: Electric Starting

Key words:: Steel Wheel Vibratory Roller

Vibration:: Antomatic Centrifugal Clutch

Operating weight:: 1000kg

Exciting Force:: 20 KN

Supply Ability

Supply Ability:: 10000 Set/Sets per Year

Packaging & Delivery

Packaging Details: wooden case

Port: Qingdao

Lead Time:

Quantity(Sets)	1 - 1	>1
Est. Time(days)	5	To be negotiated

Ride on road roller compactor roller with double drum

Product instruction

Road rollers are widely used in filling compaction operations for large-scale projects such as high-grade roads, railways, airport runways, dams, stadiums, etc.,

The road roller can crush sand, semi-viscous and viscous soils, roadbed stabilized soils and asphalt concrete pavement layers. The roller is applied by the gravity of the machine itself, and is suitable for various compaction operations, so that the pressed layer is permanently deformed and compacted.

Technology Parameter

Model	HW1000
Speed	0—4km/h
Steering radius	2800mm
Climbing capacity	30%
Nominal amplitude	0.5mm
Vibration frequency	70 Hz
Exciting force	20KN
Water tank capacity	80L
Type	Diesel engine, water-cooled four stroke, three vat
Power	6KW
Hydraulic oil tank capacity	15L
Lubricating oil quantity	1.1L
Fuel consumption	280g/kw x h
Packing size	2050x950x1550mm
Working weight	960Kg
