- Bucket capacity:
- 0.025 M3
- Operating Weight:
- 1T
- Rated Speed:
- 0-30km/h
- Warranty:
- 1 Year
- After-sales Service Provided:
- Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
- Applicable Industries:
- Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Condition:
- New
- Moving Type:
- Crawler Excavator
- Maximum Digging Height:
- 1750mm
- Maximum Digging Depth:
- 1200mm
- Max Digging Radius:
- 2300mm
- Certification:
- CE,ISO
- Hydraulic Cylinder Brand:
- Parker
- Hydraulic Pump Brand:
- Parker
- Hydraulic Valve Brand:
- Eaton
- Engine Brand:
- CHANGCHAI
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 2270X940X2200 cm
- Single gross weight:
- 1000.0 kg
- Package Type:
- standard packing or packing according to customer's requirement
- Picture Example:
- Lead Time:
Quantity(Set) 1 - 1 >1 Est. Time(days) 5 To be negotiated

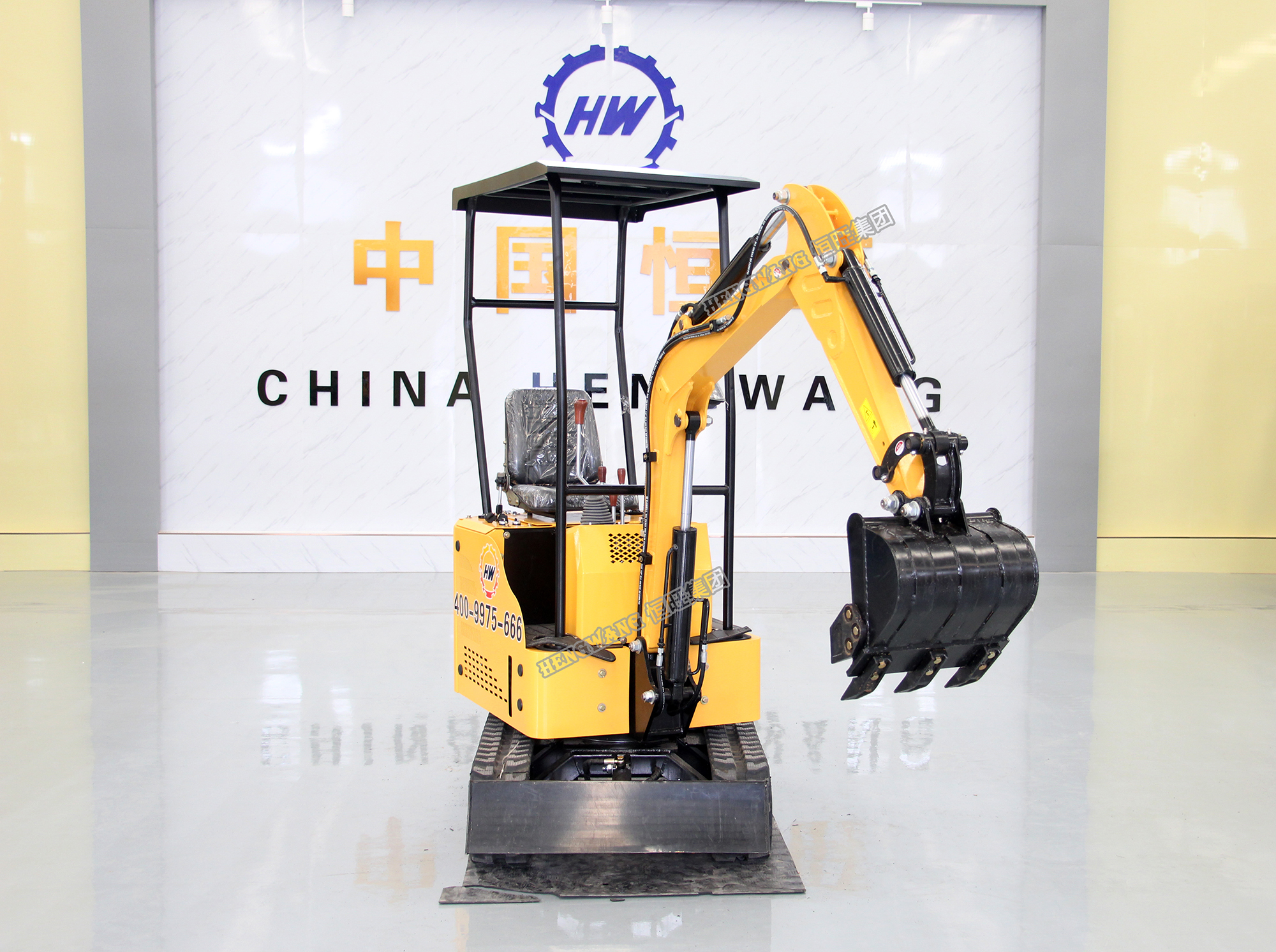

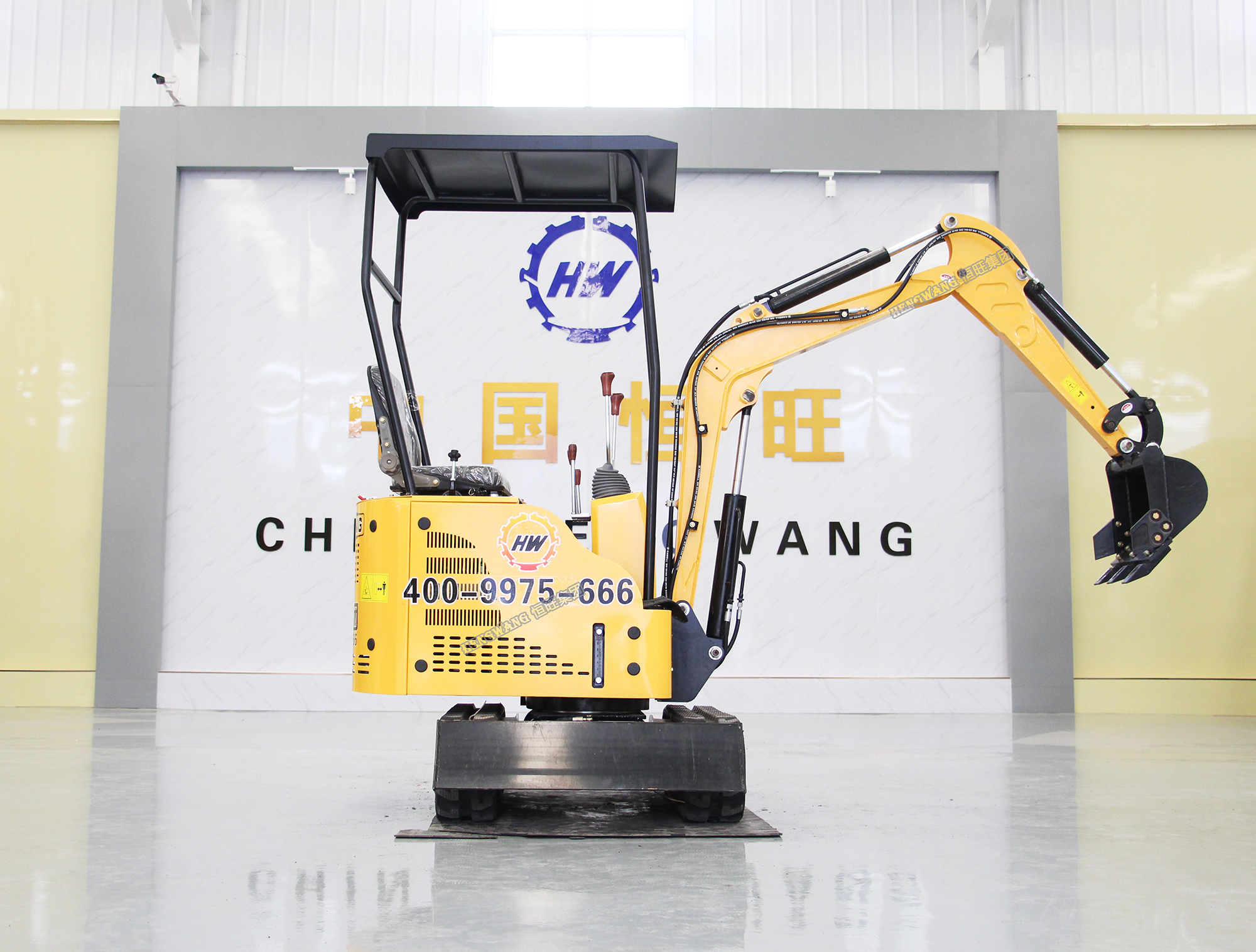

HW Hydraulic 1Ton Mini Excavator.
Small crawler excavator has beautiful design, its platform can rotate 360 degrees.
The excavator is equipped with rubber track, it"s reliable and of user-friendly.
With multiple functions of digging, grabbing, drilling, bull-dozing, ditch-cleaning and rock-breaking, this excavator can be widely used in various construction projects such as water supply, power supply, gas supply, telecommunication network, farmland and garden works etc.
Product Application
This excavator is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse, digging trench. It is with small engine, simple design, easy to maintain.
HW Excavator Family!
SPECIFICATIONS FOR Hydraulic 1Ton Mini Excavator. | |||
Operating Weight | 1000kg | ||
Bucket Capacity | 0.025 m³ | ||
Bucket Width | 400 mm | ||
Travel Speed | 1.5 km/h | ||
Engine Power | 8.6 kw (11.7 hp) | ||
Engine Details | Diesel, 1-Cylinder, 4-Stroke, Air Cooling, Direct Injection | ||
Broke * Stroke | 92*75 mm | Track Height | 320 mm |
Displacement | 0.499 L | Max. Dig Radius at Groundline | 2300 mm |
Fuel Consumption | ≤280 g / kw.h | Max. Dig Depth | 1200 mm |
Dimensions | 2270 * 940* 2200 mm | Max. Vertical Straight Dig | 1375 mm |
Wheel Tread | 910 mm | Max. Dig Height | 1750 mm |
Track Length | 1230 mm | Max. Dump Height | 1850 mm |
Upper Structure Ground Cleatance | 380 mm | Backfill Blade Rise above Ground | 345 mm |
Tail Swing Radius | 784 mm | Backfill Blade Max. Dig | 255 mm |
Underpan Width | 896mm | Min. Turn Radius | 1330 mm |
HW 1Ton Excavator.
High flexibility and wide adaptability. Due to the small size of the excavator parts, the mini excavator is compact and flexible, and is good at various pipeline excavation, foundation construction and house maintenance. There are more and more earthworks and more and more refined construction methods, which provides a large stage for small excavators to show their talents.
Excavator Detail Parts.
Working versatile and The rotation is flexible and the work is precise and focused.
High quality , high efficiency, quality guarantee.
