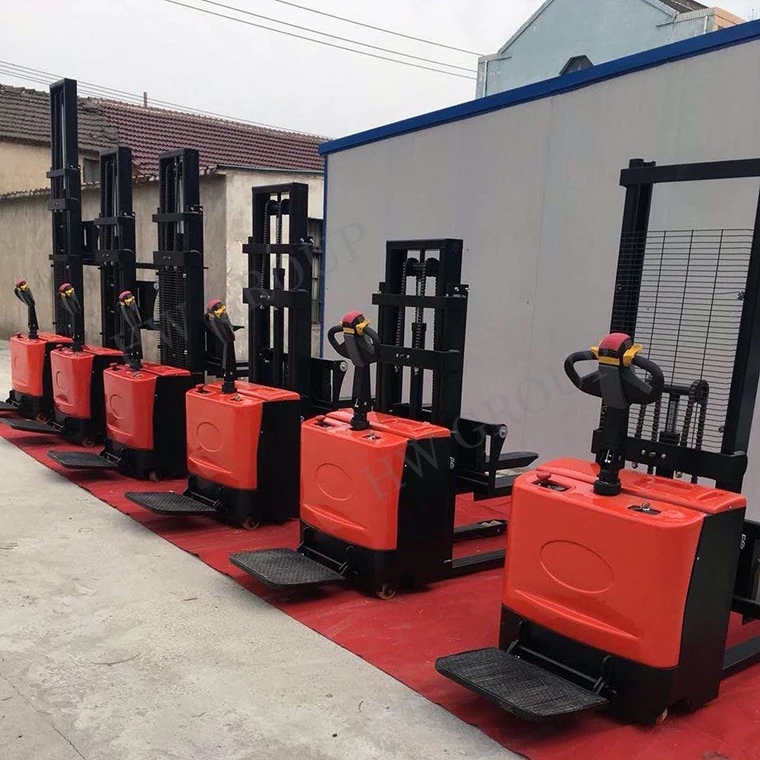

HW series balanced electric fork lift is a three-fulcrum balanced truck with battery as energy source and stand-up operation. Due to its small size, light weight and easy operation, it can work on the floor with narrow passageways and in areas with complex environment. It is an ideal tool for loading, unloading and stacking goods in warehouses, workshops or factories.This fork lift adopts polyurethane cast steel wheel with small diameter, which is suitable for walking on flat hard and solid working ground.

This fork lift can cooperate with pallets and boxes, carry out the unit transportation of the factory, or undertake the operation between the working procedures of the working equipment or the operation in and out of storage, so as to effectively reduce the collision damage of vulnerable parts, reduce the stacking area of the working equipment, so as to improve the product quality, save the capital investment and improve the carrying efficiency.

1. Imported driving motor can generate strong traction and power to ensure smooth driving on uneven roads and slopes
2. Powerful hydraulic motor provides more torque, making the lift and fall of the fork more stable
3. Easy to maintain brake system, making brake safer and more comfortable.
4. With combined roller door frame, high strength and low deformation.
5. Rear cylinder ensures wide view of door frame.
6. The flow limit valve can adjust the descending speed of the portal frame, which can prevent the rapid descending of the portal frame even when the oil pipe bursts, ensuring safety.

Basic parameters rated weight                             1000KG 1500KG 2000KG
Load center                                                               600 MM
The lifting height of the door series                     1600/2000/3300 MM
Ceiling weight                                                           1000 1500 2000 KG
Control mode                                                            walking mode/station driving mode
the fork distance from the ground                        90 MM
Turning radius                                                          1530 1530 1530 MM
Overall length (without pedals/with pedals)      1880/2330 1880/2330 1880/2330 MM
Overall width                                                             850 850 850 MM
Body height                                                               1975 1785/1985/2185 1785/1985/2185 MM
Height after lifting the door                                    1975 1785/1985/2185 1785/1985/2185 MM
Standard fork size (length/width/height)            1000×160×70 MM
Outer width of cargo fork:                                       560-850 MM
Inside width of fork is                                              240-570 MM
Driving speed (full load/no load)                           KM/H 4/6
Lifting speed (full load/no load)                            MM/S 80/130
Descending speed (full load/no load)                  MM/S 110/90
Climb grade (full/no load)                                       8°/12°
Braking mode                                                            electromagnetic braking
Wheel drive                                                               ￠250 x 80  MM
Drive wheel type                                                       horizontal
bearing wheel                                                           ￠80 × 70 MM
Balance wheel                                                          ￠156 × 50 MM
Motor drive motor                                                    1.2 KW
Lifting motor                                                             2.2 KW
Battery (voltage/capacity)                                     24V/120AH start /160AH traction
Control type                                                               Curtus1207 series excitation control
Weight (battery included)                                       500/600/630/660 750/850/910 850/950/1000 KG

2 YEAR WARRANTY , If any parts break down within warranty we will send you free part
Although out of the WARRANTY, we can offer you the part in cost price
