- Dimension(L*W*H):
- 132*85*110cm
- Weight:
- 135KG
- After-sales Service Provided:
- Free spare parts, Video technical support, Online support, No after-sales service, Field installation, commissioning and training
- Warranty:
- 1 Year
- Applicable Industries:
- Construction works
- Condition:
- New
- Place of Origin:
- Shandong, China
- Brand Name:
- HengWang or OEM
- Features:
- Thermoplastic paint
- Certification:
- ISO:9001
- Product name:
- Thermoplastic road marking machine
- Working efficiency:
- 1.5 KM/H
- Glass bead density:
- 20g~30g/15cm
- Line width:
- 100~400mm(Optional)
- Line thickness:
- 1~3mm(adjustable)
- Heating time:
- 20 min
- Heating method:
- Petroleum liquefied gas
- Heating Temperature:
- 180°~220°
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 132X85X100 cm
- Single gross weight:
- 150.0 kg
- Package Type:
- wooden case
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 10 >10 Est. Time(days) 7 To be negotiated
HengWang Road marking mahine
Marking machine, a road construction machine that is widely used on roads, highways, parking lots, plazas and runways to draw different restrictions, guidelines and warnings on the flat ground. The marking machine has played a huge role in urban planning and road construction with its advantages of fastness, efficiency and accuracy, and has saved the construction period and economic investment of the road construction to the greatest extent.
1, the car body is light, compact, and beautiful appearance;
2, lift handle design, the operator can make adjustments as needed;
3, glass microsphere automatic spreader;
4. The detachable design of the heat preservation heating barrel and the reasonable mixing shaft design solve the phenomenon that the mixing barrel is often stored;
5, adjustable pointers to improve work efficiency;
6, the use of high-precision steel plate known to the coating bucket, high temperature resistance, corrosion resistance, deformation, heating and other advantages;
7, the special wheel made of cast iron and imported rubber, light, strong and durable.
Instructions for use:
1, Add glass beads:
Open the upper glass bead box and pour the prepared glass beads into the upper glass bead box. The glass micro beads should be protected from moisture, so as to avoid uneven beads.
2, Ignition heating:
1) Open the liquefied gas tank valve, pick up the ignition device, turn the adjusting screw in the middle of the ignition device counterclockwise, and then point the torch.
2) Insert the torch into the hot bucket furnace, rotate the valve on the gas tank counterclockwise, open it, and point the stove in the holding kettle.
3), Receiving materials:
Push the marking machine to the discharge door of the hot melt axe. When opening the door of the hot melt axe, use a filter to filter the impurities in the paint to ensure the quality of the marked line.
HW-HXJ-R01
FOB USD 2200~2000
Simplify Type
Little Tank
Flexible
HW-HXJ-R02
FOB USD 2450~2200
Standard Type
User-friendly operation
Long-time Endurance

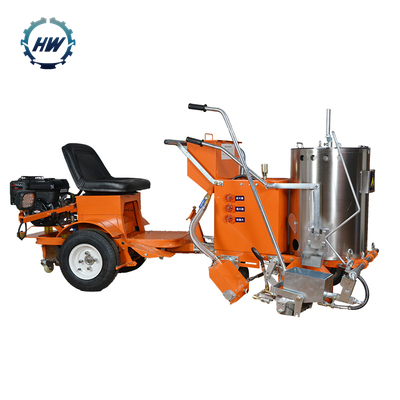

Ride-on Type
FOB USD 6400~6200
Engine Brand: B&S
Power: 5.5HP
Front Speed:15KM/H
Back Speed:10KM/H
Fuel Tank capacity:2L
Glass bead spreader
Reflective at night
According to the line width
Can be changed to different sizes
Lined hopper
Control line width
default 15 cm
can be changed to different sizes
Hopper cover +
hand crank handle
Not only can insulation coating
Stirring handles can also better mix the paint
Regulating valve
Front, rear and hopper
turn clockwise
counterclockwise
Directional wheel
Loosen the two screws and move the car left and right. If it is biased to the left, translate the positioner to the right. If it is biased to the right, tilt the positioner to the left.
Thermometer
Monitor paint temperature at any time
To protect your benefit!
1. Unconditionally refunding your money, in 7 days after paying.
2. Unconditionally refunding your money, if you are not satisfied with quality after receiving goods.
3. Alibaba Trade Assurance Order online is supported and welcomed, your money will be in safety.
1 YEAR WARRANTY , If any parts break down within warranty we will send you free part !!!
Although out of the WARRANTY, we can offer you the part in cost price !!!
