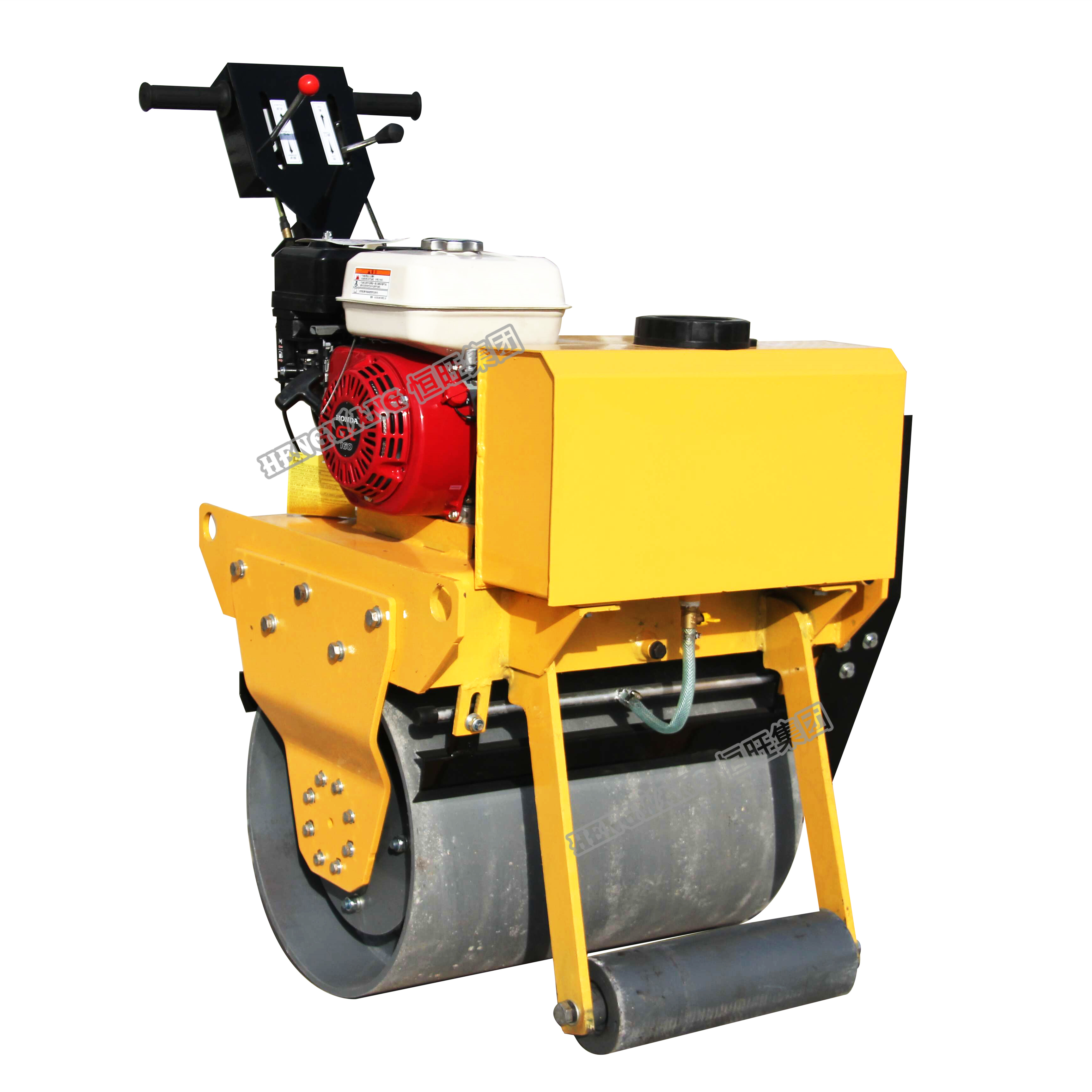

HW ROAD ROLLER
The small walk behind manual road roller belongs to the category of road equipment in construction machinery. Road roller is widely used in the filling and compacting of large-scale projects such as high-grade roads, railways, airport runways, dams and stadiums. Small walk behind manual road roller can crush sand, semi-stick and sticky soil. Subgrade stabilized soil and asphalt concrete pavement layer.
Small walk behind manual road roller applications:
This mini road roller compactor most suitable for compaction of asphalt surface, compaction of gravel, sand and other projects.The walk-behind vibratory rollers are small-size vibratory roller, applied to mending and maintaining various roads, expressway shoulder, roadside walk, parking area, sports ground and garden lawn. They are especially suited for compaction of narrow areas as pipeline channel and drainage trench etc.
Small walk behind manual road roller features:
1).Operating radius is small, can work in a small area;
2).Famous diesel engine,international brands,quality assurance,superior performance, easy start;
3)The transmission mechanism of famous hydraulic drive system,and infinitely variable Vibratory speed,reversing is convenient,service life long.
4)Deisel power with electric startup,light and flexible.
5)Dual vibration mode and Dual drive, ensure whole compaction and climbing ability.
Walk behind single wheel diesel manual road roller HS-450
Work weight:350kg Walking speed: 0-4km/h
Vibration frequency:75HZ Vibration force:20kN
Vibration:Mechanical transmission - electromagnetic clutch)
Engine model:CF170 Diesel engine: air cooling 4 stroke)
Power4.0hp/3600rpm Fuel tank capacity:2.5L
wheel:φ450*450mm length about armrest flat:1650mmHeight about Arm stand:1300mm
Packing size:1160x900x1100mm
Walk behind single wheel diesel manual road roller HS-600
Work weight:480kg Walking speed: 0-4km/h
Steering radius :30% Vibration frequency:75HZ
Vibration force:20kN Water tank capacity:20L
Vibration:Mechanical transmission - electromagnetic clutch)
Engine model:CF178 Diesel engine: air cooling 4 stroke)
Power4.0hp/3600rpm Fuel tank capacity:3.5L
wheel:φ450*600mm length about armrest flat:1900mm
Height about Arm stand:1400mm
Packing size:1160x900x1100mm
Walk behind single wheel diesel manual road roller HS-700
Work weight:520kg Walking speed: 0-4km/h
Steering radius :30% Vibration frequency:75HZ
Vibration force:20kN Water tank capacity:20L
Vibration:Mechanical transmission - electromagnetic clutch)
Engine model:CF178 Diesel engine: air cooling 4 stroke)
Power4.0hp/3600rpm Fuel tank capacity:3.5L
wheel:φ450*700mm length about armrest flat:1900mm
Height about Arm stand:1400mm
Packing size:1160x900x1100mm
Walk behind double wheel diesel manual road roller HD-600
Vibration frequency:75HZ Work weight:530kg
Vibration force:20KN Water tank capacity:20LDrive:Hydraulic pump and motor
Vibration:Mechanical transmission - electromagnetic clutch)
Engine model:CF178F Diesel engine: air cooling 4 stroke)
Power:4.0hp/3600rpm Fuel tank capacity:3.5L
wheel:φ450*750mm length about armrest flat:2450mm
Height about Arm stand:1800mm
Packing size:1460x810x1230mm
Walk behind double wheel diesel manual road roller HD-700
Vibration frequency:70HZ Work weight:570kg
Vibration force:25KN Water tank capacity:30L
Vibration:Mechanical transmission - electromagnetic clutch)
Engine model:CF180F Power 7hp/3600rpm
Engine: Diesel engine, air cooling 4 stroke
Fuel tank capacity:3.5L wheel:φ350*700mm
length about armrest flat:2460mm
Height about Arm stand:1800mm
Packing size:1460x910x1230mm
Ride on diesel road roller one ton HW-Z1000
Net weight: 1000kg Water tank capacity of 60L
Outside turning radius:2.4m
Forward / backward speed : 0-100m / min
Vibration Hertz : 60HZ (3600rpm)
Excitation force:30 KNEngine: Changchai engine
Engine type: four-stroke, three-cylinder, water-cooled
Engine Model :3M78 Rated power : 24Hp
Displacement :0.487L Battery Pack : 12VDC
Air Filter Type: G042544 (Donaldson)Fuel type :diesel
Fuel tank volume: 30L
