Home > Products > Hydraulic small hole punching machine price
Hydraulic small hole punching machine price
Click on the image to view the original image
Product： views：4Hydraulic small hole punching machine price
Branch： HW
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:34
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Construction works
Condition:
New
CNC or Not:
Normal
Power Source:
Hydraulic
Place of Origin:
Shandong, China
Brand Name:
HW
Voltage:
380V/220V Optional
Dimension(L*W*H):
220*80*330mm
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, No after-sales service, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
Automatic
Pressure capacity:
31T--100T
Weight:
18-80KGS, 18-80KGS
Model Number:
CH60
punching hole:
5--22mm
Power(W):
750W
Supply Ability
Supply Ability:
1000 Set/Sets per Day
Packaging & Delivery
Packaging Details
export standard wooden box
Port
Qingdao/Shanghai/Tianjin/Ningbo
Lead Time:
Quantity(Sets)1 - 1000 >1000
Est. Time(days)7To be negotiated
Product Description

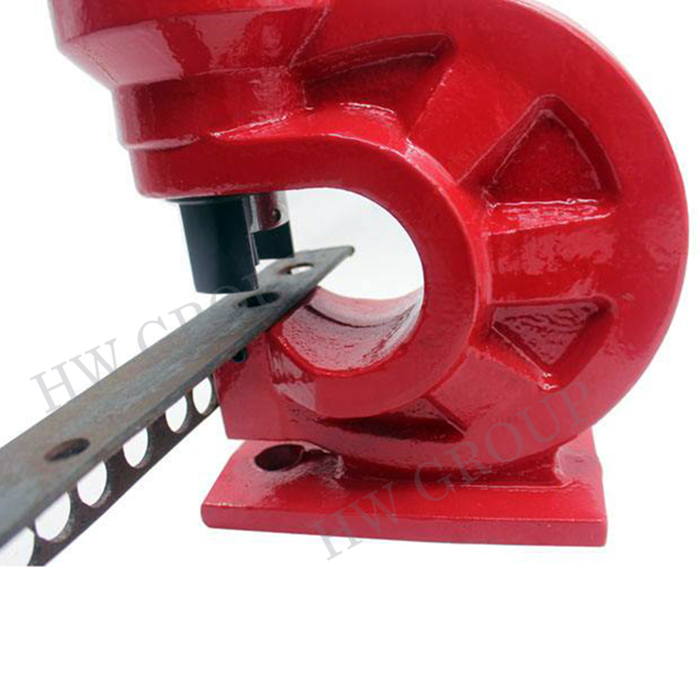

Low price punching hole machine metal sheet punch press machine for sale Introduction

HW -60/70/80/100 eyelet punching machine is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.

SPECIFICATIONS FOR PUNCHING MACHINE
Type
Output
Throat Depth
Model(mm)
Weight
Thickness iron/steel
HW-60
31T
95mm
10.5,13.8,17.5,20.5mm
19.5kgs
6mm/10mm
HW-70
35T
110mm
10.5,13.8,17.5,20.5mm
28kgs
10mm/12mm
HW-80
50T
115mm
16,18,22,25mm
50kgs
16mm/20mm
HW-100
100T
125mm
16,18,22,25mm
80kgs
20mm/20mm
