- Applicable Industries:
- Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining
- Condition:
- New
- Type:
- Rotary Drilling Rig
- Power Type:
- Diesel
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Usage:
- Water Well
- Voltage:
- 380V
- Dimension(L*W*H):
- 3400*1500*2400
- Weight:
- 3500kg
- Certification:
- ISO
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
- Product name:
- pneumatic water well drilling rig(crawler)
- Drilling depth:
- 150m
- Drilling diameter:
- 130-219mm
- Engine:
- Disel Engine
- Drill rod length:
- 1.5m
- Feature:
- High Drilling Efficiency
- Color:
- Customised
- Drill swing speed:
- 48-70rpm
- Air Pressure:
- 1.45-2.5Mpa
- Air consumption:
- 15-27CBM/min
- Supply Ability:
- 500 Set/Sets per Month
- Packaging Details
- wooden case
- Port
- Qindao or any port in China
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 1 >1 Est. Time(days) 5 To be negotiated

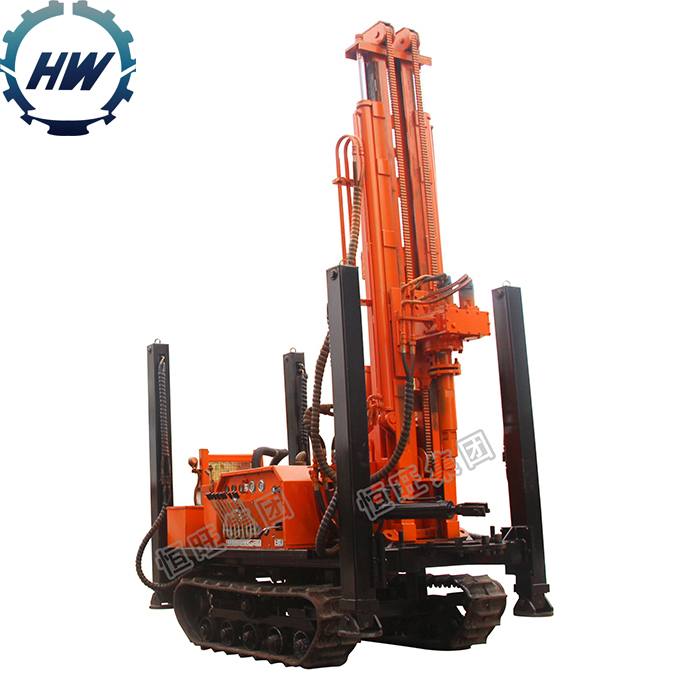

Pneumatic Water Well Drilling Rig(Crawler)
HQZ series of well drilling rig is a lightweight, efficient, versatile drilling hole equipment, which is mainly applied in drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering. The rig can be Chuanzao work on different formations, drilling diameter up to 245mm. The rig adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. Unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console, easy to operate.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Pre-Sales Service.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
