yn27j gasoline rock drilling machine petrol Powered Yn27c

Click on the image to view the original image

Product：	views：4yn27j gasoline rock drilling machine petrol Powered Yn27c
Branch：	HW
Type：	Gasoline
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:35

Product Details

Overview

Quick Details

Condition:: New

Type:: Gasoline

Power Type:: Gasoline

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: Rock drill

Dimension(L*W*H):: 746*315*229mm

Weight:: 27KG

Certification:: ISO9001

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, No after-sales service

Drilling depth:: 6m

Feature:: High Drilling Efficiency

Color:: Customised

Model:: YN27C

Drilling diameter:: 26-46mm

Supply Ability

Supply Ability:: 1000 Unit/Units per Week

Packaging & Delivery

Packaging Details: wooden case

Port: shanghai qingdao dalian shenzhen ningbo

Lead Time:

Quantity(Units)	1 - 1000	>1000
Est. Time(days)	8	To be negotiated

Product Description

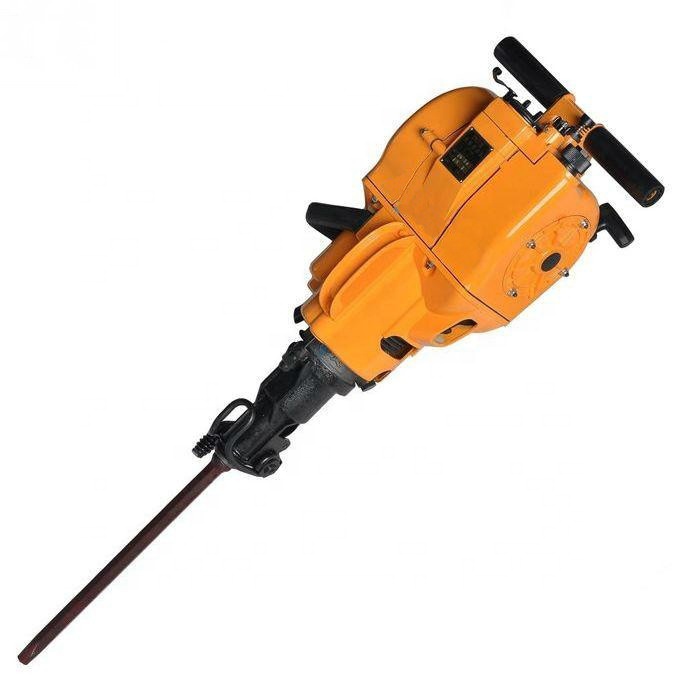

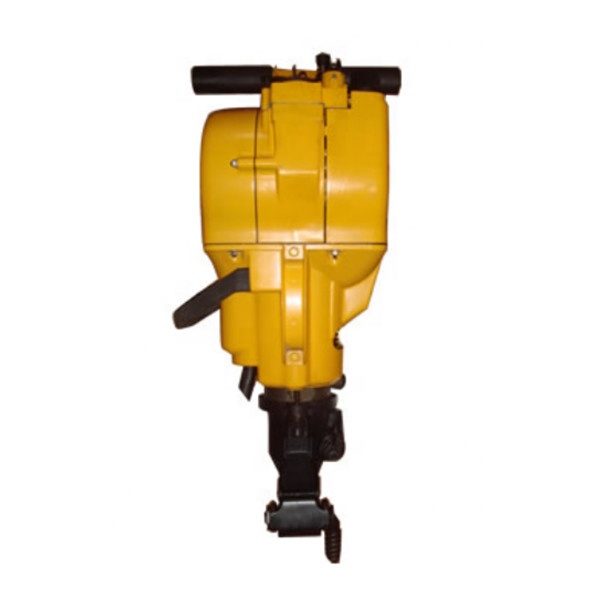

YN27C Hand-Held Gasoline Rock Drill/ Petrol Rock Drill Jack Hammer/Rock Drilling

Contact for more models and prices
YN27C Hand-Held Gasoline Rock Drill/ Petrol Rock Drill Jack Hammer/Rock Drilling is a hand-operated rock-drilling tool, composed of a small gasoline engine, an air compressor and rock drill.
Its outstanding characteristic is that the stated functions can be realized by changing the hand handle according to the requirements without changing the inner parts of the machine head. Available for drilling, splitting breaking, ramming, shoveling. And widely used in mining ,road construction, quarrying and national defense construction.
The Internal Combustion Rock Drill Type YN 27C has functions of drilling holes, cleavage, bruising, tamping and chiseling.

SPECIFICATIONS FOR YN27C PETROL ROCK DRILL
Model		YN27C
Weight		27kg
Dimension		746315229mm
Function		Drilling
Type of carburetor		Hand needle valve, no floating type
Diameter of engine piston		Φ58mm
Stroke of engine piston		70mm
Rotating speed of engine		≥2450R/min
Rotating speed of drilling rod		≥250R/min
Oil consumption		≤0.12L/min
Max. drilling depth		6m
Tank capacity		≥1.14 L
Shank size		Hex22x108mm
Mixture ratio of gasoline and lubrication oil		0.500694444
