China hydraulic rock core drilling rig cheapest price

Click on the image to view the original image

Product：	views：4China hydraulic rock core drilling rig cheapest price
Branch：	HengWang
Type：	Core Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:36

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HengWang

Usage:: Ore

Voltage:: 220V/380V

Dimension(L*W*H):: 3030*1100*1890mm

Weight:: 2300 kgs

Certification:: ISO

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field maintenance and repair service

Max .lifting capacity (single line):: 45KN

Electric motor:: 45KW

Steel Wire Cable Dia:: 18.5mm

Max .feeding capacity:: 90KN

Diesel engine:: 62kw

Max.torque of spindle:: 4300N.m

Drilling depth:: 1000m

Drill rod diameter:: 42/50/60/71/89mm

Spindle Speed(r/min):: 60-1476

Maxinum Spindle Torque(N.M):: 8000

Supply Ability

Supply Ability:: 1000 Set/Sets per Month

Packaging & Delivery

Packaging Details: Standard wooden case for XY-44A mining diamond Core drilling machine

Port: QIngdao

Lead Time:

Quantity(Sets)	1 - 1	>1
Est. Time(days)	3	To be negotiated

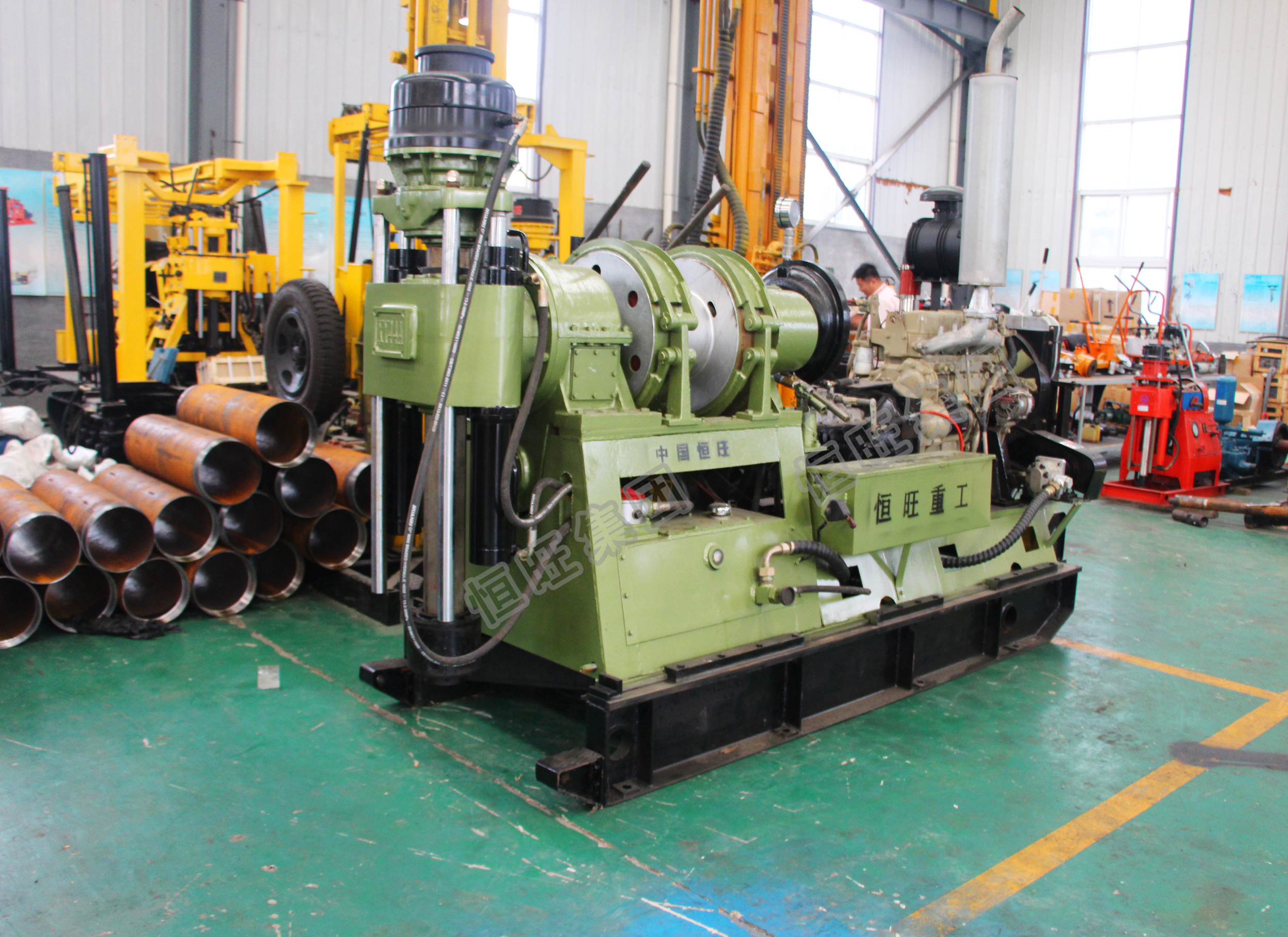

Soil Testing XY-44A Rock Core Drilling Machine Price For Sale Introduction

1. XY-44A is a core drilling machine, more rational rang of rotating is available and its rotating speed has 8 grades. With powerful drilling capacity, the rated drilling depth comes up to 1,000m with wire line 71mm drill rod.

2. The drill is aligned a water brake for Steady and smooth deep hole drilling.

3. Supplying oil with a simplex gear pump, it is easy for installation and operation; The hand-operated oil pump can be put in use to hoist the drilling tools in hole upon the power engine failing to operate.

4. It is easy to get to know the conditions in hole with an antivibration meter. Less in operating handles, the rig can be operated credibly and flexibly.

5. It is compact in construction, rational in overall arrangement, moderate in weight, convenient in assembling and wide in range of rotation speed.

Applications:

1. Core drilling with carbide and diamond bit.

2. Engineering geological prospecting.

3. Water well drilling.

4. Basic pile foundation engineering in large diameter.

Soil Testing XY-44A Rock Core Drilling Machine Price For Sale Parameter

Model of drilling rod		Drill rod	Drill depth(m)
Drill Rod Made in China	Planer in and out	Φ43×6	1500
		Φ54×6	1100
		Φ67×6	930
	Thickened Inner drill pipe	Φ50×5.5	1400
	Thickened Inner drill pipe	Φ60×6	1050
	Wire-line drilling rod	Φ55.5×4.75	1500
		Φ71×5	1100
		Φ89×5	900
DCDMA (Diamond Core Drill Manufacturer Association) made Drill Rod	Thickened Inner drill pipe	BW	1250
		NW	1000
		HW	660
	Core with Wire Line	BQ	1500
		NQ	1200
		HQ	850

Spindle speed	Forward speed:80;148;212;247;308;456;650;945;rpm
	Reverse speed:66;201rpm
Stroke of spindle	600mm
Max .lifting capacity	120KN
Max.torque of spindle	4300N.m
Max .feeding capacity	90KN
Hoist (Type: Planetary gearing transmission)	Steel Wire Cable Dia	18.5 mm
	Max .lifting capacity (single line):	45KN
	Power eng speed :1500r/min	0.70; 1.29; 1.84; 2.68 m/s
Clutch:	Type: Dry single chip friction clutch
Gearbox	Type: Sliding Gear Gearbox (4 positive speeds and 1 negative speed)
Oil Pump	Type: Single Gear Pump
Power	Electric motor:	45kw
	Diesel engine	62kw
Water Brake	Working Speed: 700 ~ 1800 rpm
	Single Rope Compensational Speed:3~8m/s
	Single Rope Compensational Load:45kN
Dimensions (L×W×H):	3030×1100×1890mm
