- Power(W):
- 5KW
- Dimension(L*W*H):
- 112*75*86 cm
- Weight:
- 80KG
- After-sales Service Provided:
- Free spare parts, Video technical support, Online support, No after-sales service, Field installation, commissioning and training
- Warranty:
- 1 Year
- Applicable Industries:
- Construction works
- Condition:
- New, New
- Place of Origin:
- Shandong, China
- Brand Name:
- HengWang or OEM
- Features:
- Hydrualic Airless
- Certification:
- ISO:9001
- Product name:
- Airless Sprayer
- Model:
- HW-HXJ-01
- Engine power:
- 5KW
- Power type:
- Gasoline
- Spray Diameter:
- 50-250mm
- Hose capacity:
- 40Mpa
- Flow:
- 8L/min
- Output pressure:
- 3000PSI
- Machine Weight:
- 80KG
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 60X50X50 cm
- Single gross weight:
- 65.0 kg
- Package Type:
- wooden case
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 10 >10 Est. Time(days) 7 To be negotiated

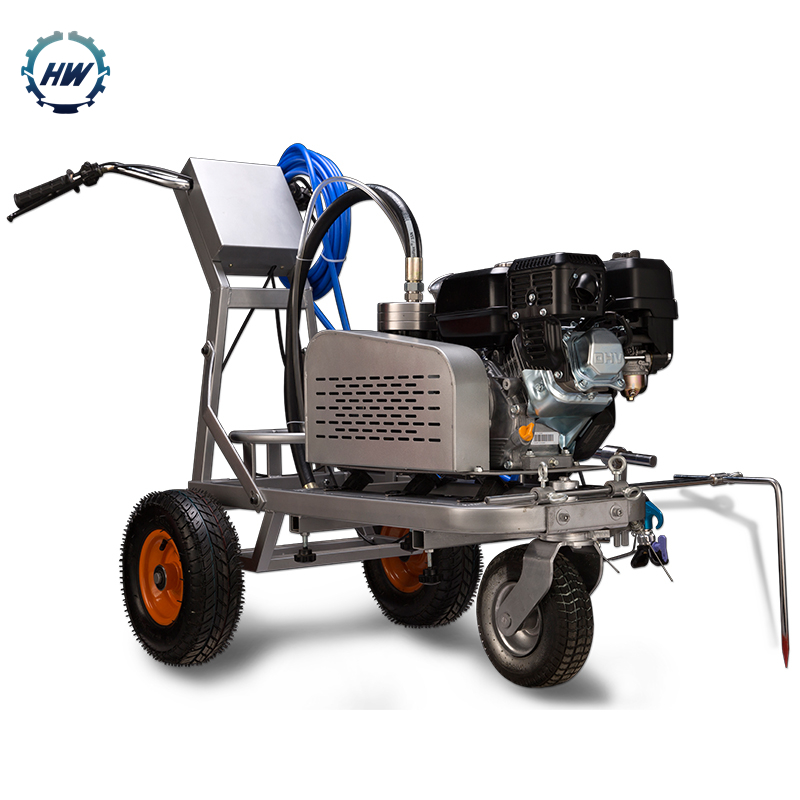

HengWang Road marking mahine
The Road Marking Machine has the following features as high flow capacity, wide application scope and easy operation. It is suitable for both the spray of ordinary paint and that of higher viscosity paint, such as oil paint, alkyd resin lacquer, nitro lacquer, epoxy resin lacquer and other kinds of paint.
Structure & Function:
1. Airless spraying painting technology for which the high-pressure pump is driven by a gasoline engine has been adopted in the line marking machine to create clear, smooth, saturating and even limes, providing a high working efficiency.
2. Both sides of the spraying gun are equipped with a paint-limiting plates, ensuring the line free of raw edges. Such plates may be lift through a pulling line in steering, turning flexibly.
3. The spraying gun may be conveniently dismantled to change different nozzles and control the line width, suitable for common airless spraying for marks or labels.
4. It runs by pushing, with convenient turning, reliable orientation, and flexible turning.
Tips:
The direction and speed of the spray gun should be consistent with the direction of the spray. With the uniformity of the vertical layer of the spray fan, the speed of the spray gun should be stable, preferably 300-400/S mm. If the speed is too fast, the coating is too thin and the coating is too thick.
If the gun distance is too small, the pressure of spraying is too large, the impact force is also large, and the burrs are prone to occur. If the gun distance is too large, the spray is too uneven. And the spray width is too large, so that the applied material is partially sprayed too little, and the coating film does not reach the thickness requirement.
HW-HXJ-01
Srapy gun*1
Nozzle*1
High pressure hose*1
Feed pipe*1
Pressure gage*1
Spanner*1
HW-HXJ-02
Srapy gun*2
Nozzle*2
High pressure hose*2
Feed pipe*1
Pressure gage*1
Spanner*1
HW-HXJ-01/02
Excellent design
Beautiful appearance
Stainless steel frame as a whole
Support OEM and Custom
Damping system
Shock absorption structure design
Thickened frame
Smooth body and reduce machine vibration
Sensitive handbrake
The brakes are flexible and the handlebars are easy to grip.
Easy and safe to operate
Positioning wheel
Precision positioning wheel, inspired by international first-line design
The card position design does not shake, accurately positioning the straight line
Powerful Engine
China"s outstanding engine brand
Strong power and low fuel consumption
Long-term use does not require maintenance
Can change other brands according to customer needs.
Precision pressure gauge
Real-time observation of pressure
Independent positioning ruler
Exclusive design independent positioning ruler with five cm line special design, no flash without gap
Stainless steel pump head
High-quality compression resistance, ensuring that it is not damaged when the pressure is too high
