Click on the image to view the original image
- Condition:
- New
- Type:
- Core Drilling Rig
- Power Type:
- Diesel
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Usage:
- coal / ore / water well
- Dimension(L*W*H):
- 2800*1500*2460mm
- Weight:
- 6500kg
- Certification:
- ISO9001
- Warranty:
- 3YEAR
- After-sales Service Provided:
- Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
- Product name:
- Hydraulic drilling rig
- Model:
- XY-3
- Electric unit:
- 75KW
- Electric unit.:
- 1480r/min
- Diesel engine:
- 177KW
- Diesel engine.:
- 2300r/min
- Revolver:
- Feed with double cylinders oil hydraulic
- Splindle L.D:
- 96mm
- Max.torque of spindle:
- 12500N.m
- Spindle stroke:
- 1000mm
- Supply Ability:
- 10 Set/Sets per Month
- Packaging Details
- wooden case
- Port
- Qingdao or any chinese port
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 5 >5 Est. Time(days) 20 To be negotiated

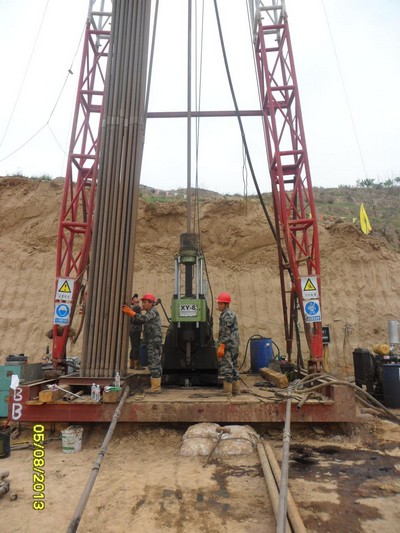

XY-8 Drilling Rig
The XY-8 drilling rig is a core drilling rig developed with the advantages of similar core drilling rigs at home and abroad. It is mainly suitable for large and small diameter core drilling mainly based on alloy and diamond. It is suitable for metal and non-metal solid mineral exploration, shallow oil and gas exploitation, geothermal well exploration, mine tunnel ventilation, drainage and large diameter foundation. Pile engineering construction is widely used in geology, metallurgy, coal, hydrology, water wells, engineering and other fields.
main feature:
1. Adopt Shaanxi Fast 8JS118 automobile gearbox and clutch, special soft shaft shifting mechanism for automobile, realize gearbox pneumatic auxiliary shifting, remote control,
Lightweight and agile, with a reasonable range of speed (for 8 revolutions, 1 reverse), stable performance and good versatility of components.
2, low speed torque up to 12500N.m, good detachability, rig net weight of 6500Kg.
3. The company"s patented forced lubrication mechanism and hydraulic system air cooler are used to avoid heat generation of high-speed and high-load components, improve hydraulic system working efficiency and hydraulic component life.
3. Replace the hexagonal vertical shaft with the involute spline vertical shaft, and the output torque capacity is doubled. And the vertical shaft through hole diameter is 96mm, and the double cylinder hydraulic pressure can reach the process.
1000mm, especially suitable for large diameter drill pipe rope core drilling, the diameter of the 71mm diameter core drill pipe is rated to 2200 meters.
4. It adopts double gear pump to supply oil, realizes hydraulic splitting and confluence, less power consumption, low hydraulic temperature of hydraulic system and stable operation. The hand pump is installed in the system to effectively avoid the drilling accident.
To protect your benefit!
1. Unconditionally refunding your money, in 7 days after paying.
2. Unconditionally refunding your money, if you are not satisfied with quality after receiving goods.
3. Alibaba Trade Assurance Order online is supported and welcomed, your money will be in safety.
1 YEAR WARRANTY , If any parts break down within warranty we will send you free part !!!
Although out of the WARRANTY, we can offer you the part in cost price !!!
We are a supplier with good credit on Alibaba :
- No COMPLAINT and VIOLATION.
- No CUMULATIVE PENALTY.
- No SERIOUS INFRINGEMENT.
Welcome to visit our factory! For evey visitor we will offer :
- Airport pickup.
- Free hotel.
- Eating.
- Entertainment.
- Let your business trip like a comfortable sightseeing!
Action now
- To send an inquiry or message to us online.
- To get one set powerful machhine in so many kinds of product.
- To get more details.
- To know our more warranty, guarantee and responsibility.
- To know every kinds of our products.
- Or contact us, Mob / WhatsApp / WeChat: +86 15998722880, Email : hw019 @hengwanggk.com
Alan Lu
