- Power(W):
- 5.7KW
- Travel Speed:
- 0-8KM/H
- After-sales Service Provided:
- Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
- Warranty:
- 1 Year
- Condition:
- New
- Type:
- Double Drum Roller
- Grade Ability:
- 35%
- Place of Origin:
- Shandong, China
- Brand Name:
- HengWang
- Dimension(L*W*H):
- 1420*660*1850
- Weight:
- 660KG
- Certification:
- CE ISO
- Vibration frequency:
- 75HZ
- drive:
- Hydraulic pump and motor
- water tank capacity:
- 30L
- Exciting force:
- 30KN
- Wheel width:
- 620mm
- Wheel diameter:
- 426mm
- Color:
- Customer's Demands
- starting mode:
- hand and electric
- Travel motor:
- Danfoss
- Hydraulic pump:
- Danfoss
- Supply Ability:
- 500 Set/Sets per Month
- Packaging Details
- standard wooden case
- Port
- Qingdao
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 1 >1 Est. Time(days) 5 To be negotiated

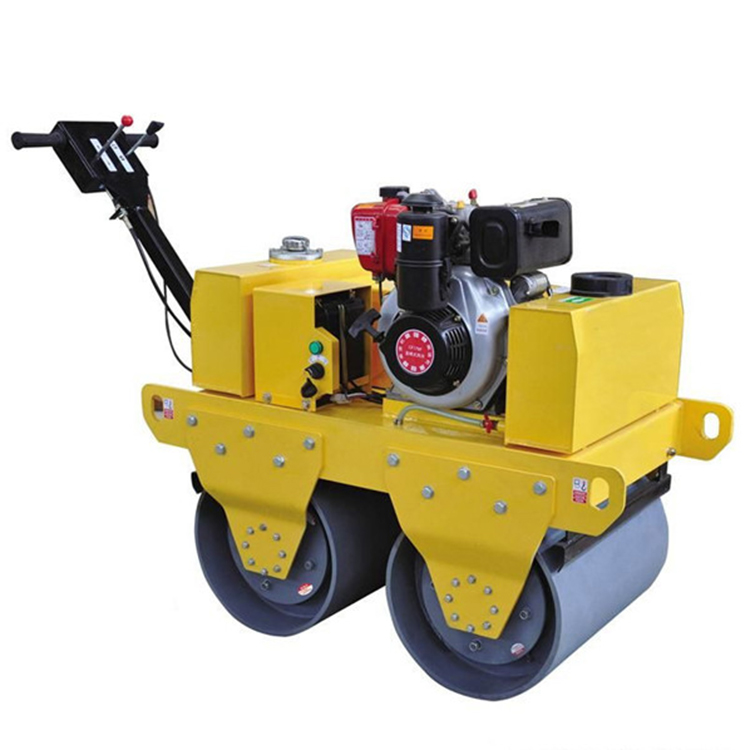

HW-660 Walk-behind Hydraulic Road Roller
1:The small walk behind manual road roller belongs to the category of road equipment in construction machinery. Road roller is widely used in the filling and compacting of large-scale projects such as high-grade roads, railways, airport runways, dams and stadiums. Small walk behind manual road roller can crush sand, semi-stick and sticky soil. Subgrade stabilized soil and asphalt concrete pavement layer.
2:This mini road roller compactor most suitable for compaction of asphalt surface, compaction of gravel, sand and other projects.The walk-behind vibratory rollers are small-size vibratory roller, applied to mending and maintaining various roads, expressway shoulder, roadside walk, parking area, sports ground and garden lawn. They are especially suited for compaction of narrow areas as pipeline channel and drainage trench etc.
Small walk behind manual road roller features:
1).Operating radius is small, can work in a small area;
2).HONDA Petrol engine or famous diesel engine,international brands,quality assurance,superior performance, easy start;
3)The transmission mechanism of famous hydraulic drive system,and infinitely variable Vibratory speed,reversing is convenient,service life long.
4)Deisel power with electric startup,light and flexible.
5)Dual vibration mode and Dual drive, ensure whole compaction and climbing ability.
Walk behind single wheel diesel manual road roller HW-YL600C
Work weight:350kg Walking speed: 0-4km/h
Vibration frequency:75HZ Vibration force:20kN
Vibration:Mechanical transmission - electromagnetic clutch)
Engine model:CF170 Diesel engine: air cooling 4 stroke)
Power4.0hp/3600rpmFuel tank capacity:2.5L
wheel:φ450*600mm length about armrest flat:1650mmHeight about Arm stand:1300mm
Packing size:1160x900x1100mm
Walk behind single wheel diesel manual road roller HW-YL700
Work weight:520kg Walking speed: 0-4km/h
Steering radius :30% Vibration frequency:75HZ
Vibration force:20kN Water tank capacity:20L
Vibration:Mechanical transmission - electromagnetic clutch)
Engine model:CF178 Diesel engine: air cooling 4 stroke)
Power4.0hp/3600rpmFuel tank capacity:3.5L
wheel:φ450*700mm length about armrest flat:1900mm
Height about Arm stand:1400mm
Packing size:1160x900x1100mm
Walk behind double wheel diesel manual road roller HW-YLS600B
Vibration frequency:75HZ Work weight:530kg
Vibration force:20KN Water tank capacity:20LDrive:Hydraulic pump and motor
Vibration:Mechanical transmission - electromagnetic clutch)
Engine model:CF178F Diesel engine: air cooling 4 stroke)
Power:4.0hp/3600rpmFuel tank capacity:3.5L
Wheel:φ450*750mm length about armrest flat:2450mm
Height about Arm stand:1800mm
Packing size:1460x810x1230mm
Walk behind double wheel gasoline road roller HW-YLS600
Vibration frequency:75HZ Work weight:520kg
Vibration force:30KNWater tank capacity:30L
Vibration:Mechanical transmission - electromagnetic clutch)
Engine model:GX270Power4.0hp/3600rpm
Engine: Petrol engine, air cooling 4 stroke
Fuel tank capacity:6L wheel:φ450*600mm
Length about armrest flat:2450mm
Height about Arm stand:1800mm
Packing size:1460X810X1230mm
Walk behind double wheel diesel manual road roller HW-YLS635
Vibration frequency:75HZ Work weight:700kg
Vibration force:20KNWater tank capacity:25L
Vibration:Mechanical transmission - electromagnetic clutch)
Engine model:CF180FPower 7hp/3600rpm
Engine: Diesel engine, air cooling 4 stroke
Fuel tank capacity:6L wheel:φ350*635mm
Length about armrest flat:2360mm
Height about Arm stand:1700mm
Packing size:1460x810x1230mm
Walk behind double wheel diesel manual road roller HW-YLS700A
Vibration frequency:70HZ Work weight:570kg
Vibration force:20KNWater tank capacity:30L
Vibration:Mechanical transmission - electromagnetic clutch)
Engine model:CF180F Power 7hp/3600rpm
Engine: Diesel engine, air cooling 4 stroke
Fuel tank capacity:3.5L wheel:φ350*700mm
Length about armrest flat:2460mm
Height about Arm stand:1800mm
Packing size:1460x910x1230mm
Ride on diesel manual road roller one ton HW-JSY700A
Net weight :1000kg Tank volume: 50L
Outside turning radius : 2.0 m
Forward / backward speed :0-100 m / min
Vibration Hertz HZ (vpm): 60 (3600)Excitation force: 30KN Steel wheel :φ 530*700mm
Engine type: four-stroke, single cylinder, air-cooled
Engine Model :CF186F Rated power: 8.8Hp
Displacement :0.487L Battery Pack: DC12V
Air Filter Type: G042544 (Donaldson) Fuel type :diesel
Fuel tank volume :5L
Ride on diesel manual road roller one ton HW-JSY900A
Net weight: 2000kg Water tank capacity of 60L
Outside turning radius:2.4m
Forward / backward speed : 0-100m / min
Vibration Hertz : 60HZ (3600rpm)
Excitation force:30 KNEngine: Changchai engine
Engine type: four-stroke, three-cylinder, water-cooled
Engine Model :3M78 Rated power : 24Hp
Displacement :0.487L Battery Pack : 12VDC
Air Filter Type: G042544 (Donaldson)Fuel type :diesel
Fuel tank volume: 30L
