- Weight:
- 13kg, 20.5--36kgs
- Warranty:
- 1 Year
- Condition:
- New
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Type:
- Internal
- Drive Mode:
- Electric Vibrator
- Length of Flexible Shaft:
- 4-6m, 2,3,4 m, 4-6m, 2,3,4 m
- Voltage:
- 380V
- After-sales Service Provided:
- Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support, No after-sales service
- Model Number:
- HWZDB3
- Engine:
- Honda GX160 5.5HP
- Material:
- Stainless Steel
- Name:
- Concrete Plate Vibrator
- Power:
- 5.5HP, 5.5HP
- Supply Ability:
- 10000 Set/Sets per Week
- Packaging Details
- standard export wooden box.
- Port
- Qingdao/Shanghai/Tianjin/Dalian
- Lead Time:
Quantity(Sets) 1 - 10000 >10000 Est. Time(days) 7 To be negotiated

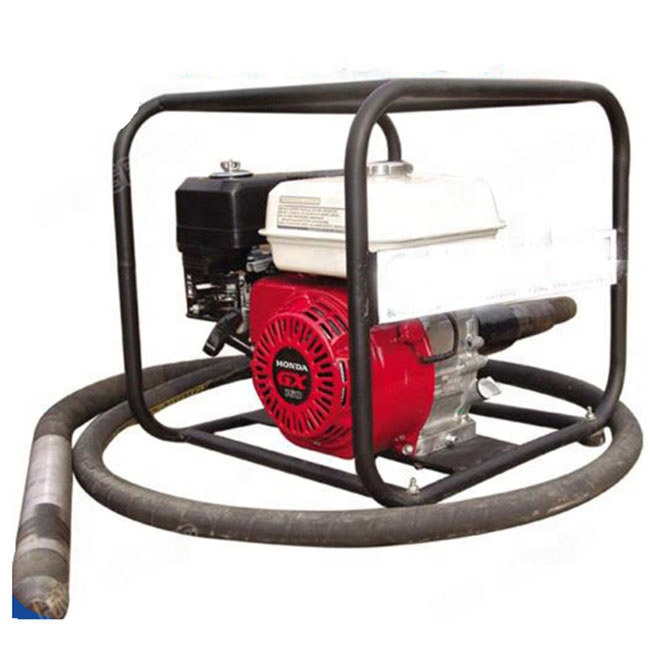

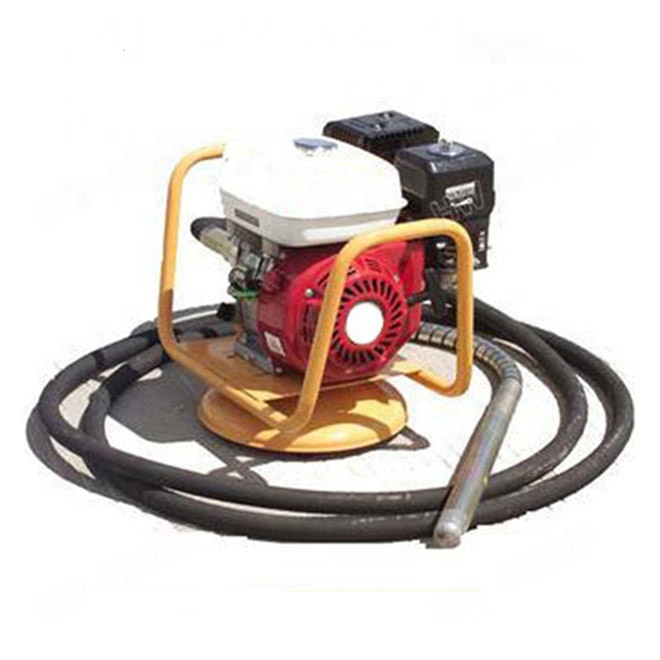

Portable honda gasoline surface concrete vibrator for sale Introduction
1. Used to consolidate cement and remove all the trapped air bubbles to give you the toughest cement possible, widely used in construction, transportation, water conservancy, port, mine and metallurgy, etc.
2. It is transmitted by flexible shaft, speed increased through planet structure, then gain high frequent vibration.
3.It can be adapted to every type of application, vibrator heads and shafts can be easily combined and rapidly exchanged to match the right equipment to the job.
Petrol Engine Vibrator HosesConcrete vibrator electric price kenya
SPECIFICATIONS FOR CONCRETE VIBRATOR MACHINE | |||||
Model | Output Power (kw) | Power Supply (v/hz) | Vibrating Amplitude (mm) | Centrifugal Force(kn) | Weight(kgs) |
HWZDB1 | 0.03-0.09 | 380/50 | 1.5-2.1 | 1-0 | 4.4 |
HWZDB2 | 0.18 | 380/50 | 2.3 | 1 | 7.5 |
HWZDB3 | 0.25 | 380/50 | 1.8 | 1.8 | 12 |
HWZDB4 | 0.55 | 380/50 | 1.64 | 4.15 | 21.5 |
HWZDB5 | 0.8 | 380/50 | 2 | 2.6 | 27 |
Main Features
1).Aluminum alloy casing, for better thermal diffusivity, which insure stability;
2).Copper wires for better electric conductiility;
3).T-series vibrator can adjust the vibrating amplitude according to use"s need;
