Overview
Quick Details
- Condition:
- New
- Type:
- Rotary Drilling Rig
- Power Type:
- Pneumatic
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Usage:
- Coal, rock
- Voltage:
- No electric
- Dimension(L*W*H):
- 810*380*280mm
- Weight:
- 26kg
- Certification:
- ISO:9001
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support, Free spare parts, Online support
- Name:
- YT28 rock drill
- Diameter of the cylinder body:
- 80mm
- piston stroke:
- 60mm
- working air pressure:
- 0.5-0.6 Mpa
- impacting frequency:
- ≥37HZ
- Airconsumption:
- ≤81 L/S
- Pipe diameter:
- 25mm
- The drill bit diameter:
- 34-42mm
- The bit shank diameter:
- 22*108±1mm
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 70X30X20 cm
- Single gross weight:
- 30.0 kg
- Package Type:
- WOODEN CASE

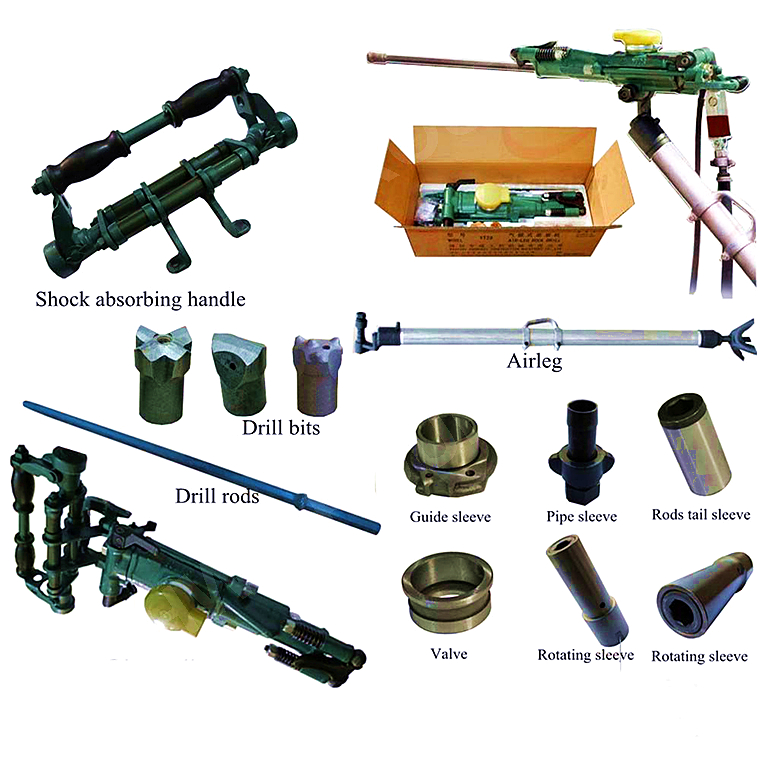

- Picture Example:
- Lead Time:
Quantity(Set) 1 - 50 >50 Est. Time(days) 7 To be negotiated
