Hot sale forklift truck for 2000kg/AC Motor 48v forklift electric motor/electric forklift price

Click on the image to view the original image

Product：	views：4Hot sale forklift truck for 2000kg/AC Motor 48v forklift electric motor/electric forklift price
Branch：	Hengw
Type：	Powered Pallet Truck
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:37

Product Details

Overview

Quick Details

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: Hengw

Type:: Powered Pallet Truck

Power Souce:: AC Motor

Max. Lifting Height:: 3.5m

Min. Lifting Height:: 1.6m

Fork Length:: 1070mm

Fork Width:: 175mm

Overall Dimensions:: 2000*860*2080mm

Certification:: CE/ISO9001

Warranty:: 1 Year

After-sales Service Provided:: Online support

Load Capacity:: 2000kg

Lift Height:: 3000mm

Lowest height:: 25mm

Manipulation Way:: hand

Dimension of Driving Wheel:: 250*80

Speed at Full Load:: 5km/h

Lifting Speed at full Load:: 90mm/sec

Gradient at full Load °:: 8

Battery V/Ah:: 24/180

Supply Ability

Supply Ability:: 1000 Set/Sets per Month

Packaging & Delivery

Packaging Details: Wooden box

Port: Qingdao

Lead Time:

Quantity(Sets)	1 - 1	>1
Est. Time(days)	5	To be negotiated

Product Description

Electric Forklift

We have electric pallet truck,electric stacker,counterbalanced electric stacker,electric stacker with wide legs,electric reach stacker,electric reach forklift truck stand-on,electric reach forklift truck seated,

The following type is the description for full electric forklift truck , full electric stacker,etc.
1.All electric forklift stacker refers to electricity for homework, most are battery to work.
2.And the battery is one of the battery, its role is to be able to keep the limited electricity used in the right place.
3.Its working principle is to convert chemical energy into electricity.
4.All electric forklift battery built-in also is this kind of battery.

SPECIFICATIONS FOR HW2030 ELECTRIC FORKLIFT
Model/Specification	HW1030	HW1530	HW2030
Load Capacity	1000kg	1500kg	2000kg
Lift Height	3000mm	3000mm	3000mm
Load Center	500mm	500mm	500mm
Fork Length	1070mm	1070mm	1070mm
Lowest height	25mm	25mm	25mm
Manipulation Way	Handle	Handle	Handle
Tyres	Nylon/polyamine wheels	Nylon/polyamine wheels	Nylon/polyamine wheels
Dimension of Driving Wheel	250*80	250*80	250*80
Speed at Full Load	5km/h	5km/h	5km/h
Lifting Speed at full Load	90mm/sec	85mm/sec	80mm/sec
Speed Control Way	Stepless speed regulation	Stepless speed regulation	Stepless speed regulation
Gradient at full Load °	10	8	8
Battery V/Ah	24/180	24/180	24/180
Working Time(for reference)	8h	7h	7h
Driving Motor	1.2kw	1.2kw	1.5kw
Lifting Motor	2.2kw	2.2kw	3kw
The Min. Turning Inner Radius	1250mm	1250mm	1250mm
LWH Dimension	20008602080mm	20008602080mm	20008602080mm
weight	680kg	700kg	750kg
Lifting Height at each weight	1600/2000/2500/3000/3500mm
	2080/1600/1850/2080/2350mm

Detailed Images

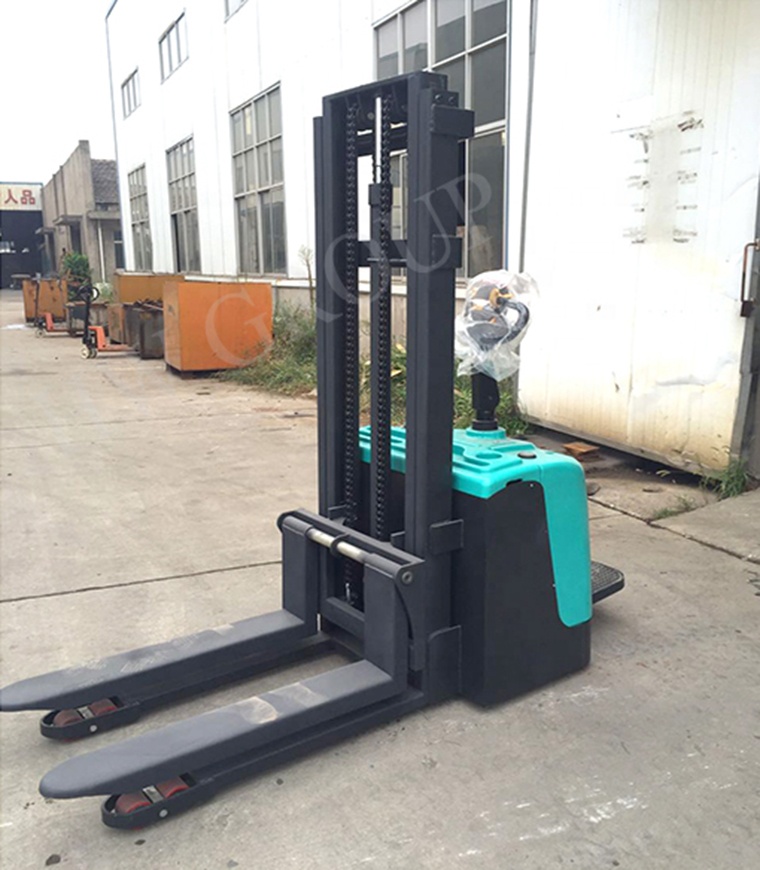

HW2030 ELECTRIC FORKLIFT.

1. The AC drive system makes the vehicle respond more quickly, control more precisely, run more smoothly and battery life longer.
2. Special design AC drive motor to provide more power.
3. Using the latest electronic steering handle can effectively reduce the strength and intensity required for work. It greatly reduces the power required for steering and improves the stability and comfort of driving.
4. Strong and durable frame structure ensures easy handling of heavy cargo forks.
5. The timer and meter can display the power usage at any time, so as to inform the operator to charge in time.
6. Convenient maintenance and replacement, improve work efficiency.
7. Battery size and capacity can be selected in a wide range, which is convenient for users to choose according to actual needs.
8. The design of the handle is in line with ergonomics. It is comfortable and convenient to operate. The position of the control button is designed scientifically and it is convenient to operate by right and left hands.
9. Electronic limit switch is installed on the portal frame to control the maximum lifting height of the portal frame accurately and prevent damage to the lifting motor.
