Home > Products > Road asphalt paver rubber track for sale
Road asphalt paver rubber track for sale
Click on the image to view the original image
Product： views：5Road asphalt paver rubber track for sale
Branch： HW
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:37
  Negotiated
Product Details
Overview
Quick Details
Production Capacity:
220t/h
Power(W):
93kw
Max. Paving Thickness:
250mm
After-sales Service Provided:
Video technical support, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, No after-sales service
Warranty:
1 Year
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HW
Dimension(L*W*H):
5800*2500*3100mm
Weight:
10t
Certification:
ISO
Work Speed:
3.01~8.87Km/h
Travel speed:
2.29- 16.74km/h
Screed Heating:
Gas
Screw Diameter:
350mm
Engine Model:
4JR3AG7
Track Shoe Width:
Wheel Type
Supply Ability
Supply Ability:
10 Set/Sets per Week
Packaging & Delivery
Packaging Details
Standard export wooden box
Port
Qingdao/Shanghai/Ningbo/Dalian/Tianjin
Lead Time:
Quantity(Sets)1 - 10 >10
Est. Time(days)7To be negotiated
Product Description

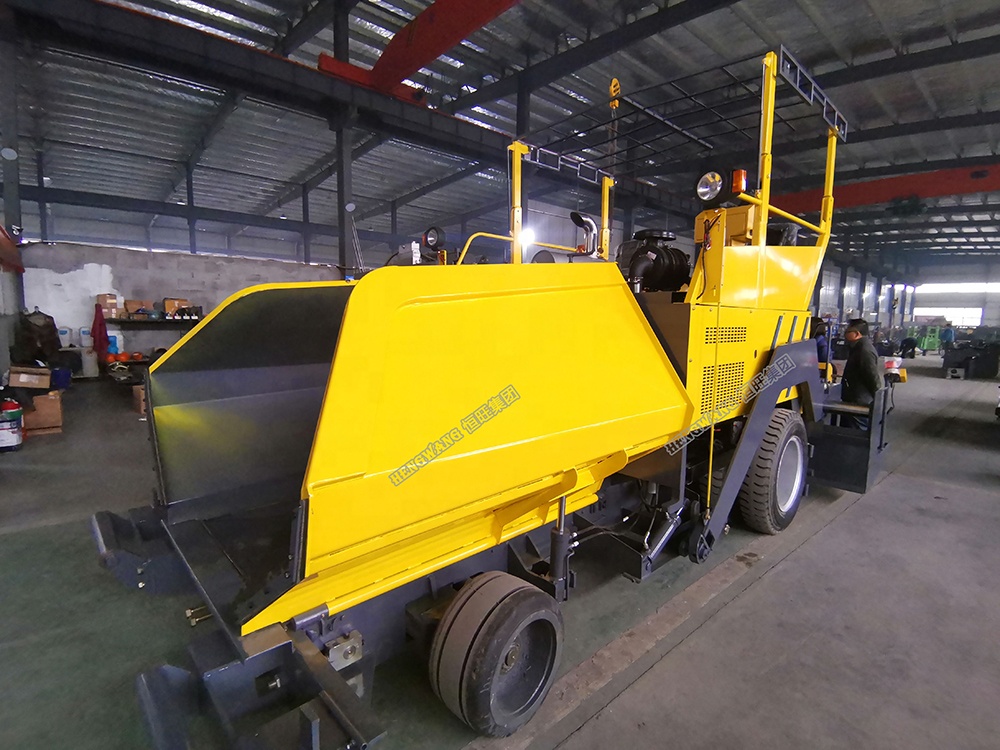

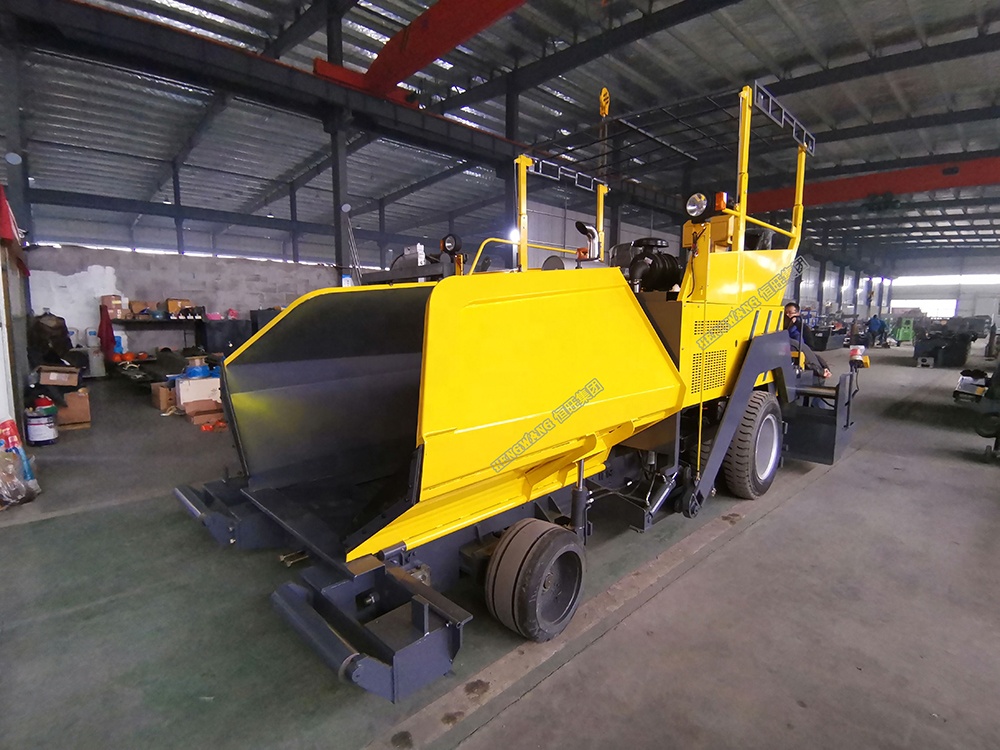

Asphalt paver machineMini Road asphalt paver rubber track for sale

The whole machine adopts full hydraulic drive and electro-hydraulic proportional control. It has the advantages of high automation level, good maneuverability, high system configuration and high paving quality. The track walking device system adopts left and right independent driving microcomputer control, with large traction and smooth and flexible steering. The meter-wide compact and compact body design, combined with the in-situ steering function, makes it ideal for paving construction in narrow areas and curved roads. It can be widely used in sidewalks, bicycle lanes, farm roads, and residential areas. Pavement pavement of small roads such as roads, and maintenance work for grade roads.

SPECIFICATIONS FOR ASPHALT PAVER MACHINE
Model
LT70A
LT80A
Paving width
3000-7000mm,stablized soil 5500
3000-8000mm, stablized soil 500
Max. Paving thickness
300mm, stablized soil 250
stablized soil 250
Theoretical productivity
400t/h
400t/h
Paving speed
400t/h2.00-6.25m/min
2.00-6.25m/min
Running speed
0.96-2.86km/h
0.96-2.86km/h
Drive system
Mechanical/hydraulic
Mechanical/hydraulic
Machine weight
16-18t
17-19t
Hopper capacity
12t
12t
Engine moedel&power
QSB3.9-C 125-30, Cummins,93kw
QSB3.9-C 125-30, Cummins,93kw
Track shoe width
300mm
300mm
Auto leving unit
made in china
made in china
Auger diameter
350mm
350mm
Screed extension mode
hydraulic extension, mechanical joint
hydraulic extension, mechanical joint
Screed vibration frequency
0-50hz
0-50hz
Fuel tank volume
190L
190L
Hydraulic tank volume
210L
210L
