Home > Products > Cheap 1.2 CBM self loading concrete mixer truck
Cheap 1.2 CBM self loading concrete mixer truck
Click on the image to view the original image
Product： views：4Cheap 1.2 CBM self loading concrete mixer truck
Branch： hengwang
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:37
  Negotiated
Product Details
Overview
Quick Details
Power(W):
78KW
Weight:
111500
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
Condition:
New
Place of Origin:
china
Brand Name:
hengwang
Dimension(L*W*H):
6350*2510*2850
Certification:
iso
Product name:
Concrete Mixer Truck
Driving type:
4 Wheel Driver
Actual stirring capacity:
2.4m3
Rated power:
78kw/2400 kw/r/min
running speed:
24kw/h
Min steering radius:
4500mm
Maximum load capacity:
5600kg
The wheelbase:
2300mm
Bucket capacity:
0.5m3
Keywords:
Concrete Pump Truck Mini
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
standard package
Port
Qingdao
Lead Time:
Quantity(Sets)1 - 1 >1
Est. Time(days)7To be negotiated

Cheap 1.2 CBM self loading concrete mixer truck

Product instruction

1.2 cubic meters Automatic feeding small concrete mixer truck

Combine concrete truck mixer with concrete mixer, self loading concrete mixer can automatic feeding, metering, and mixing to discharge, and more, it can realize the transportation and site construction operations, which greatly improves the work efficiency, reduce production cost and time.Cheap 1.2 CBM self loading concrete mixer truck

Advantage:Cheap 1.2 CBM self loading concrete mixer truck

.1. Italy leading design, automatic feeding mixing system
.2. Simple and convenient operation1Concrete Mixer 3m3 MIni Concrete Mixer Truck for sale
.3. High efficiency output, save time and labor, save cost
.4. The perfect combination of mixing truck and loading car.

Technology Parameter

pecifications
Actual stirring capacity2.4m³
Rotary drum capacity2.3m³
Degree of bias16°
Rotational speed10-20r/min
Direction of rotationFeed:clockwise output:counter clockwise
Mixing drum bladeTwo sets of spiral and four sets of auxiliary blades
Slump of concrete70-260mm
Hydraulic Power Transmission System
Pump modelCBGV-4025
Hydraulic motor modelBMSS-250
Reducer ratio01:24
Water Supply
Tank capacity/water supply form540/automatic timing water supply mechanism with automatic timing
The main performance parameters of the chassis and the main performance parameters of the engine
Engine type/displacementCF4B68G-Z-13B2/CF4C100T-Z-13B2
ModelStraight injection type four stroke water cooled supercharged diesel engine
Rated power 78kw/2400 kw/r/min
Max torque 380/1500-1800 N.m/r/min
Max running speed24kw/h
Min steering radius4500mm
Climbing capacity26
Tire16/70-20
Driving way4*4
Weight 5550kg
Maximum load capacity5600kg
Whole machinery weight11150kg
Overall size6350*2510*2850mm(L*W*H)
The wheelbase2300mm
Bucket capacity0.5m³

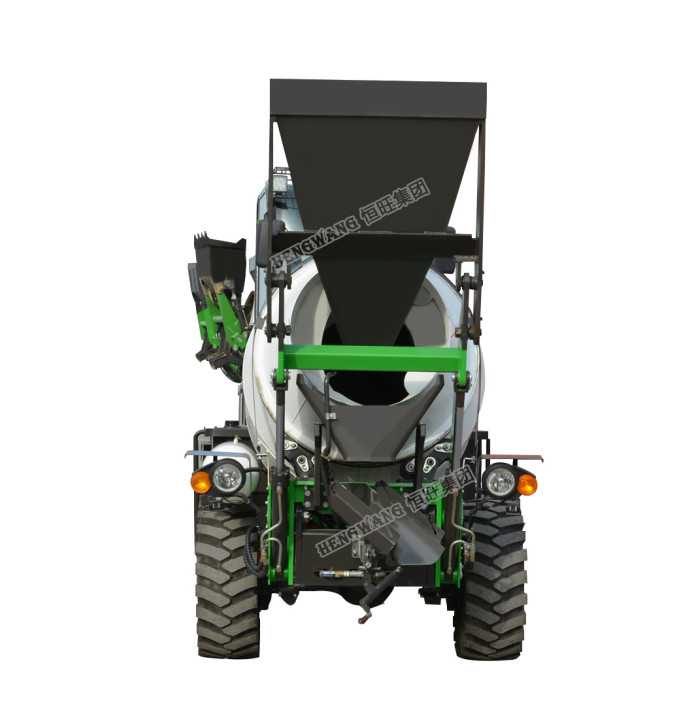

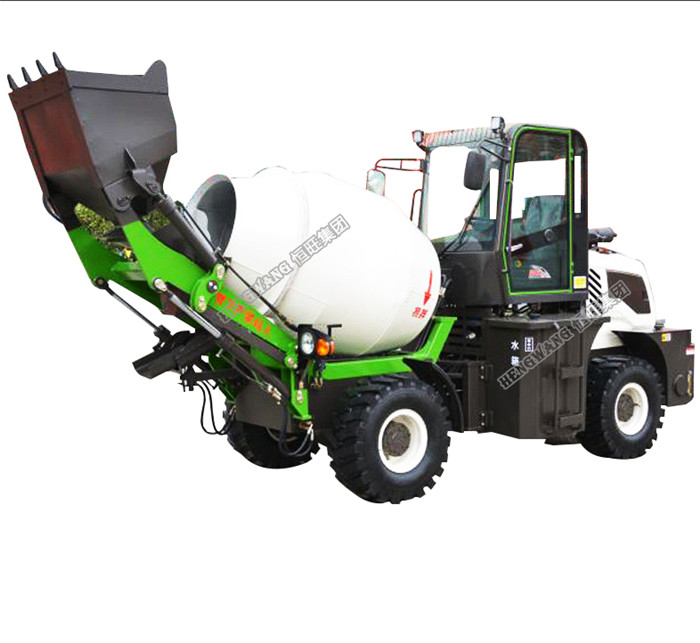

Product Real Photos
