Home > Products > Diesel Tamping /Railway Ballast Tamper/rail tamping machine
Diesel Tamping /Railway Ballast Tamper/rail tamping machine
Click on the image to view the original image
Product： views：34Diesel Tamping /Railway Ballast Tamper/rail tamping machine
Branch： HW
Type： Sleepers
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:37
  Negotiated
Product Details
Overview
Quick Details
Type:
Sleepers
Material:
Steel
Dimensions (L x W x H) (mm):
1480x762x1485mm
Place of Origin:
Shandong, China
Brand Name:
HW
Name:
Rail Tamping Machine
Vibrating Force:
≥22KN
Weight:
25-600kg
rated top lifting:
150-250KN
Inserting Depth:
90-120mm
Supply Ability
Supply Ability:
1000 Set/Sets per Week
Packaging & Delivery
Packaging Details
Wooden box
Port
QIngdao/Shanghai/Ningbo/Dalian/Tianjin
Lead Time:
Quantity(Sets)1 - 1000 >1000
Est. Time(days)7To be negotiated
Product Description

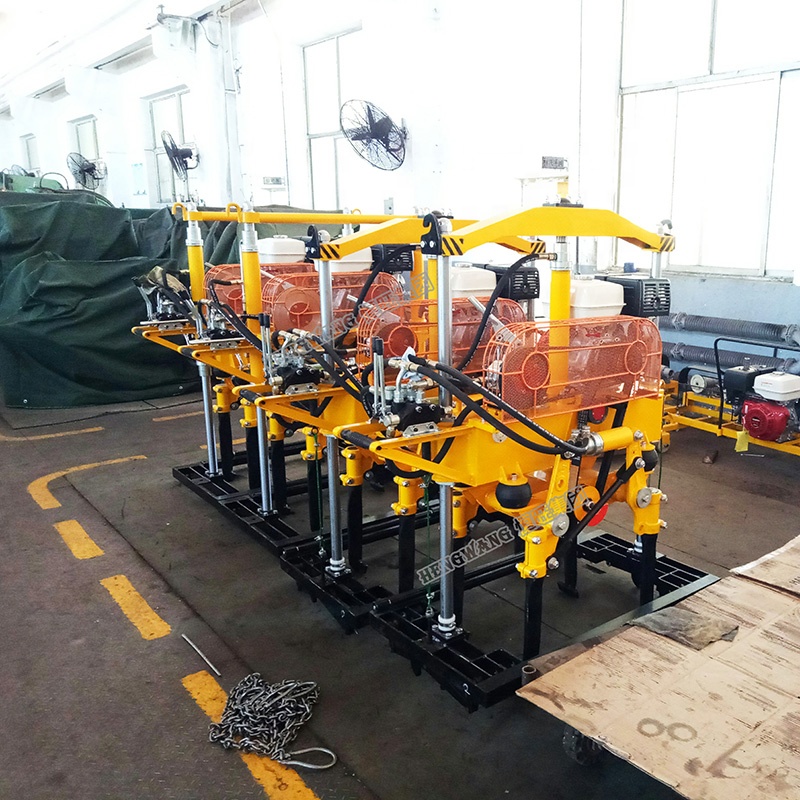

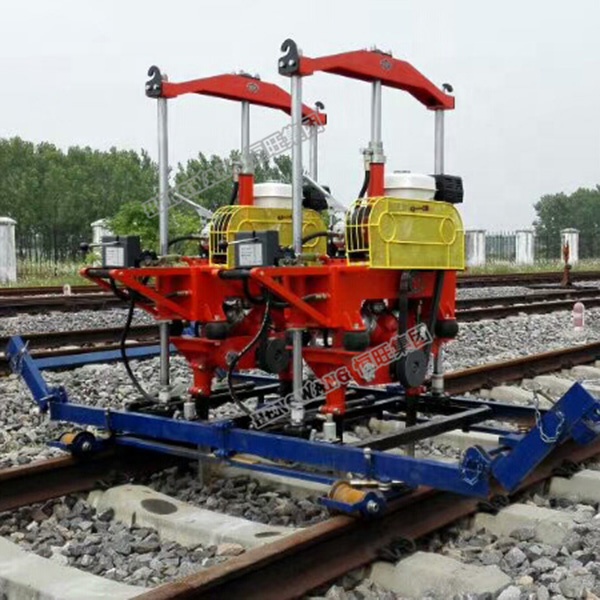

YD-22 Hydraulic Ballast Tamper for Railway Internal Combustion

YD-22 railway Hydraulic Ballast Tamping MachineRail petrol Ballast Tamping Machine For Railway
YD-22 hydraulic ballast tamping machine is a special-purpose machinery used in the maintenance of the railway works. It is mainly used for the ballast tamping of the rail sleeper. It can be used to work in the interval time of the trains and no need for interval close. It has three kinds of engine: gasoline, diesel and motor.Diesel Tamping /Railway Ballast Tamper/rail tamping machine

SPECIFICATIONS FOR HYDRAULIC BALLAST TAMPING MACHINE
Model
YD-22 Hydraulic Ballast Tamping Machine
Hongda GX390 Engine
9.6KW
Hydraulic System Pressure
5Mpa
Vibrating Frequency
67HZ
Vibrating Force
≥22KN
Max.Insert Force
2x7.2 KN
Clamping Force
18.6
Inserting Depth
90-120mm
Efficiency
280-320pcs/(set·hour)
Weight
390KG
Dimension
1480×762×1485mm
