Overview
Quick Details
- Condition:
- New
- Type:
- Rotary Drilling Rig
- Power Type:
- drive by air compressor
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Usage:
- Coal
- Voltage:
- 220V/380V
- Dimension(L*W*H):
- 670*240* 210mm
- Weight:
- 28kg
- Certification:
- ISO
- Warranty:
- 1 Year
- After-sales Service Provided:
- Video technical support, Online support
- name:

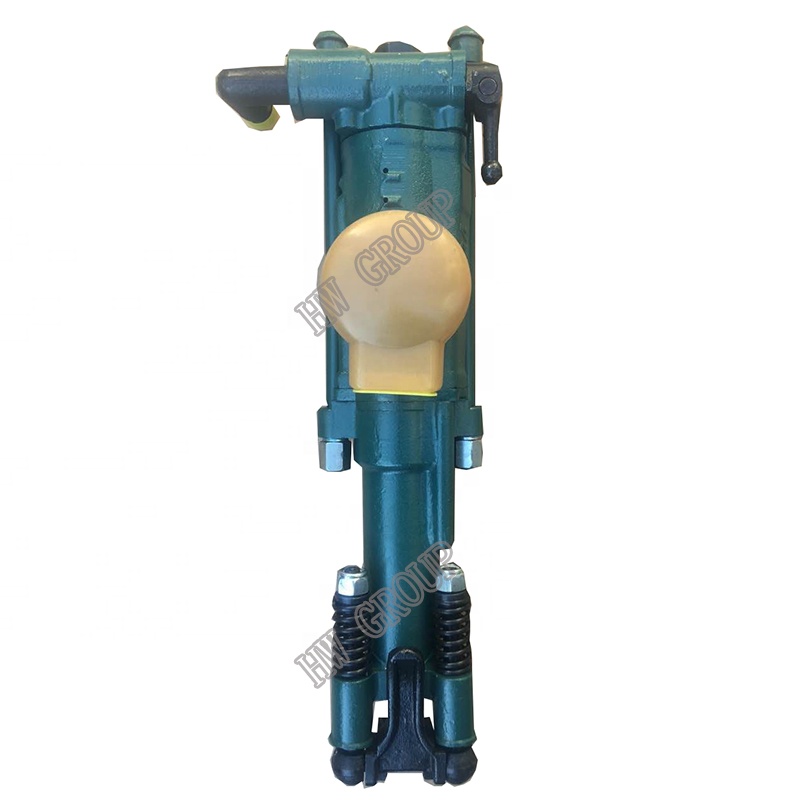

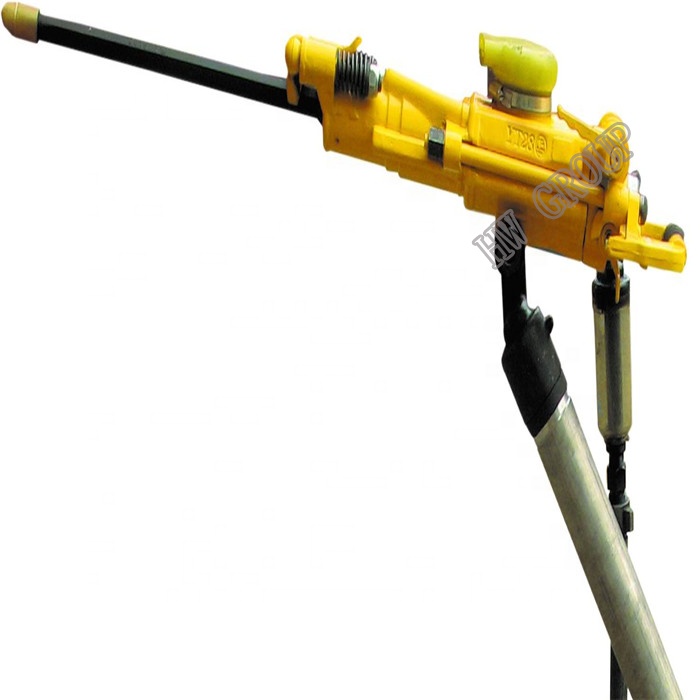

- mini pneumatic mobile quarry rock drill machine
- Application:
- hard rock drill
- Drilling depth::
- 5m
- Air pressure::
- 0.4-0.63Mpa
- Air pipe diameter:
- 25mm
- Bit diameter::
- 34-42mm
- Shank dimension:
- 22*108mm
- Length::
- 661mm
- Cylinder*stroke::
- 80mm*60mm
- Impact energy::
- >=70J
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 67X24X21 cm
- Single gross weight:
- 28.0 kg
- Package Type:

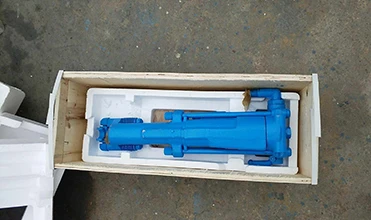

- wooden box for mini pneumatic mobile quarry rock drill machine
- Picture Example:
- Lead Time:
Quantity(Set) 1 - 100 >100 Est. Time(days) 10 To be negotiated
