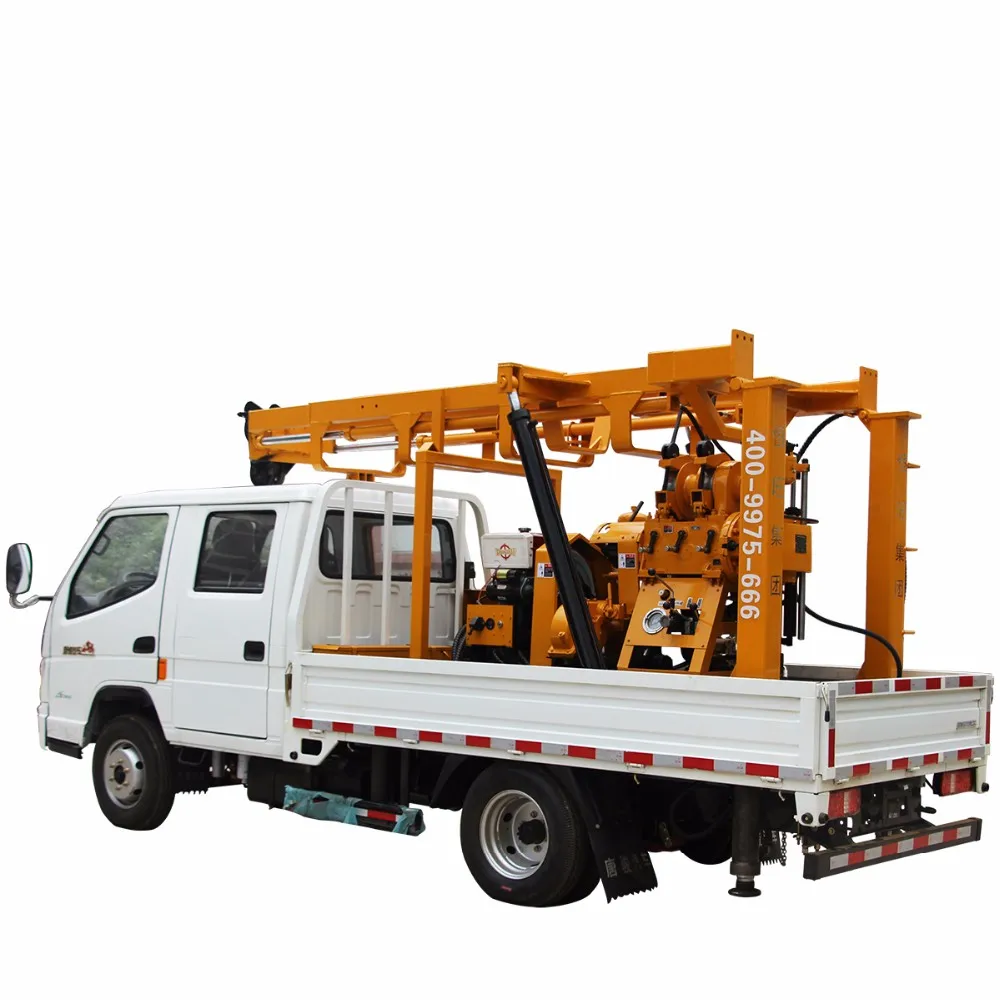

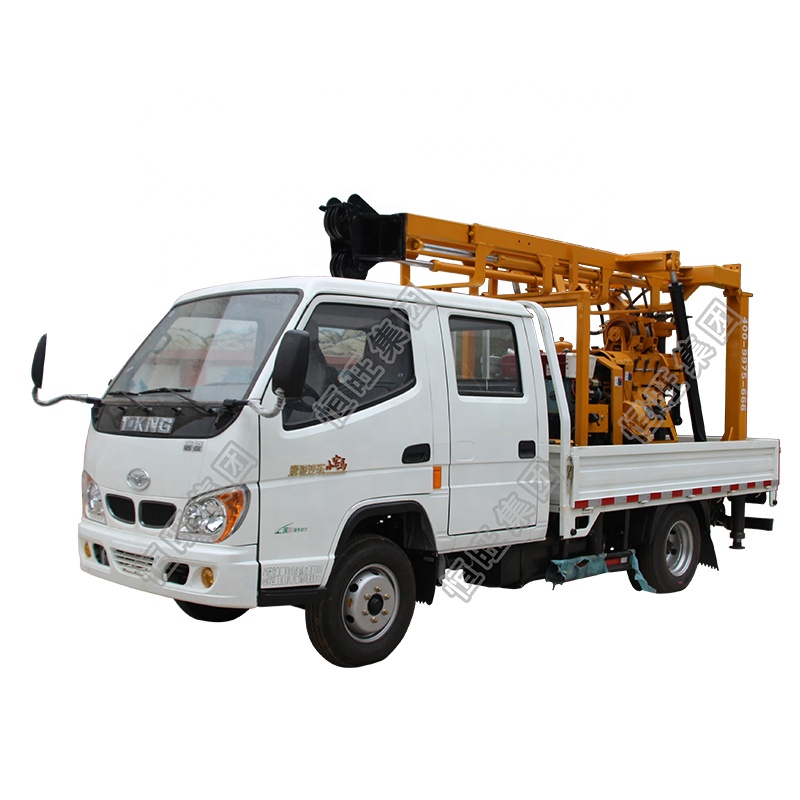

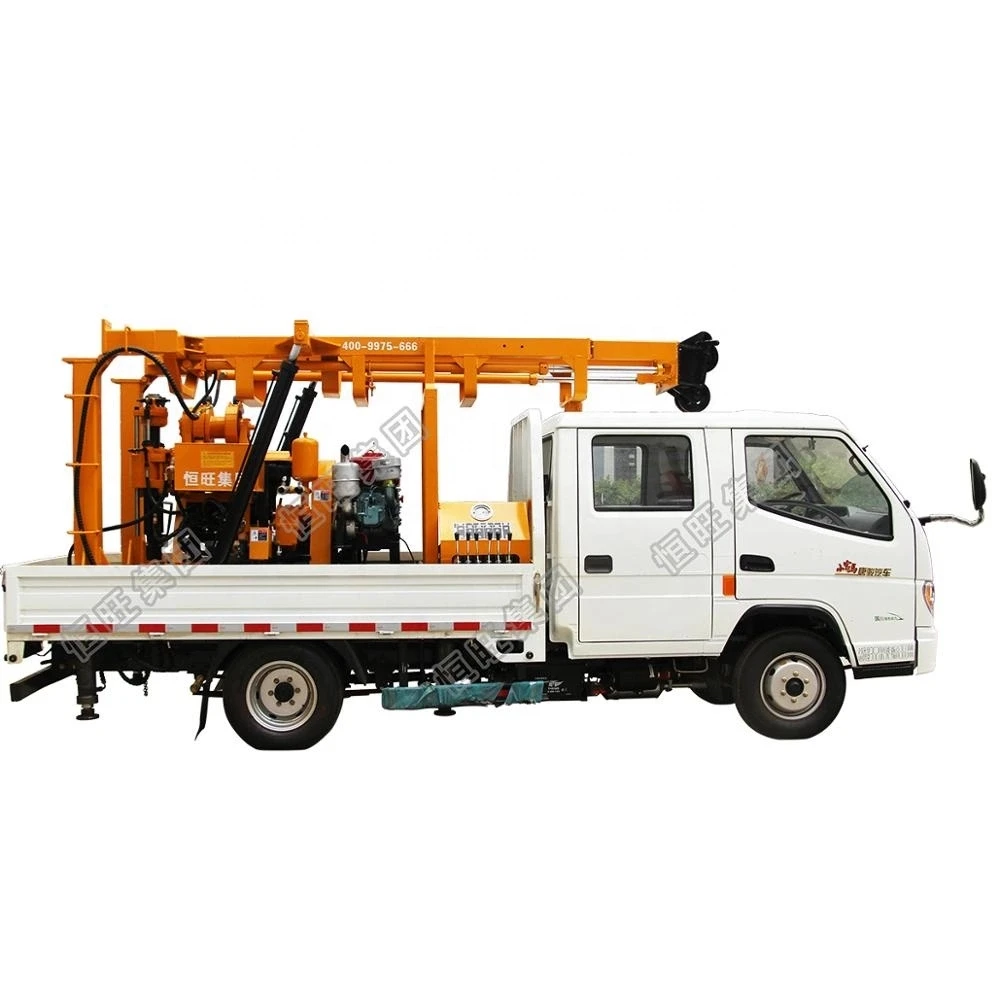

HW-230, XY-3C truck-mounted drilling rig is a kind of truck-mounted drilling rig designed to meet the needs of high-speed, high efficiency and high mobility. The machine is reasonable in structure, simple in operation, convenient in maintenance and convenient in transportation, and no need to lift by crane after it is transported to the site. It is suitable for geological survey exploration, basic exploration of roads and high-rise buildings, and various concrete structure inspection hole, river embankments, subgrade ground temperature central air conditioning.
HW-230C XY-3C Truck-Mounted Hydraulic Drilling Rig | |||
Drilling Depth(m) | HW-230C | XY-3C | |
Drilling Hole Dia. (mm) | 30-230 | 30-600 | |
Drilling Angle(°) | 300-75 | 300-75 | |
Spindle Speed(r/min) | 90-75 | 90-75 | |
Spindle Stroke(mm) | 65-557 | 30-1050 | |
Max. Winch Lift Capacity(Kg) | 450 | 600 | |
Main Winch Steel Wire Capacity(m) | 1600 | 3000 | |
Reel Lifting Speed(m/s) | 35 | 65 | |
Steel Wire Dia. (mm) | 0.12-0.95 | 0.3-1.9 | |
Drilling Tower Height(mm) | 12.5 | 12.5 | |
Weight without Engine(Kg) | 6500 | 6500 | |
Diesel Engine | Model | 970 | 1800 |
Rated Power | ZS11 15 | Yunnei YN27 | |
Mud Pump | 14.7KW/2200rpm | 39KW/2400rpm | |
Vehicle Chassis | Model | BW-160 | BW-250 |
Drive Type | Tangjun Jinlika Double-Column Bar Light Truck | New Sailong Medium Truck | |
Model | 4*2 | 4*2 | |
Diesel Engine | Emission Standard | Quanchai 4B2-95C40 | BF4M2012-16E4 |
Rated Power(kw) | GB3847-2005, GB17691-2005 IV | GB3847-2005, GB17691-2005 IV | |
Our products have won unanimous praise from foreign domestic customers. Welcome to our factory !
1.Attached parts and tools put into standard export box.
2.van type semi trailer will be cleaned and covered with wax before delivery.
3.van type semi trailer will be covered by waterproof cloth at the departure port.
4.Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers" requirements
5.Some small van type semi trailer can be put into container according to its overall dimensions.
Warranty
One year warranty for any truck purchased from us.
Spare Parts
Dedicated to provide our clients with genuine spare parts with the highest quality. We guarante that
your request will be handled quickly and appropriately.
Installation & Maintenance
Provide you with overall installation of complicated industrial vehicle. Make inspection of the whole
truck, operate equipment, and provide testing data reports of installation and operation.
Training
Offer perfect facilities and comfortable environment as well as training services to different users.
Training programs can be conducted in our factory field, or at the clients site.
Technical Advice
Provide detailed and extensive knowledge about your specific truck. With our technical advice, your
truck service life can be significantly prolonged and sustained with high capacity.
What Are Our Advantages ?
Competitive Price--// Quick Response--// Fast Delivery--
Which Payment Terms Can We Accept?
Normally we can work on T/T term or L/C term, sometimes DP term.
Which INCOTERMS 2010 Terms Can We Work?
All INCOTERMS 2010 Terms ,and we mainly work on FOB, CFR, CIF, CIP, DAP.
How Long Will Our Price Be Valid?
Basically, our price remains stable through the year.
What Logistics Ways Can We Work For Shipment?
We can ship construction machinery by various transportation tools:
--- For 90% of our shipment will go by sea.
--- For neighbor countries of China, we ship trucks by road or railway.
--- For light spare parts in urgent demand, we choose International courier service, such as DHL, TNT, UPS.
