Hand Tools For Building Construction Tamping Tamper Rammer Rm80

Click on the image to view the original image

Product：	views：5Hand Tools For Building Construction Tamping Tamper Rammer Rm80
Branch：	HW
Size：	95X50X62 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:53

Product Details

Overview

Quick Details

Warranty:: 1 Year

Power(W):: 5.5HP

Weight:: 80kg

After-sales Service Provided:: Video technical support, Online support

Certification:: ISO

Condition:: New

Place of Origin:: China

Brand Name:: HW

Voltage:: 220V/380V

Dimension(L*W*H):: 1000*530*570mm

tamping frequency:: 300-600/min

jumping height:: 45-70mm

engine type:: Petrol Gasoline

Travel speed:: 0-15m/min

Packing size:: 950*500*620mm

tamping engine:: 80N.m

plate size:: 275*330mm

color:: As your requirment

Impacting force:: 16KN

Packaging & Delivery

Selling Units:: Single item

Single package size:: 95X50X62 cm

Single gross weight:: 82.0 kg

Package Type:: Standard wooden case for hand Tools For Building Construction Honda Tamping Tamper Rammer Rm80

Picture Example:

Lead Time:

Quantity(Set)	1 - 10	>10
Est. Time(days)	15	To be negotiated

Product Description

What can we do for you?

1. We can change the color according to your actual requirements.
2. We can offer different engine brands according to your requirements (Robin / Honda / Loncin / Lifan).

Advantage of Gasoline Soil Tamping Compact Rammer:
Professional production team, production line, experienced technical experts who engaged in this industry for more than 10 years.
1. Robin / Honda / Loncin / Lifan gasoline engine designed for tamping rammer.
2. No need to mix fuel and oil, easy starting, low-noise operation, low maintenance and reduced fuel consumption comparing to 4-stroke engine.
3. Vibration damping block, spring and other key parts quality meets the standard requirements, anti fatigue, anti-aging performance is better than similar domestic products.
4. Heavy shock mount system to reduce hand-arm vibration and improve comfort.
5. Rammer shoe made of steel plate with wooden insert offers economical usage.
6. Special protective frame for engine, prevents any possible damage on tough job site.
7. Additional built-in air filtration.

Application of Gasoline Soil Tamping Compact Rammer
1. Compaction of this series is suitable for sand, gravel, gravel, asphalt concrete, lean concrete and clay,
2. Tamping compact rammer is widely used in road construction, bridge foundation, housing construction, dam reservoir, the construction of farmland reservoir.
3. Tamping compact rammer especially suitable for indoor ground, yard and trench and other narrow ground construction.
4. Tamping compact rammer can be competent for large and medium compaction machinery can not complete the construction tasks.

Specification for gasoline Soil Tamping Compact Rammer
Name	Tamping Rammer
Model	HWCH-80
Jumping height	45-70mm
Tamping frequency	300-600r/min
Plate size	275x330mm
Power	5.5HP
Tamping power	80N.m
Operate weight	82kg
Package size	950x500x620mm

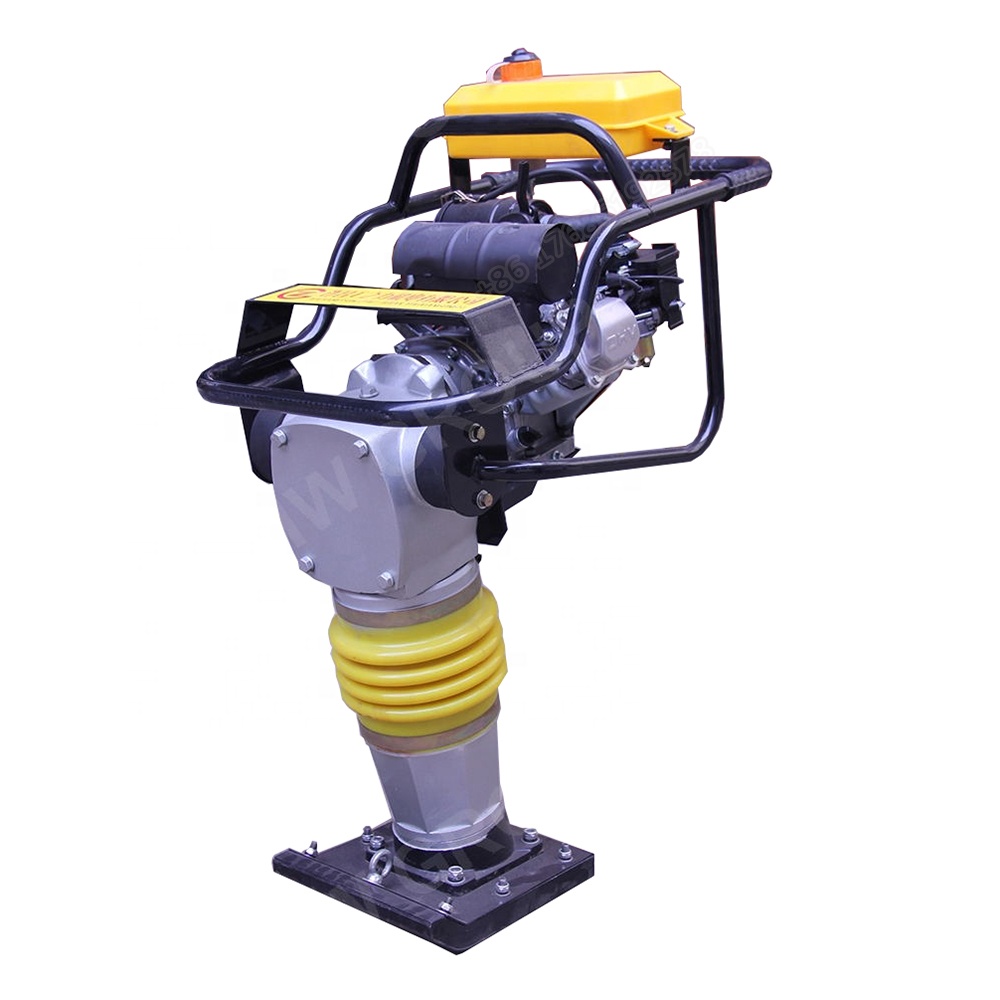

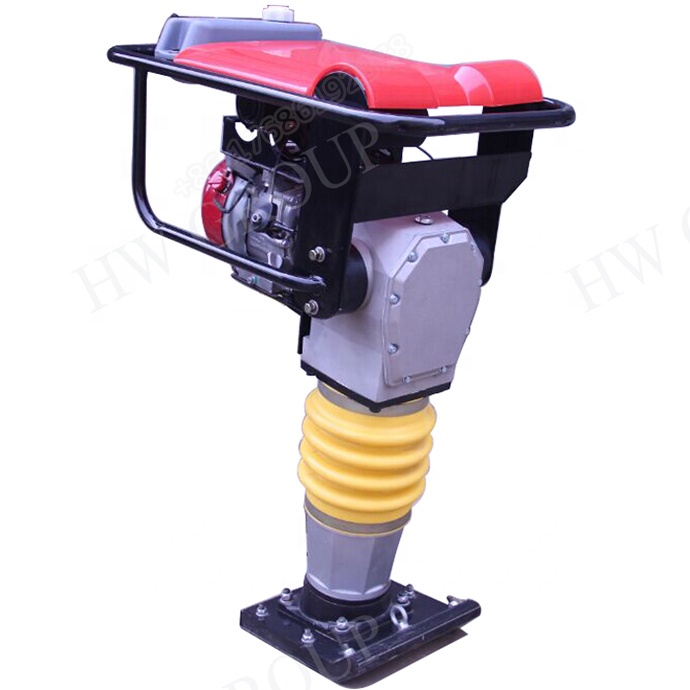

Detailed Images
