400W*4 Metal halide lamp lights industrial portable lighting tower
Product instruction
Construction lighting vehicles used for ordinary roads, highways, mines, etc. for the brightness, long-distance night operations and other work sites to provide mobile lighting. The metal halide lamp is used as the light source of the lighting vehicle, and the metal halide lamp emits light through the internal air discharge of the luminous tube, so there is no broken wire and the service life is long. The same power metal halide lamp compared with the iodine tungsten lamp, the brightness is 6 times that of the iodine tungsten lamp, the service life is 5 times that of the iodine tungsten lamp, and the power consumption is only 1/5 of the iodine tungsten lamp.3M Manual High Mast Mobile Light Tower price
Emergency light tower is used in large public places such as stadiums, airports, docks, emergency rescue sites such as roads, railways, and electric power, open-pit mining sites, and other places where emergency backup light sources and power supplies are required, such as flood control and flood prevention and disaster relief sites.400W*4 Metal halide lamp lights industrial portable lighting tower
Technology Parameter
| Model | HW-400A | HW-400B | HW-1000A | HW-1000B | |
| Generator | EG4000CX | EG4000CX | EG6500CX | ||
| Type | Air cooled, 4stroke, OHV gasoline engine | Air cooled, 4stroke, single cylinder direct injection type diesel engine | |||
| Generator Types | Single-phase alternator | ||||
| Rated Power | 2.0kw | 3.0kw | 3.0kw | 5.0kw | |
| Rated Voltage | 220V | 220V | 220V | 220V | |
| Continuous working time (hour) | 13hr | 12hr | 12hr | 9hr | |
| Oil Tank | 15L | 24L | 24L | 24L | |
| Power*lamp | 400W*2 | 400W*4 | 1000W*2 | 1000W*4 | |
| Stanchion Lamp frame | 4 sections | 4 sections | 4 sections | 4 sections | |
| Elevating height | 1800-4600mm | 1800-4600mm | 1800-4800mm | 1800-4800mm | |
| Anti-slope | <10° | ||||
| Anti-wind | <6 | ||||
| Walk type | Hand push type | ||||
| Lamp | Metal halide lamp | ||||
| Elevating mode | By hand-operated | ||||
| Package size | Main machine | 1100*900*1900mm | |||
| Stanchion | 1750*500*500mm | ||||
| Lamp | 440*440*480mm*2 | 440*440*480mm*4 | 600*600*600mm*2 | 600*600*600mm*2 | |
| Net weight(kg) | 105kg | 130kg | 130kg | 150kg | |

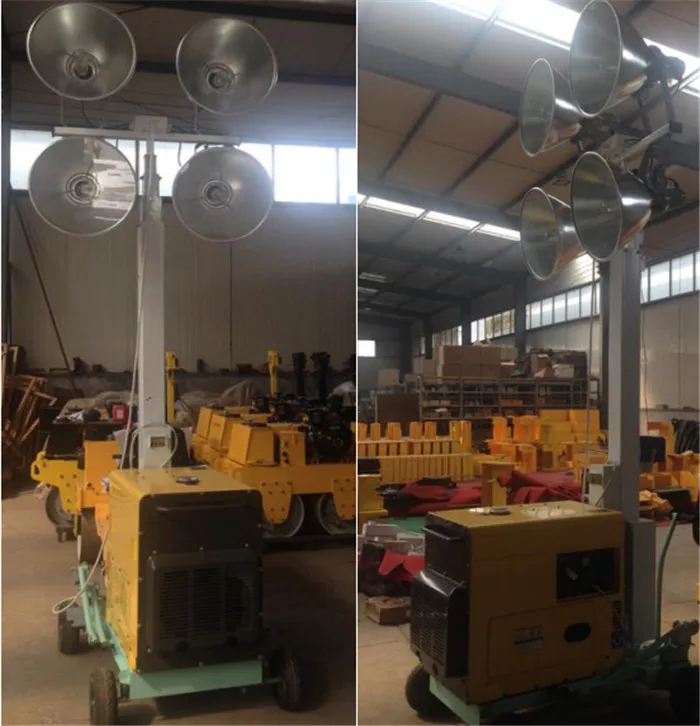

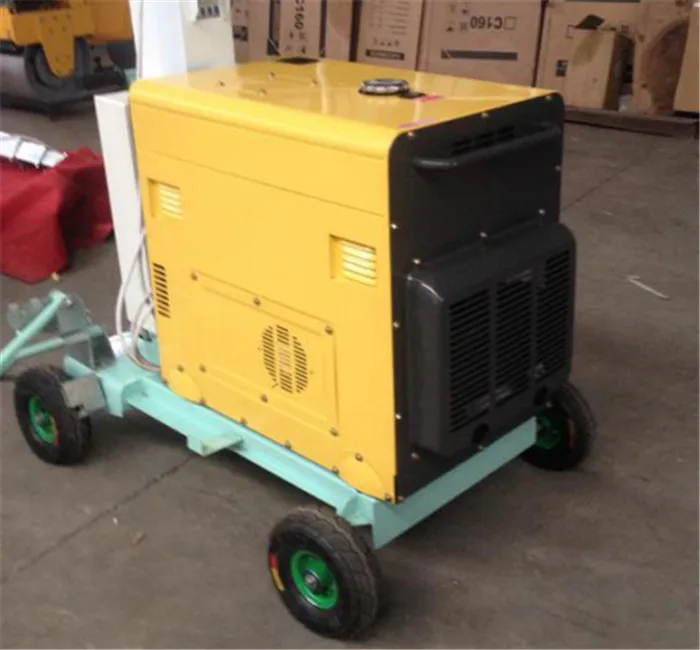

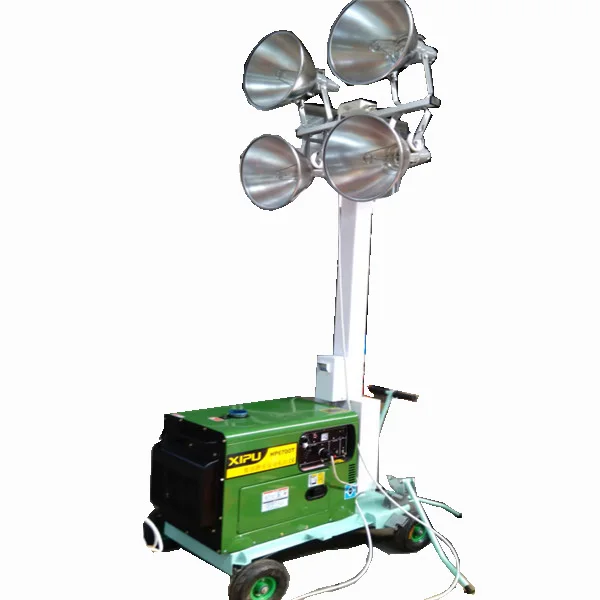

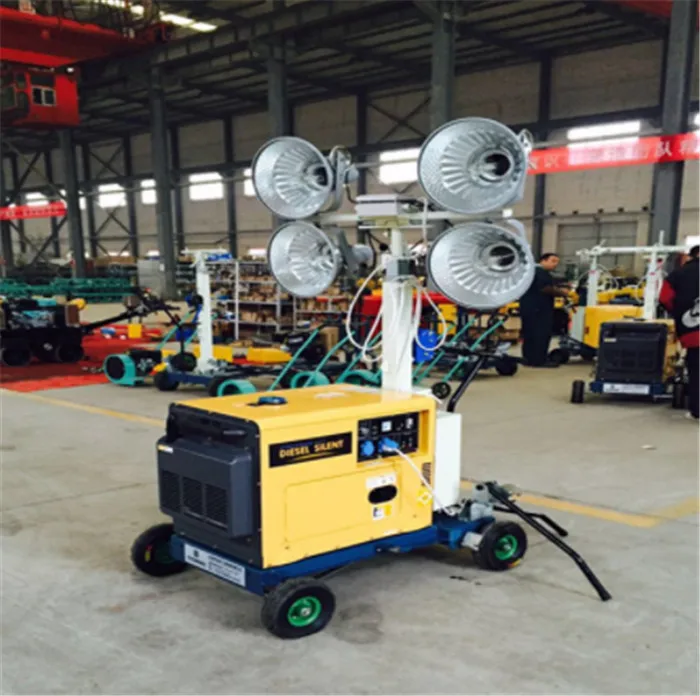

Product Real Photos

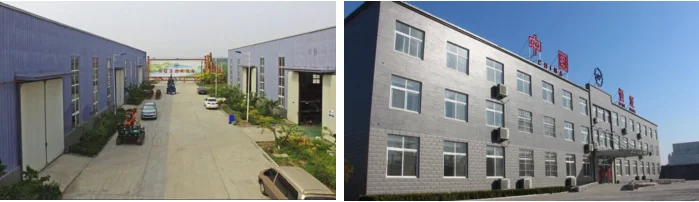

Our company
