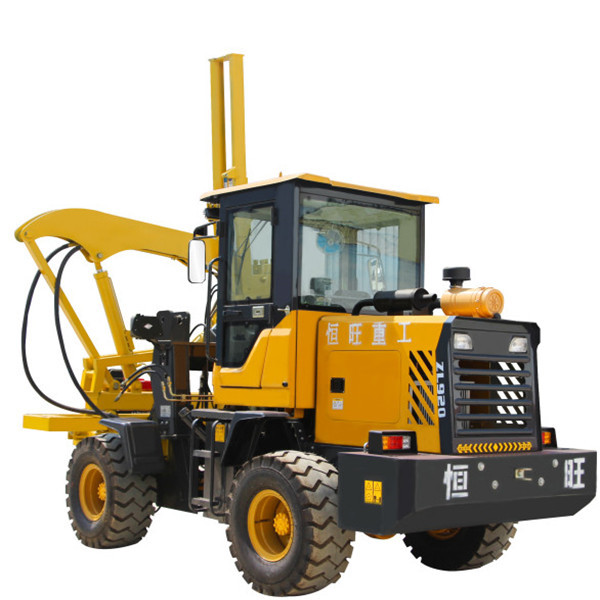

Guardrail Hydraulic Pile Driver for Highway Installation barrier guardrail pile driver
Product instruction
Load-type guardrail drilling rig is a piling drilling machine widely used in highway, railway, construction, hydropower, port and other construction projects. In recent years, Hengwang has been repairing both inside and outside the production of pile driver, and has obtained structural parts and shifting. A major breakthrough in the quality of the optional parts of the box, the sales of the products continue to rise, and the product technology and product services have moved to the forefront of the industry.
The load-bearing guardrail drilling rig has a good overall layout, compact structure, reasonable center of gravity layout and good stability. The body and the walking system have a good cushioning effect, with advanced product performance, high work efficiency, comfortable operation, and standardized components for key components, which can adapt to various harsh working environments and are ideal equipment for construction.Guardrail Hydraulic Pile Driver for Highway Installation barrier guardrail pile driver
In addition, the high-power engine and the enclosed rear bin extend the service life of the engine, and the construction time is greatly lengthened, the power is large, and the working ability is strong. The key components such as the engine, the box, the bridge and the hydraulic system are all made of reliable components, which improves the reliability of the whole machine.
Technology Parameter
| Model | HWZ-37 | |
| Drilling data | Drilling diameter (mm) | 80-200 |
| Drilling depth (mm) | 0-2100 | |
| Drilling speed (mm/min) | 0-1200 | |
| Host | Engine | Weichai490 |
| Machine quality (kg) | 4500 | |
| Power (kw) | 37 | |
| Walking mode | Four-wheel drive | |
| Hammerhead | Standard 260 hammer | |
| Impact frequency (HZ) | 500-900 | |
| System flow (L/min) | 60-100 | |
| Hydraulic hammer | Working pressure (Mpa) | 14-18 |
| System flow (ML/R) | 55-70 | |
| Lifting pile lifting strength (T) | 1.5-2 | |
| Size(L*W*H)(mm) | 4500*2100*3000 | |
| Gradeability(°) | 30 | |
| Track (mm) | 2070(M) | |
| Wheelbase (mm) | 15(M) | |

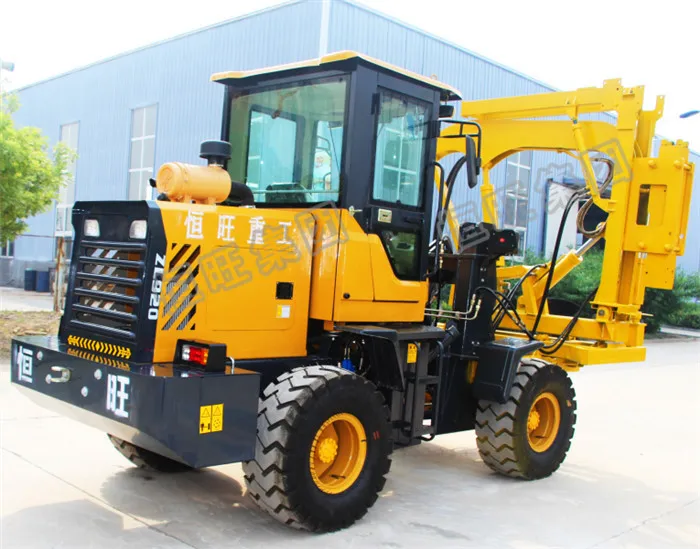

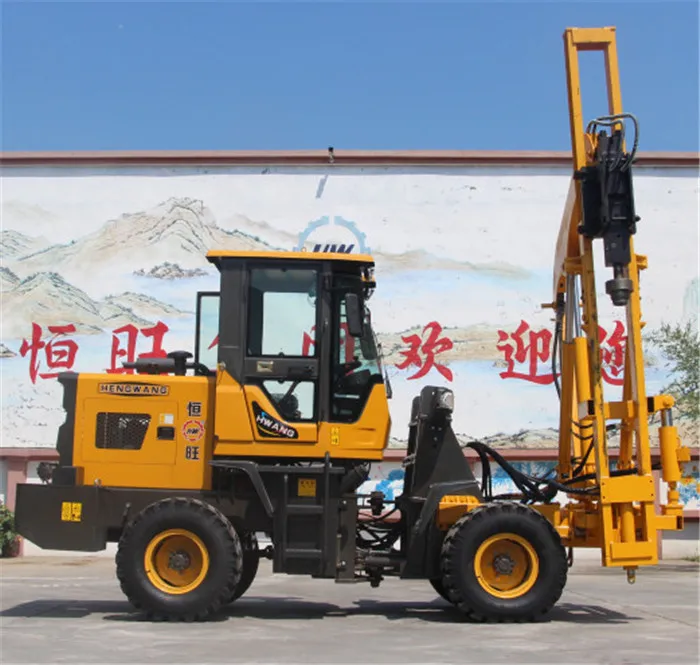

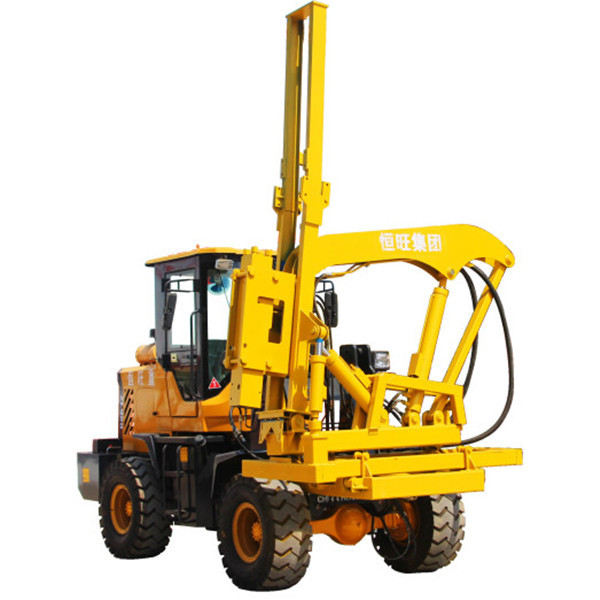

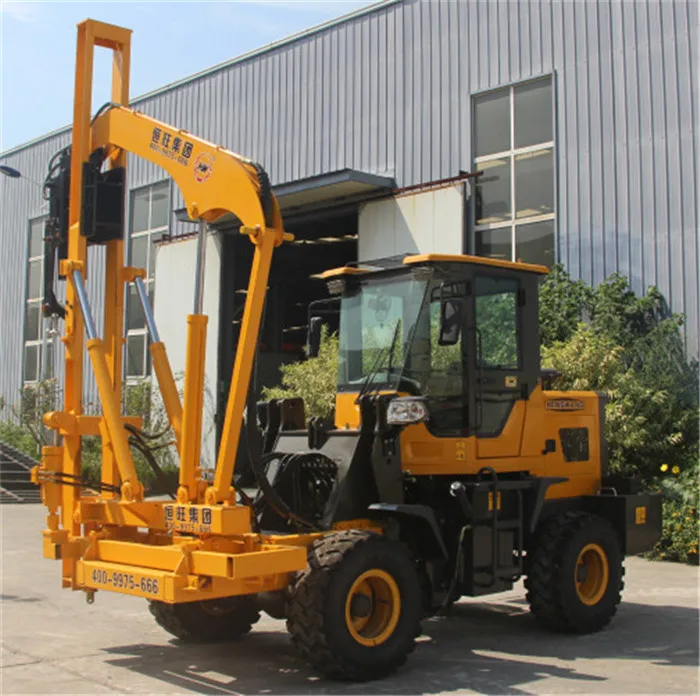

Product Real Photos
