Electric Hammer Drill in Power Tools
1. Comfortable feel the side handle
2. Quick pick chuck holding system
3. High rigid aluminium fuselage, and internal resin shell , composition
4. High durability , high strength double insulation of motor structure
5.High chushing damage performance and low vibration amd low noise
6.the side handle can be rotated 360°around the tool, to make more convenient performance.
7.with adjustable guide ruler, to guarantee the precision of drilling depth.
8.fitting human engineering design of the soft griping handle, to approve more amenity.
9.with impactive button on the side of the tool, to distinguish impact, hammer and drill junction.
Operations:
1. After placing the tip of the tool in the base hole, swith ON. In some cases, it is necessary to punch the up of the bit against the crushing position forcibly in order to begin the strinking stroke. This is not due to malfunction of the tool. It means that the safe guard mechanism against no-load striking it working.
2. By utilizing the weight of the machine and by holding the hammer with both hands, one can effectively control the subsequent recoil month motion. Preceed at a moderate work-rate, the use of too much force will impair efficiency.
Caution: Sometimes the tool does not begin the striking stroke even when the motor rotates because the oil has become thick. If the tool is used at low temperatures or if it is used after a long time idle, the tool should be used running in for 5 mins in order to warm it up.
Maintenance:
1. Insepecting the tool
Since use of a dull tool will cause motor malfunctioning and degraded effeciently, when it replace with a new or without delay when abrasion is noted.
2. Inspecting the mounting screws
Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazzard.
3. Maintenance of the motor
The motor unit winding is the very heart of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.
4. Inspecting the carbon brushes
The motor employs carbon brushes which are consumable parts. When they become worn to or near wear limit, it could result in motor trouble. When an auto-stop carton brush is equipped, the motor will stop automatically. At that time, replace both carbon brushes with new ones which have the same carbon brush Nos, shown in the figgure.
In addtion, always keep carbon brushes clean and ensure that they slide freely within the brush holders.
Replacement steps: The carbon brush can be removed by removing the cap cover, cap rubber and brush cap in that order at the interior.
Note:
Due to hammers"s continuing program of research and development, the specifications herein are subjest at change without prior notice.
Features
Brand new and high quality
Heavy duty, durable construction
360°swivel foregrip handle
Suitable for home and business
Easy to operate
Perfect for demolition, trenching, chipping, breaking holes in concrete, block, brick, tile stucco, removing a foundation, concrete slab, oil chimney, etc.
Technical

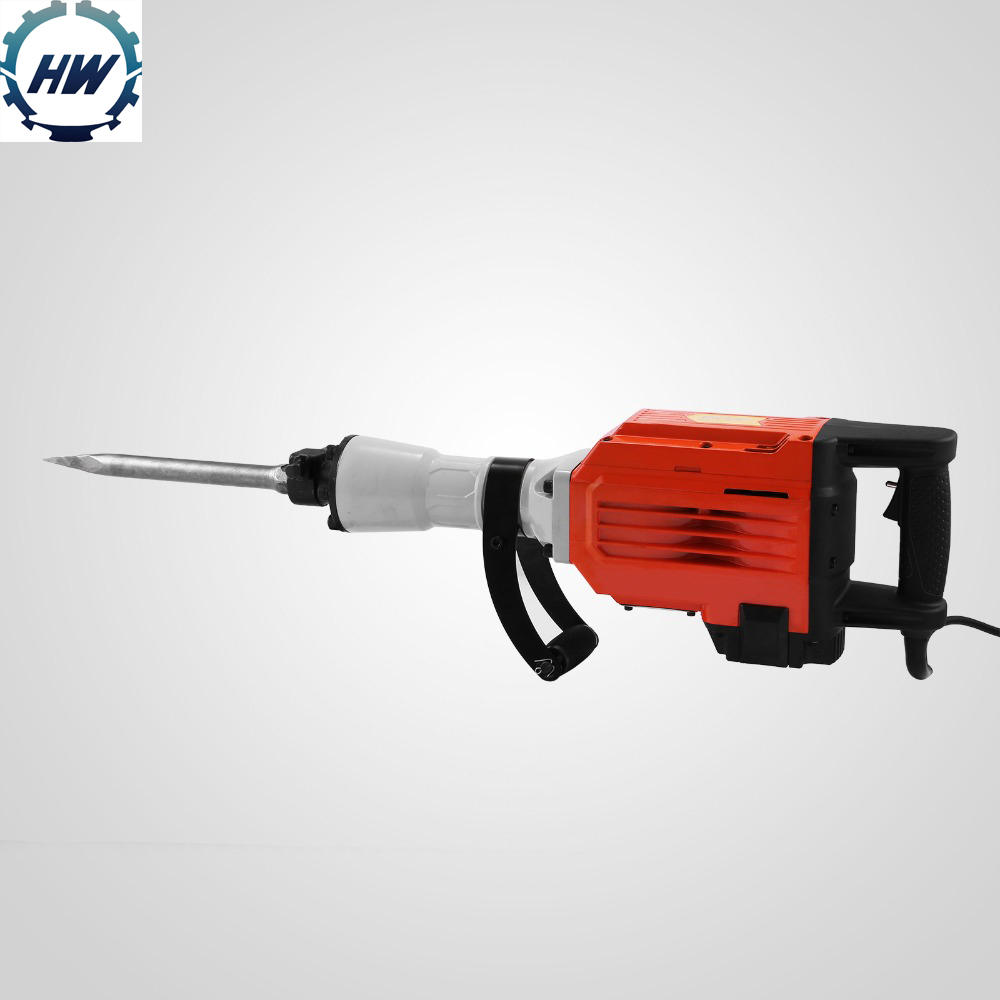

Type: Electric Jack Hammer
Product Color:Blue and Orange
Voltage: 110V/220V
Motor power: 3600W
No Load Speed: 1400 R/Min
Drilling diameter: 95mm / 3.74""
Size: 710 x 170 x 310mm / 28 x 6.7 x 12.2 inch
Weight: 22 kg / 48.5 lbs
Compressor Required: No
Swivel Fore-grip Handle:360°
Including
1 X 3600 Watt Electric Demolition Jack Hammer
1 X 16" Bull Point Chisel
1 X 16" Flat Chisel
1 Pair Of Protective Gloves
1 X Protective Goggles
1 X Protective Mask
2 X Carbon Brushes
2 X Hex Wrenches
1 X User"s Manual
