Home > Products > YT24 air rock drill hammer hand held portable pneumatic rock drill jack hammer Free ship to India
YT24 air rock drill hammer hand held portable pneumatic rock drill jack hammer Free ship to India
Click on the image to view the original image
Product： views：11YT24 air rock drill hammer hand held portable pneumatic rock drill jack hammer Free ship to India
Branch： HengWang
Type： Core Drilling Rig
Size： 70X25X23 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:54
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
Construction works
Condition:
New
Type:
Core Drilling Rig
Power Type:
Gasoline
Place of Origin:
Shandong, China
Brand Name:
HengWang
Usage:
Coal
Voltage:
220V 380V or customize
Dimension(L*W*H):
659x248x205mm
Weight:
28kg
Certification:
ISO
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
Cylinder Diameter:
82mm
Piston Structure Stroke:
60mm
Working Pressure:
0.63MPA
Impact Energy:
78J
Rock drill depth:
5m
Shank size:
H22*108±1mm
Air pipe inner dia:
25mm
Water pipe inner dia:
13mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
70X25X23 cm
Single gross weight:
48.0 kg
Package Type:
wooden boxes
Lead Time:
Quantity(Set)1 - 1>1
Est. Time(days)5To be negotiated
Discount
Product Description

YT28 Rock Drill Machine Application

1.The rock drill is a kind of high efficiency air leg rock drill machinery.
2.It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility.
3.It is suitable for drilling and blasting under various of rocks and any direction angles.
4.Blast hole dia is 34-42mm, drill hole depth is 5m.

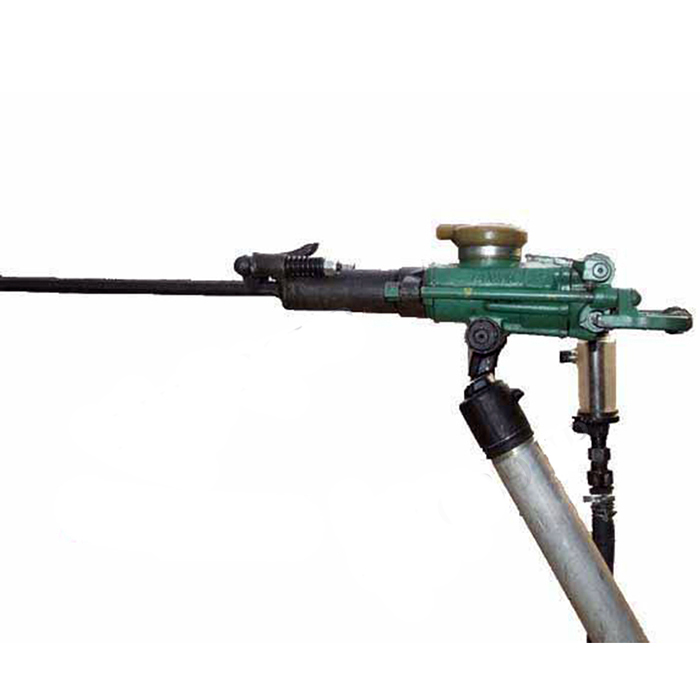

5.This machine may match with FT160BD short air leg of FT160BC long air leg.

Safety

a. Ensure that technical safe practices are employed.
b. Pay attention to the position of steel wire ring clamp, if found it fray,change it.
c. Check steel wire ring clamp whether or not abrase, if so, change another at once.
d. Do not allow use low burning point and easy explosion lubricating oil.

SPECIFICATIONS FOR YT Series Pneumatic Rock Drilling Machine with Air Leg
Model
YT24
YT27
YT28
Weight
24kgs
27kgs
26kgs
Length
678mm
668mm
661mm
Air pressure
0.4-0.63Mpa
0.4-0.63Mpa
0.4-0.63Mpa
Impact frequency
≧31HZ
≧39HZ
≧37HZ
Air consumption
≦67L/s
≦86L/s
≦81L/s
Impact energy
≧65J
≧75
≧70
Cylinder*stroke
70mm*70mm
80mm*60mm
80mm*60mm
Air pipe diameter
19mm
19mm
25mm
Shank dimension
22*108mm
22*108mm
22*108mm
Drilling depth
5m
5m
5m
Bit diameter
34-42mm
34-45mm
34-42mm
Detailed Images

Machine Parts

Name: YT types

Brand: HW

Original: Made in China


If you need YT spare parts ,please let me know so that give you details parts price for your reference.

Main Features

Name: YT types
Brand: HW
Original: Made in China


If you need YT spare parts ,please let me know so that give you details parts price for your reference.

Machine Parts

Name: YT types
Brand: HW
Original: Made in China


If you need YT spare parts ,please let me know so that give you details parts price for your reference.

Main Features

Name: YT types
Brand: HW
Original: Made in China


If you need YT spare parts ,please let me know so that give you details parts price for your reference.
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Our Company

Welcome to visit our factory! For evey visitor we will offer :

- Airport pickup.
- Product visit and operation instruction
- Production line visit
Connect with global customers with professional and high quality !

Action now !!!

- To send an inquiry or message to us online.
- To get one set powerful machhine in so many kinds of product.
- To get more details.
- To know our more warranty, guarantee and responsibility.
- To know every kinds of our products.
- We will provide best service and timely response for your any questions.
