Pneumatic rock hand drill machine jack hammer yt28

Click on the image to view the original image

Product：	views：4Pneumatic rock hand drill machine jack hammer yt28
Branch：	HW
Type：	Core Drilling Rig
Size：	77X30X30 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:54

Product Details

Overview

Quick Details

Applicable Industries:: Home Use, Construction works , Energy & Mining

Condition:: New

Type:: Core Drilling Rig

Power Type:: Electric

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: Rock drill

Voltage:: 220V/380V

Dimension(L*W*H):: 76*32*26cm

Weight:: 28kg

Certification:: ISO9001

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, No after-sales service

Name::: Pneumatic rock drill machine

Drilling Depth::: 5m

Drilling Hole Dia::: 34-42MM

Water pipe inner Dia::: 13MM

Air pipe inner Dia::: 25MM

Drilling Frequency::: ≥40HZ

Air consumption::: ≤82L/S

Air pressure::: 0.63Mpa

Cylinder Dia::: 80mm

Packaging & Delivery

Selling Units:: Single item

Single package size:: 77X30X30 cm

Single gross weight:: 32.0 kg

Package Type:: Standard exported wooden case

Lead Time:

Quantity(Unit)	1 - 1000	>1000
Est. Time(days)	7	To be negotiated

Promotion

Product Description

Rock Drill Feathures:Pneumatic rock hand drill machine jack hammer yt28

1.The rock drill isa kind of high efficiency air leg rock drill machinery.
2.It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility.
3.It is suitable for drilling and blasting under various of rocks and any direction angles.
4.Blast hole dia is 34-42mm, drill hole depth is 5m.
5.This machine may match with FT160BD short air leg of FT160BC long air leg.

SPECIFICATIONS FOR YT28 ROCK DRILL
Type		YT28
Weight		26 (Kg)
Length		661(mm)
Cylinder dia		φ80 (mm)
Piston stroke		60 (mm)
Working pressure		0.4~0.5 (Mpa)
Impact energy		≥60.2 (J)
Impact frequency		≥37 (Hz)
Air consumption		≤81 (L/s)
Working water pressure		0.2~0.3 (Mpa)
Air pipe inner dia		φ25 (mm)
Water pipe inner dia		φ13 (mm)
Rock drill hole dia		φ34~φ42 (mm)
Rock drill hole depth		5 (m)
Shank size		22×108 (mm)

YT28 Rock Drill Application:

It is mainly used for diging into mine laneway and blasting holes in all drilling works. It is indispensably importance machine tool in metallurgy, coal, railway, traffic, water conservancy construction and national defence stone project.Blast hole dia is 34-42mm,drill hole depth is 5m. This machine may match with Model FT160 air leg.

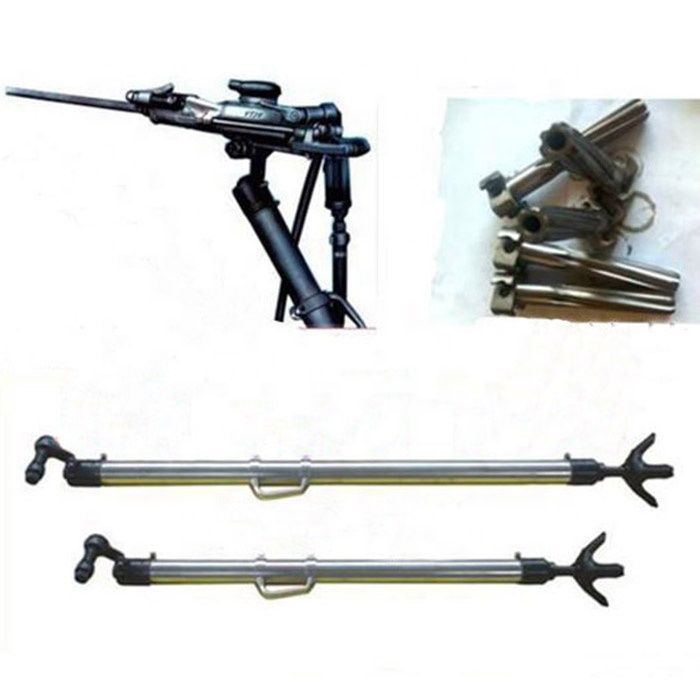

Detailed pic
