Product Description

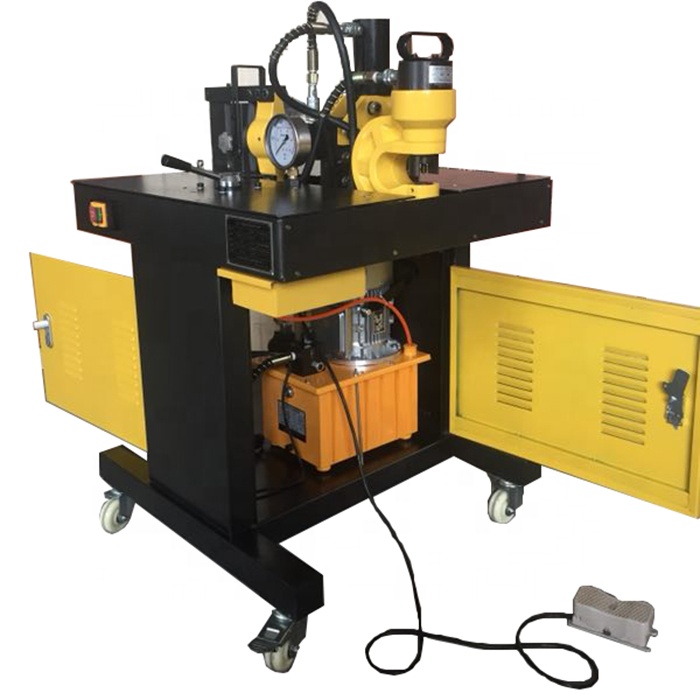

Busbar Processing machinePortable manual busbar bending punching machine
This machine is the light of foreign advanced prodcts,combined with the actual situation in China,in order to improve work efficiency,to save hours of eork,while the design and manufacture.
Suitable for transmission and distribution in a large workshop and site work construction,and power distribution cabinets and switch cabinets,ect.
The use of electrical appliances factory.
The machine is equipped with:bending,cutting,punching functionality.
Optional foot switch or wire switch,easy to operate.
SPECIFICATIONS FOR BUSBAR PROCESSING MACHINE | ||||||
Model | HB-150 | |||||
Functions | With three functions,cutting,punching and bending | |||||
Input voltage/control voltage | 700kgf/cm2(Over pressure safety valve setting value) | |||||
Outlet force of bus bar cutter | 25ton | |||||
Bus bar cutting capablility | (Copper bus bar/Aluminum bus bar)150x12mm | |||||
Outlet force of puncher | 31 ton | |||||
The distance between hole center and bus bar edge | 95mm | |||||
Punching capablity-coper bus bar/aluminum bus bar | φ6-φ20.5 Max thickness:10mm | |||||
Standard assembled punching dies | φ10.5mm,φ13.8mm,φ17.5mm,φ20.5mm | |||||
Outlet force of bender | 20 ton | |||||
Horizontal bending capability | 150x12mm | |||||
Weight | 190kg | |||||
Dimension of moveable workbench | 70cm(L)X70cm(W)X80cm(H) | |||||
Machine dimension | 760mm(L)X760mm(W)X1000mm(H) | |||||

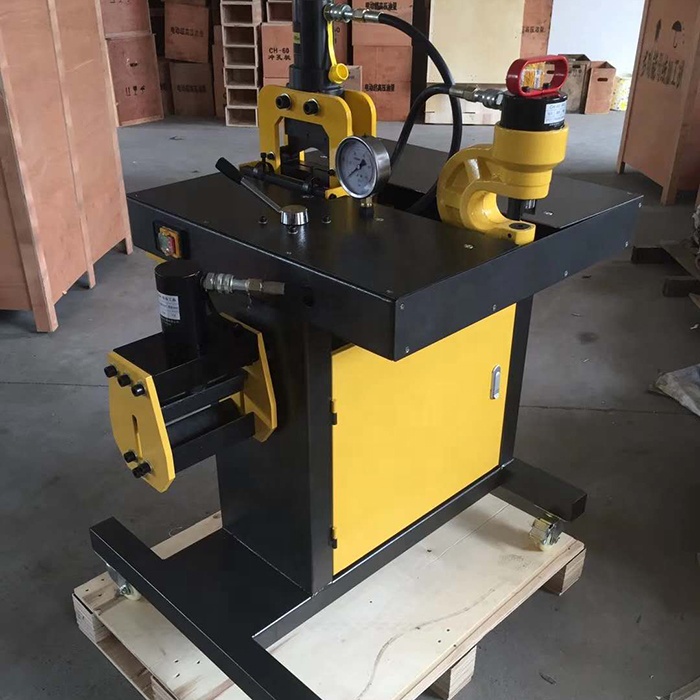

Detailed Images
