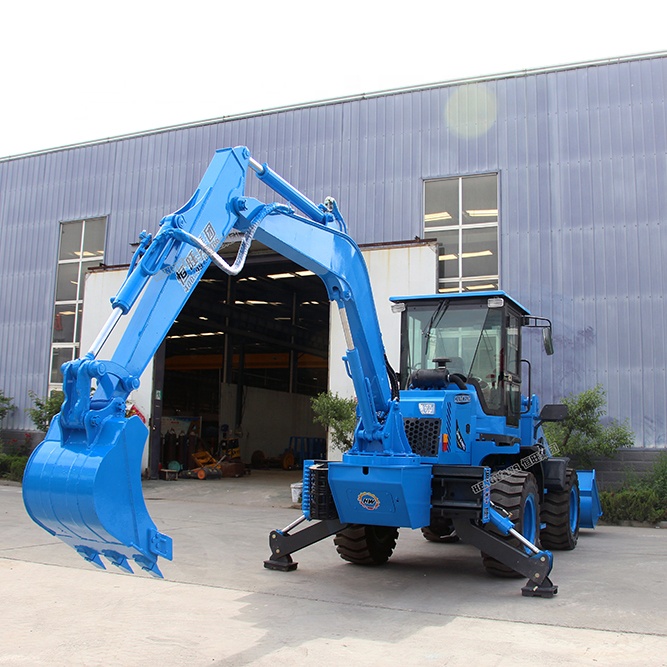

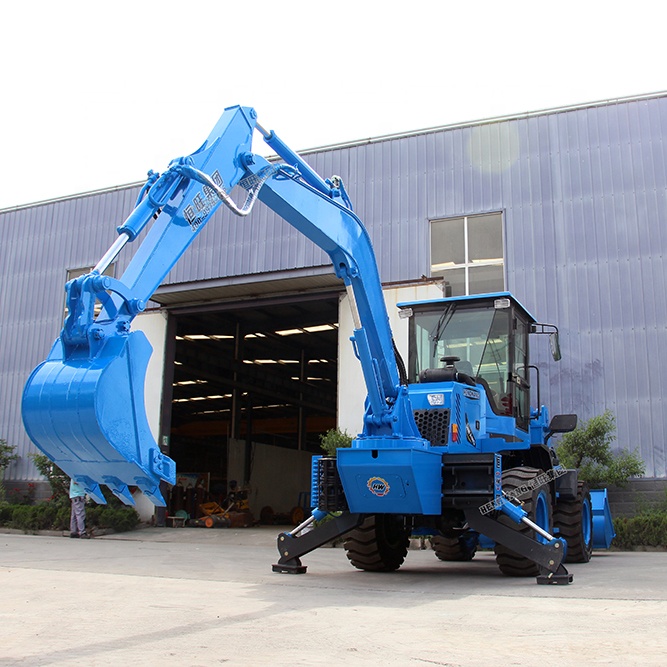

Backhoe LoaderHydraulic mini backhoe loader with bucket wheel loader
Backhoe loader, also known as a loader backhoe, is an engineering vehicle belong to construction machinery/construction equipment. The backhoe loader commonly composes a tractor, fitted with a shovel/bucket on the front and a small backhoe on the back.
Match with high quality engine, low, low blow off of noise, driving force forceful, twist from when reserve is big. The driving force excavating loader special use fixing an axis changes the gear speed change box, structure is compact, drive is efficient, structure stiffness is big, life-span is long.
The dyadic center equidistance hinge joint fleet of carriage, makes turn the radius is small, the expedient function is good. ·Excavating a part is that dyadic structure of box, load support capability are strong, the intensity is tall, the stability is good. ·The drive's cab, wide vision, air-conditioning, operation environment sealing off subtraction vibrating, allocating are comfortable, safe. ·Various machines and tools such as may select and use for –in-one bucket, breaking a hammer to pieces, the function are especially all in readiness.
SPECIFICATIONS FOR BACKHOE LOADER | ||||||
Items | HW15-26 | Digging up capacity | 25KN | |||
Transporation dimension | 5500*1720*2650mm | Maximum discharge height | 2800mm | |||
Total operating weight | 3300kg | Backhone bucket height | 1800mm | |||
Min Ground Clearance | 230mm | Max.Digging depth | 1800mm | |||
Bucket capacity | 0.5m3 | Bucket slewing(swing) angle | 180o Boom | |||
Backhoe bucket capacity | 0.1m3 | Engine | choosable | |||
Max.travel speed | 25km/h | Power and speed | 37kw 2400r/m | |||
1.Loading container suitation:
one suit put in a 40HQ container.
2.Delivery:
Due to the the machine is too high, we will unistall the tires and change the small iron wheel. You can see from the above pic. When the machine arrive the port, also can drive from container. Thenuse the bucket prop up the machine to change the original tries. It's very convenient.
Special Request:
1.About the engine.
Also have a lot of customer have special request. For example, some customer like freigh famous brand engine. It's no problem. We can meet your requirment. We also can provide fou the freign engine. Such as,Commins engine, Perkins engine. All is available.
2. Air-condition
Some customer live in hot and cold for long time place. So, we can configuate air-condition for u in cab. Let u have a confortable working envirment. Improve working efficiency.
3. Controls Syetem
Our backhoe loader is machinery operation now. But if u like joystick stype. We also can provide.
4.Machine Maintenance
If use our domestic engine, maybe you worry about the engine appear problem. And can't purcahse engine parts. But don't worry. We will delivery to u the four parts of the engine.Include air filtration, oil filtration, cylinder tube, cylinder pad. And as long as change machine oil often, fliter and so on parts. The machine can't appear problem for 5 years.
