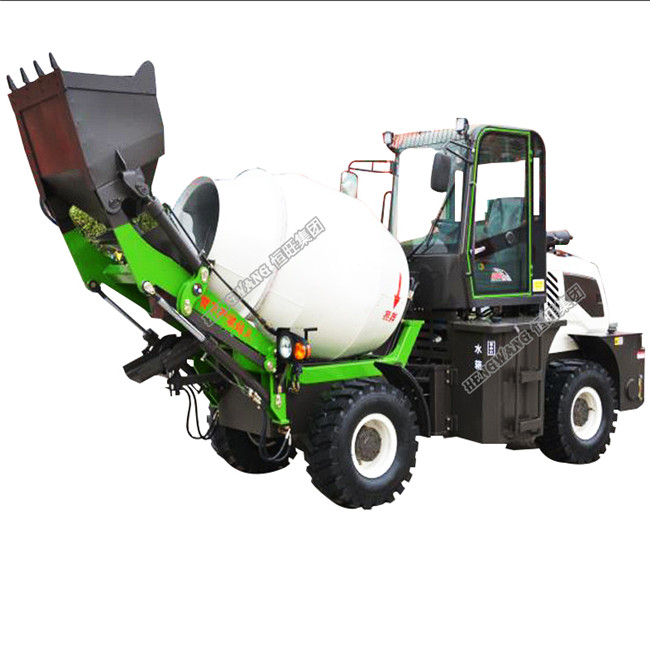

Mini self loading concrete mixer truck with drum and cab rotating together self feeding concrete mixer truck
Click on the image to view the original image
Product： views：4Mini self loading concrete mixer truck with drum and cab rotating together self feeding concrete mixer truck
Branch： hengwang
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 05:54
  Negotiated
Product Details
Overview
Quick Details
Power(W):
78KW
Weight:
111500
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops
Condition:
New
Place of Origin:
china
Brand Name:
hengwang
Dimension(L*W*H):
6350*2510*2850
Certification:
iso
UNIQUE SELLING POINT:
Low fuel consumption
Product name:
Concrete Mixer Truck
Driving type:
4 Wheel Driver
Actual stirring capacity:
2.4m3
Rated power:
78kw/2400 kw/r/min
running speed:
24kw/h
Min steering radius:
4500mm
Maximum load capacity:
5600kg
The wheelbase:
2300mm
Bucket capacity:
0.5m3
Keywords:
Concrete Pump Truck Mini
Supply Ability
Supply Ability:
10000 Set/Sets per Year Self loading concrete mixer truck sales in Philippines market
Packaging & Delivery
Packaging Details
FCL FOR Self loading concrete mixer truck sales in Philippines market
Port
Qingdao
Lead Time:
Quantity(Sets)1 - 1 >1
Est. Time(days)7To be negotiated
Product Description

Mini self loading concrete mixer truck with drum and cab rotating together self feeding concrete mixer truck

Combine concrete truck mixer with concrete mixer, self loading concrete mixer can automatic feeding, metering, and mixing to discharge, and more, it can realize the transportation and site construction operations, which greatly improves the work efficiency, reduce production cost and time.Self loading concrete mixer truck sales in Philippines market

Advantage:Self loading concrete mixer truck sales in Philippines market

.1. Italy leading design, automatic feeding mixing system
.2. Simple and convenient operation1.2CBM self loading concrete mixer truck
.3. High efficiency output, save time and labor, save cost
.4. The perfect combination of mixing truck and loading car.

Actual stirring capacity
2.4m³
Rotary drum capacity
2.3m³
Degree of bias
16°
Rotational speed
10-20r/min
Direction of rotation
Feed:clockwise output:counter clockwise
Mixing drum blade
Two sets of spiral and four sets of auxiliary blades
Slump of concrete
70-260mm
Hydraulic Power Transmission System
Pump model
CBGV-4025
Hydraulic motor model
BMSS-250
Reducer ratio
01:24
The main performance parameters of the chassis and the engine
Engine type/displacement
CF4B68G-Z-13B2/CF4C100T-Z-13B2
Model
Straight injection type four stroke water cooled supercharged diesel engine
Rated power
 78kw/2400 kw/r/min
Max torque
380/1500-1800 N.m/r/min
 380/1500-1800 N.m/r/min
Max running speed
24kw/h
Min steering radius
4500mm
Climbing capacity
26
Tire
16/70-20
Driving way
4*4
Weight
5550kg
Maximum load capacity
5600kg
Whole machinery weight
11150kg
Overall size
6350*2510*2850mm(L*W*H)
The wheelbase
2300mm
Bucket capacity
0.5m³
Detailed Images
Our self-loading concrete mixer truck, with different mixing capacity, like 1.2cbm, 2.0cbm, 2.4cbm, 3.2cbm, 4.0cbm has been exported to many countries. Our factory has passed ISO 9001, and our machine has CE certificate.
