- Machine Weight:
- 3300kg
- Dimension(Long * Breadth * High):
- 4800*1400*2350mm
- Warranty:
- 1 Year
- After-sales Service Provided:
- Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts, No after-sales service, Engineers available to service machinery overseas
- Applicable Industries:
- Farms, Home Use, Retail, Construction works , Energy & Mining
- Condition:
- New
- Brand Name:
- HW
- Place of Origin:
- Shandong, China
- Type:
- Front Loader
- Moving Type:
- Wheel Loader
- Certification:
- CE ISO
- Hydraulic Cylinder Brand:
- MOOG
- Hydraulic Pump Brand:
- Parker
- Hydraulic Valve Brand:
- KYB
- Engine Brand:
- CHANGCHAI
- UNIQUE SELLING POINT:
- High load Moment
- Power(W):
- 34kw
- Bucket capacity:
- 0.55m3
- Moving type:
- wheel loader
- Engine powder:
- 34kw
- Dump distance:
- 750mm
- Wheel base:
- 2600mm
- Dump height:
- 2900mm
- Max.turning angle:
- 35+_1
- Capacity of load bucket:
- 0.55M3
- Minimum turning radius:
- 4400
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 30X30X40 cm
- Single gross weight:
- 60.0 kg
- Package Type:
- Standard export package or as your requirement ,for New Mini loader machine
- Lead Time:
Quantity(Set) 1 - 50 >50 Est. Time(days) 7 To be negotiated

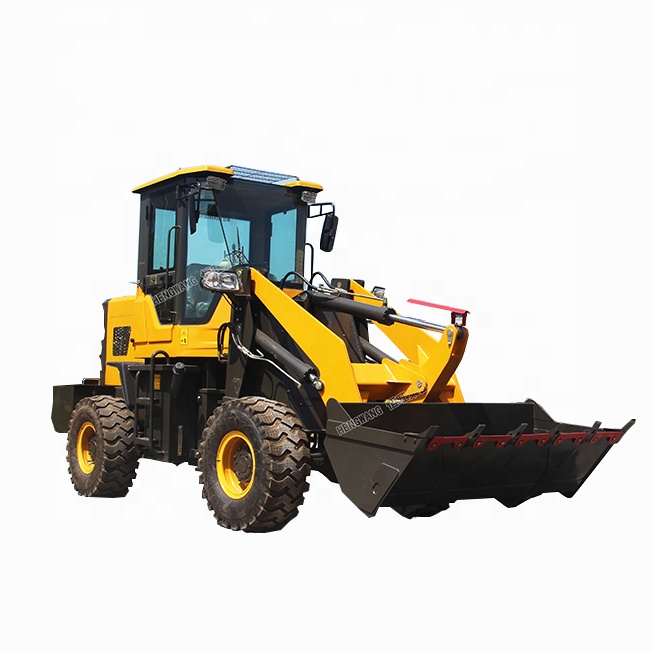

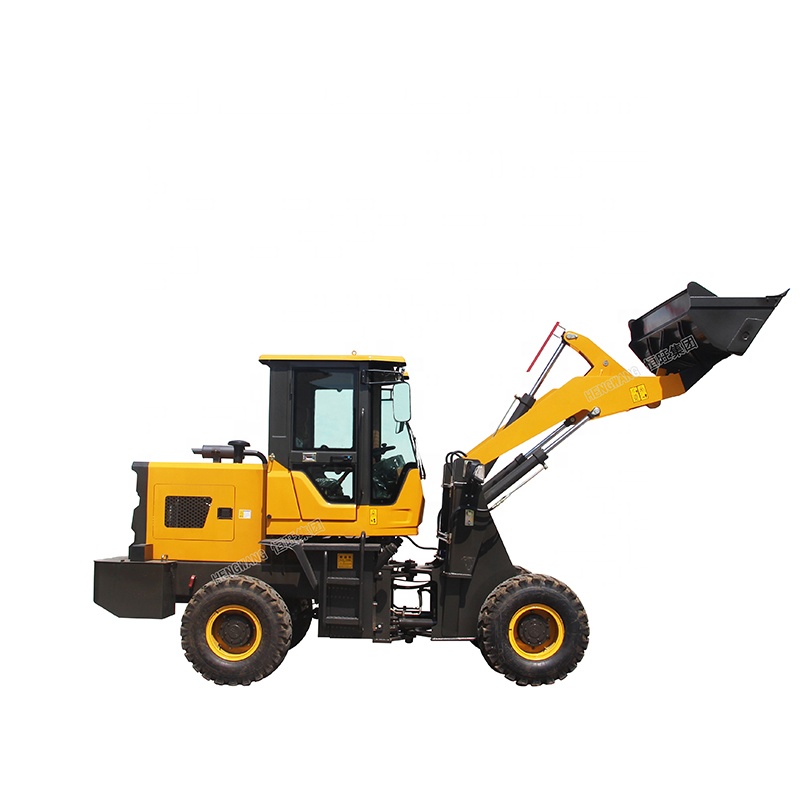

HW-918 Wheel loaderGood price small front end zl910 mini wheel loader
The loader machine adopts the complete machine is rationally distributed and compact; it is comfortable and convenient to handle,the turning radius is small and the cost performance is high. It is widely used in municipal administration, the construction of projects such as the building, the oil field, water conservancy,the forest farm, the military project, and so on.
It also can be used in carrying and leveling and can carry on the flexible and swift homework to scarp heap and waste residue of the large and medium-sized enterprise.
Match with high quality engine, low, low blow off of noise, driving force forceful, twist from when reserve is big. The driving force loader special use fixing an axis changes the gear speed change box, structure is compact, drive is efficient, structure stiffness is big, life-span is long.
The dyadic center equidistance hinge joint fleet of carriage, makes turn the radius is small, the expedient function is good.The drive's cab, wide vision, air-conditioning, operation environment sealing off subtraction vibrating, allocating are comfortable, safe. Various machines and tools such as may select and use for –in-one bucket, breaking a hammer to pieces, the function are especially all in readiness.
SPECIFICATIONS FOR WHEEL LOADER | ||||||
Model | HW-918 | Total time | 12s | |||
Rated capacity | 0.55m3 | Pattern | 3-element single stage | |||
Rated load | 800kg | Number of gear | 2 forward, 2 reverse 2 | |||
Transporation | 4800*1400*2350mm | Max. travel speed | 24km/h | |||
Dump height | 2900mm | Parking brake type | Soft axle control, outside bunch drum typ | |||
Dump distance | 750mm | Engine model | four cylinder | |||
Wheel base | 2000mm | Rated power | 34kw | |||
Tread | 1440mm | Rated speed | 2300 r/min | |||
Max.breakout force | 36KN | Machine weight | 2600kg |
One unit packing in a 20'GP container. Three unit in a 40'HQ container. We will use iron wire fixed on container. It's very stable.
