Product Description

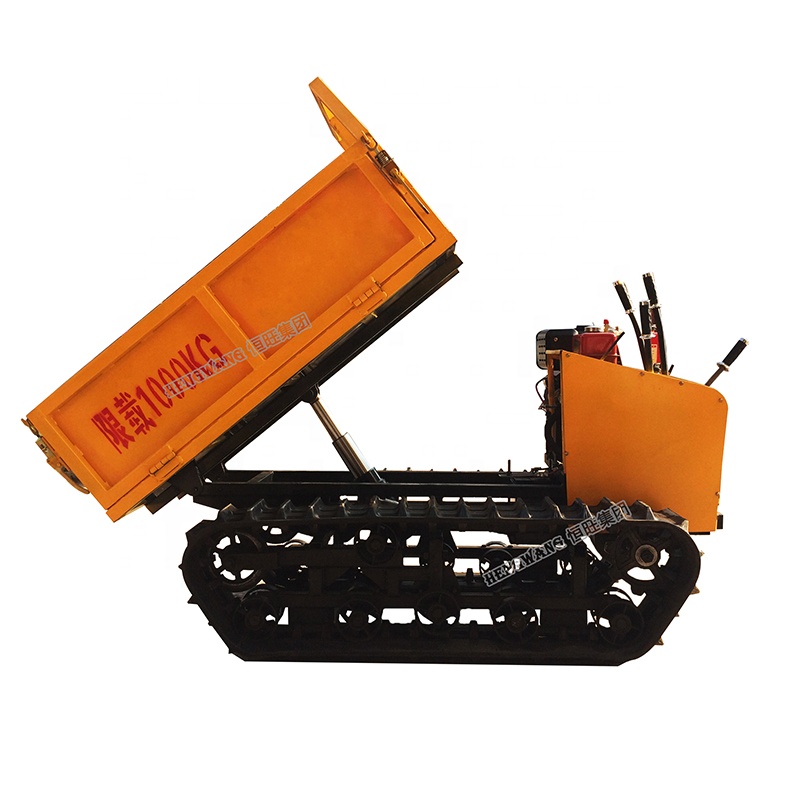

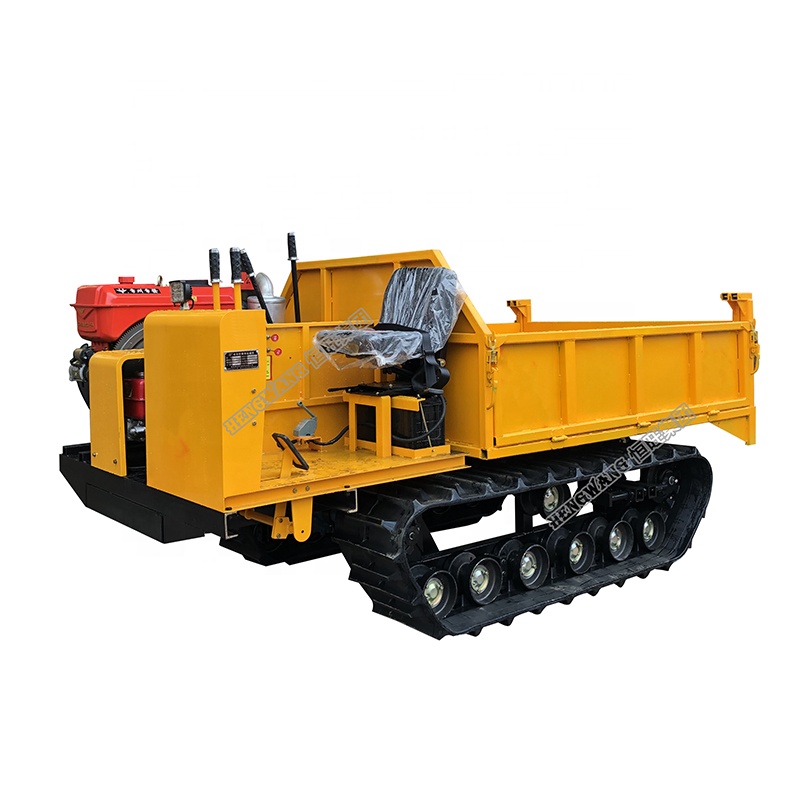

Crawler DumperSelf-loading mini dumper truck transporter crawler
Free crawler transporter in mud, icy roads, dump design, crawler walking, motor to walk, a great deal of extended use power. Specific size can be customized according to demand. Carrying capacity is strong, climbing ability, simplicity of operator, maintenance easy.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
SPECIFICATIONS FOR 2 TON CRAWLER DUMPER | ||||||
The machine weight | 1400kg | Ability to cross barrier | 30cm | |||
Max. rated quality | 2000kg | Overall size | 340cm*160cm*120cm | |||
File position | Auxiliary transmission +3 forward +1 | chassis | 195cm*160cm*45cm | |||
Speed | reverse gear Fastest:8kw Slowest:0.6kw | Diesel engine type | WL-28 | |||
Carriage size | 1.6m*2.0m(Customizable) | Diesel engine power | 20.24Kw/2200r/min | |||
Climbing ability | 28o | Minimum floor height | 25cm | |||
Engine power | 28HP | Cargo box size | 180cm*160cm*40cm(Customizable) | |||
Maximum horizontal load | 2000kg | Maximum slope load | 1200kg | |||
Travleing speed | Slowest:1.2km/h Fastest:6km/h | Obstacle surmounting ability | maximum 20 degree slope, vertical height 20cm obstacle | |||
Depth of water wading | 40cm | Depth of mud involved | 20cm | |||
