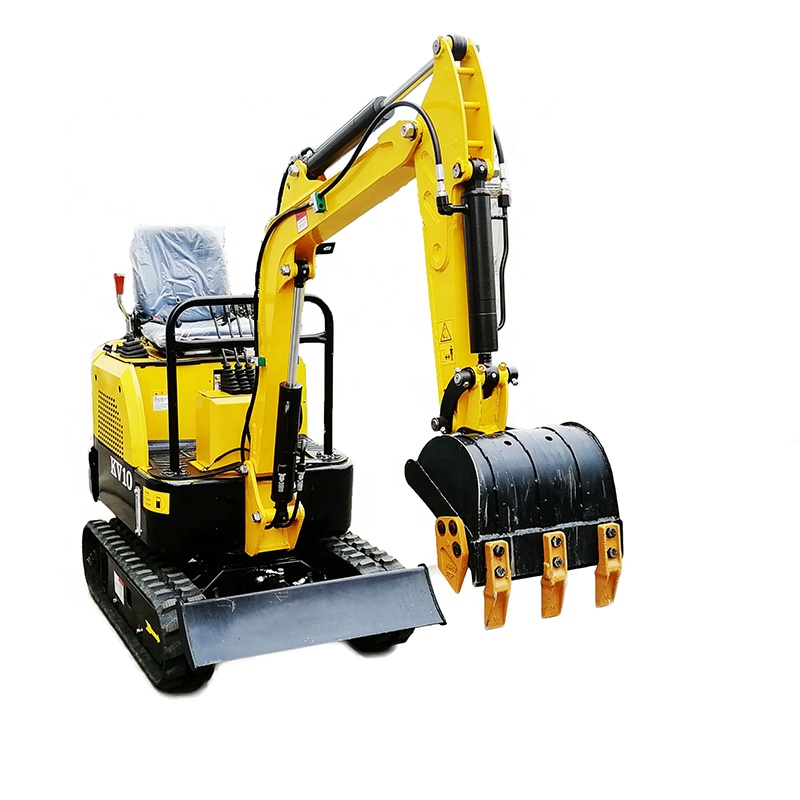

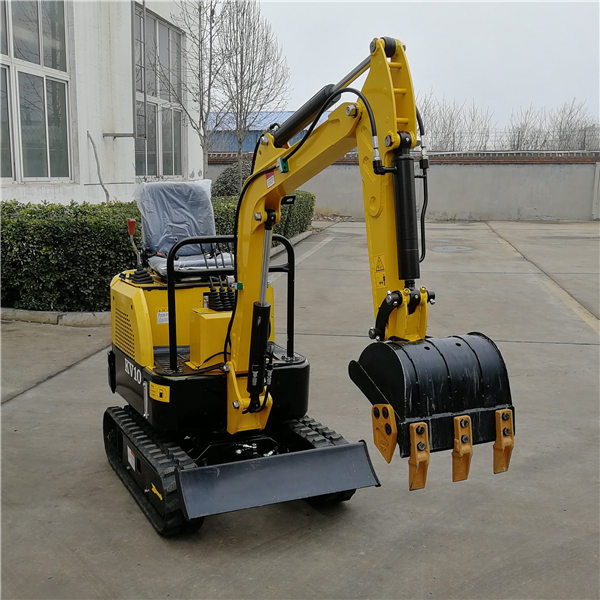

New cheap mini long arm small hydraulic excavator

Click on the image to view the original image

Product：	views：11New cheap mini long arm small hydraulic excavator
Branch：	HW
Size：	30X40X50 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 05:55

Product Details

Overview

Quick Details

Bucket capacity:: 0.028m3

Operating Weight:: 860kg

Rated Speed:: 2km/h

Warranty:: 1 Year

After-sales Service Provided:: Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts, No after-sales service, Engineers available to service machinery overseas

Applicable Industries:: Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction works

Place of Origin:: Shandong, China

Brand Name:: HW

Condition:: New

Moving Type:: Crawler Excavator

Maximum Digging Height:: 2650mm

Maximum Digging Depth:: 1650mm

Max Digging Radius:: 2900mm

Certification:: ISO

Hydraulic Cylinder Brand:: YUKEN

Hydraulic Pump Brand:: HYDAC

Hydraulic Valve Brand:: KYB

Engine Brand:: CHANGCHAI

UNIQUE SELLING POINT:: High digging power

Power(W):: 8.6kw

Color:: Yellow

Brand name:: HengWang

Working pressure:: 16Mpa

Digging up capacity:: 25KN

Power:: diesel engine

Rated power:: 8.6KW

Backhoe bucket capacity:: 0.028M3

Displacement:: 6.8ml/r

Length of crawler:: 180mm

Packaging & Delivery

Selling Units:: Single item

Single package size:: 30X40X50 cm

Single gross weight:: 60.0 kg

Package Type:: small four excavator packing within container

Lead Time:

Quantity(Set)	1 - 24	>24
Est. Time(days)	10	To be negotiated

Promotion

Product Description

HW-10 model exacavatorNew cheap mini long arm small hydraulic excavator

1.New style HW-12 is upgrades of HW-10. The following improvements have been made on the basis of HW-10:
(1)Strengthening of the main parts of the whole machine structure. The part of chassis lengthen by 15cm. When digging, no longer skip head.The stability improved more.
(2)Motor displacement is increased,reduction of internal discharge,increase torque.It completely solve the phenomenon of climbing and turning in situ.
(3)The engine reduce rotation rate(3300~3000 r/min). Alleviate the continuous rise of oil temperature,improved digging force.
(4)The width of caterpillar from 130mm widen to 180mm. Have more strong stability. Equipped with hydraulic oil radiator and respirator, strong fan, can be continuous work.HW-12 model is the most mature and perfect one in the current domestic system.
2.This product widely apply to vegetable greenhouse,fruitland nurseries,farmland leveling land, digging ditch,etc. Construction in narrow space. It's the preferred tool to replace the labor force.

SPECIFICATIONS FOR MIMI EXCAVATOR
MODELS	HW-10	Backhoe bucket height	1850mm
TOTAL OPERATING WEIGHT	860kg	Length of crawler	1210mm
Transporation dimension(LWH)	27709251000mm	Width of crawler	180mm
Max. Digging force	7.2KN	Rated powder	8.6kw
Backhoe bucket capacity	0.028m3	Max.travel speed	2km/h
Digging up capacity	25KN	Max.digging radius	2900mm
Rotating speed	12rpm	Max.clmib capability	30^o
Max.Digging depth	1650mm	Max. lift height of dozer blade	345mm
Max.Digging height	2650mm	Max.digging depth of dozer blade	255mm
